Chapter 2: Hardware installation

 | 13

Z490GTA

HYBRID_CNVI: M.2 (E Key) Socket (M.2 (E Key) wireless card is not provided)

•   Support M.2 socket 2230 type module.

•   Supports

WiFi/ Bluetooth

 module and Intel® CNVi (Integrated WiFi/ BT).

Note

»

When using SATA SSD module on M2M_32G_1 slot, the SATA_3U/ 3L connector will be disabled.

Install an Expansion Card

You can install your expansion card by following steps:

•   Read the related expansion card’s instruction document before install the expansion card into the

computer.

•   Remove your computer’s chassis cover, screws and slot bracket from the computer.

•   Place a card in the expansion slot and press down on the card until it is completely seated in the

slot.

•   Secure the card’s metal bracket to the chassis back panel with a screw. (This step is only

for installing a VGA card.).

•   Replace your computer’s chassis cover.

•   Power on the computer, if necessary, change BIOS settings for the expansion card.

•   Install related driver for the expansion card.

Note

»

Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the

screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise

the screw may be damaged.

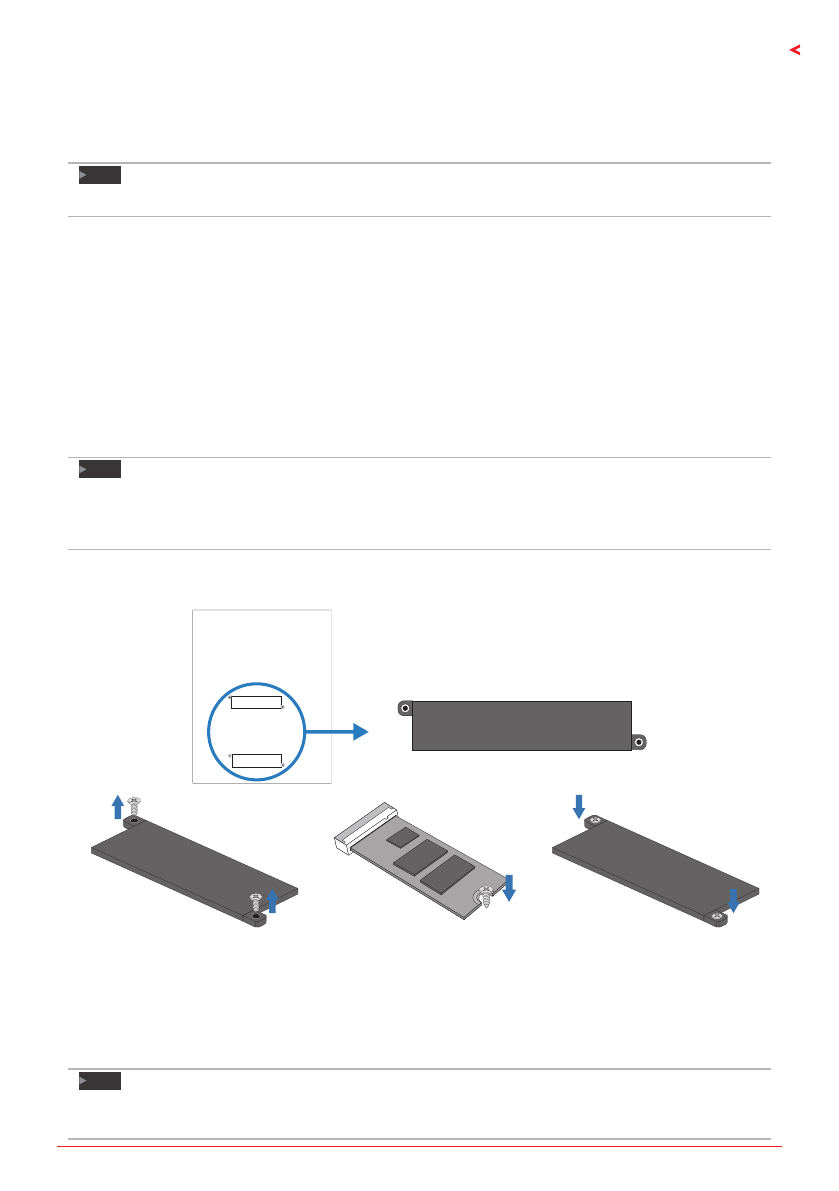

Install M.2 COOLING Heatsink

Steps of Removing the M.2 COOLING Heatsink:

Step 1:

There are two screws on the edge

of heatsink and unscrew them

before insert the M.2 SSD card.

Step 2:

Insert M.2 SSD card onto the

M.2 slot and screw it onto the

motherboard.

Step 3:

After installing the M.2 SSD card,

place the M.2 COOLING Heatsink

over the M.2 slot and fasten the

screws to fix the heatsink onto

the motherboard.

Note

»

Please follow the installation instructions of M.2 COOLING Heatsink and remove the M.2 COOLING

Heatsink to install the M.2 SSD card onto your motherboard.
