11

En

En
g

lis

h

•

When using a subwoofer of 70 W (2 Ω), be
sure to connect the subwoofer to the
violet and violet/black leads of this unit.
Do not connect anything to the green
and green/black leads.

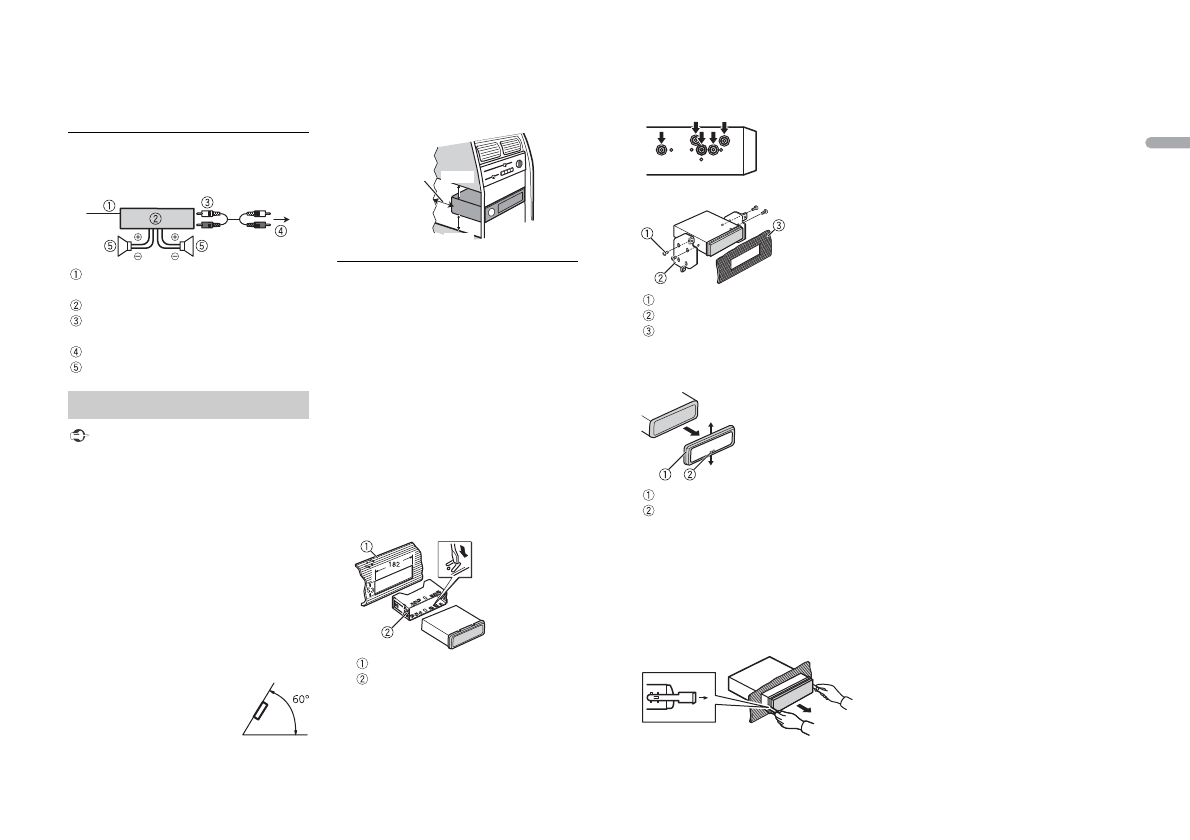

Power amp (sold separately)

Perform these connections when using the
optional amplifier.

System remote control
Connect to blue/white cable.
Power amp (sold separately)
Connect with RCA cables (sold
separately)
To rear output or subwoofer output
Rear speaker or subwoofer

 Important

•

Check all connections and systems before
final installation.

•

Do not use unauthorized parts as this
may cause malfunctions.

•

Consult your dealer if installation requires
drilling of holes or other modifications to
the vehicle.

•

Do not install this unit where:
– it may interfere with operation of the

vehicle.

– it may cause injury to a passenger as a

result of a sudden stop.

•

The semiconductor laser will be damaged
if it overheats. Install this unit away from
hot places such as near the heater outlet.

•

Optimum performance is
obtained when the unit is
installed at an angle of less
than 60°.

•

When installing, to ensure proper heat
dispersal when using this unit, make sure
you leave ample space behind the rear
panel and wrap any loose cables so they
are not blocking the vents.

DIN front/rear mount

This unit can be properly installed using
either front-mount or rear-mount
installation.
Use commercially available parts when
installing.

DIN Front-mount

1

Insert the mounting sleeve into the
dashboard.

For installation in shallow spaces, use
the supplied mounting sleeve. If there is
enough space, use the mounting sleeve
that came with the vehicle.

2

Secure the mounting sleeve by using a
screwdriver to bend the metal tabs
(90°) into place.

Dashboard
Mounting sleeve

•

Make sure that the unit is installed
securely in place. An unstable
installation may cause skipping or
other malfunctions.

Installation

Leave ample
space

5 cm

5 cm

DIN Rear-mount

1

Determine the appropriate position
where the holes on the bracket and
the side of the unit match.

2

Tighten two screws on each side.

Tapping screw (5 mm × 8 mm)
Mounting bracket
Dashboard or console

Removing the unit

1

Remove the trim ring.

Trim ring
Notched tab

•

Releasing the front panel allows easier
access to the trim ring.

•

When reattaching the trim ring, point
the side with the notched tab down.

2

Insert the supplied extraction keys
into both sides of the unit until they
click into place.

3

Pull the unit out of the dashboard.
