Installation/Connection

Connection

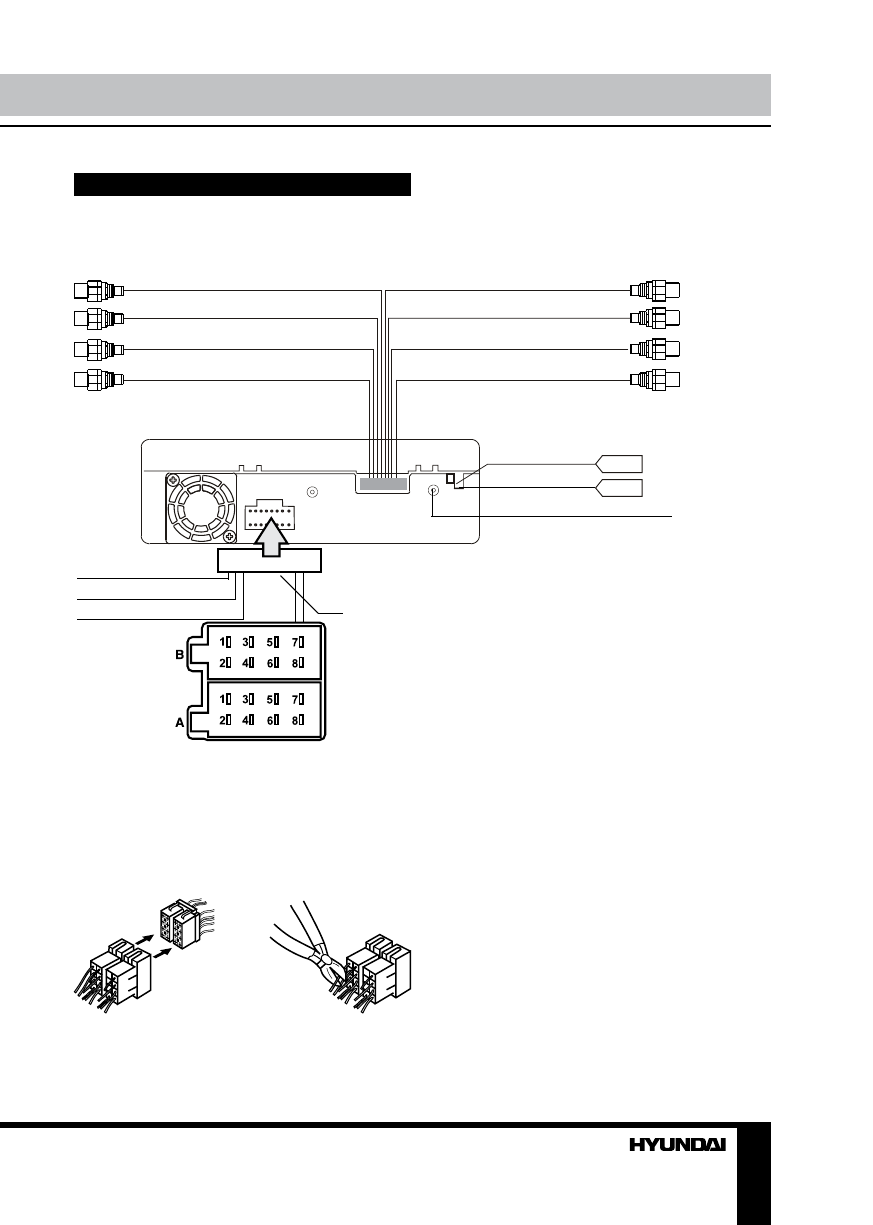

Connection diagram

Parking (brown)
Pink (lamp in)

TV antenna
Radio antenna

GPS antenna jack (option
for models equipped with
navigation function)

ISO connector

Reverse (orange)

12

AUX audio in

(black line with red and

white heads)

(black line with yellow

head)

(grey line with yellow

head)

(brown line with brown

head)

(grey line with yellow

head)

(brown line with yellow

head)

(light grey line with red

and white head)

(dark grey line with red

and white head)

AUX video in

Video out 2

Subwoofer

Video out 1

Reverse video in

Rear RCA

Front RCA

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.

1.

2.
