5

Installation/Connection

Installation

General notes

•   Choose the mounting location where the

unit will not interfere with the normal driving
function of the driver.

•   Before finally installing the unit, connect

the wiring and make sure that the unit works
properly.

•   Consult with your nearest dealer if

installation requires the drilling of holes or other
modifications of the vehicle.

•   Install the unit where it does not get in the

driver’s way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.

•   If installation angle exceeds 35° from

horizontal, the unit may not perform properly.

•   Avoid installing the unit where it would

be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater,
or where it would be subject to dust, dirt or
excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either

from ‘Front’ (conventional DIN Front-mount) or
‘Rear’ (DIN Rear-mount installation, utilizing
threaded screw Holes at the sides of the unit
chassis). For details, refer to the following
illustrated installation methods.

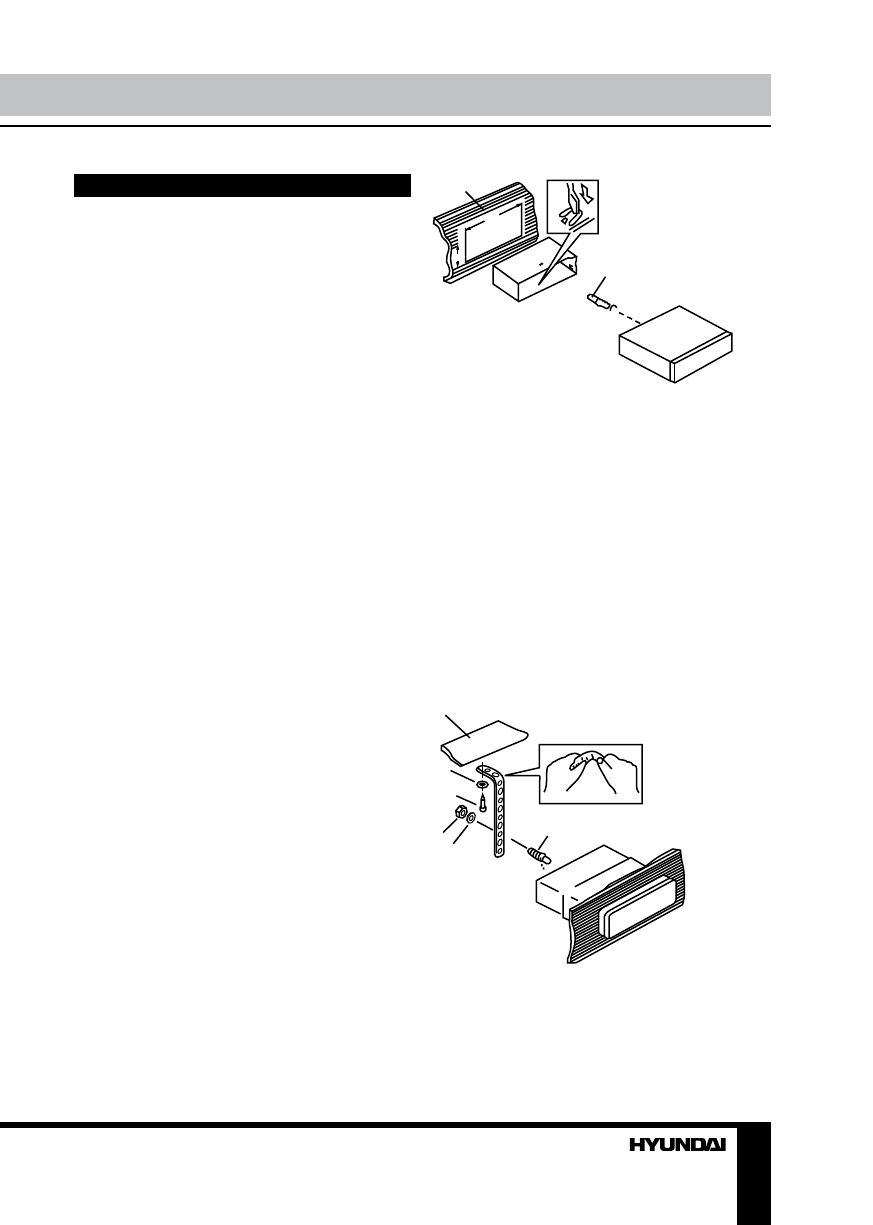

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 х 25 mm)
7. Metal strap
8. Flat washer

3

2

1

182

53

1. Install the sleeve into the dashboard;

ensure it is installed with the correct side and
there are no obstacles (wires, dashboard
elements, etc) for the unit installation.

2. After installing the sleeve into the

dashboard, bend tabs fitting to the size of the
dashboard to fix the sleeve in place.

3. Use the metal strap to fix the rear side of

the unit. Determine a place for fixing and install
the strap as shown in the picture. You can bend
the strap to the needed angle with your hands.

4. Make the necessary wire connections.

Ensure the connections are correct.

5. Install the unit into the sleeve and screw in

four frontal screws.

3

5

4

6

8

1

7

Dismantling the unit

a – Trim frame
b – Frame uninstall direction
c – Screws to be taken out
