6

Installation/Connection

в

б

а

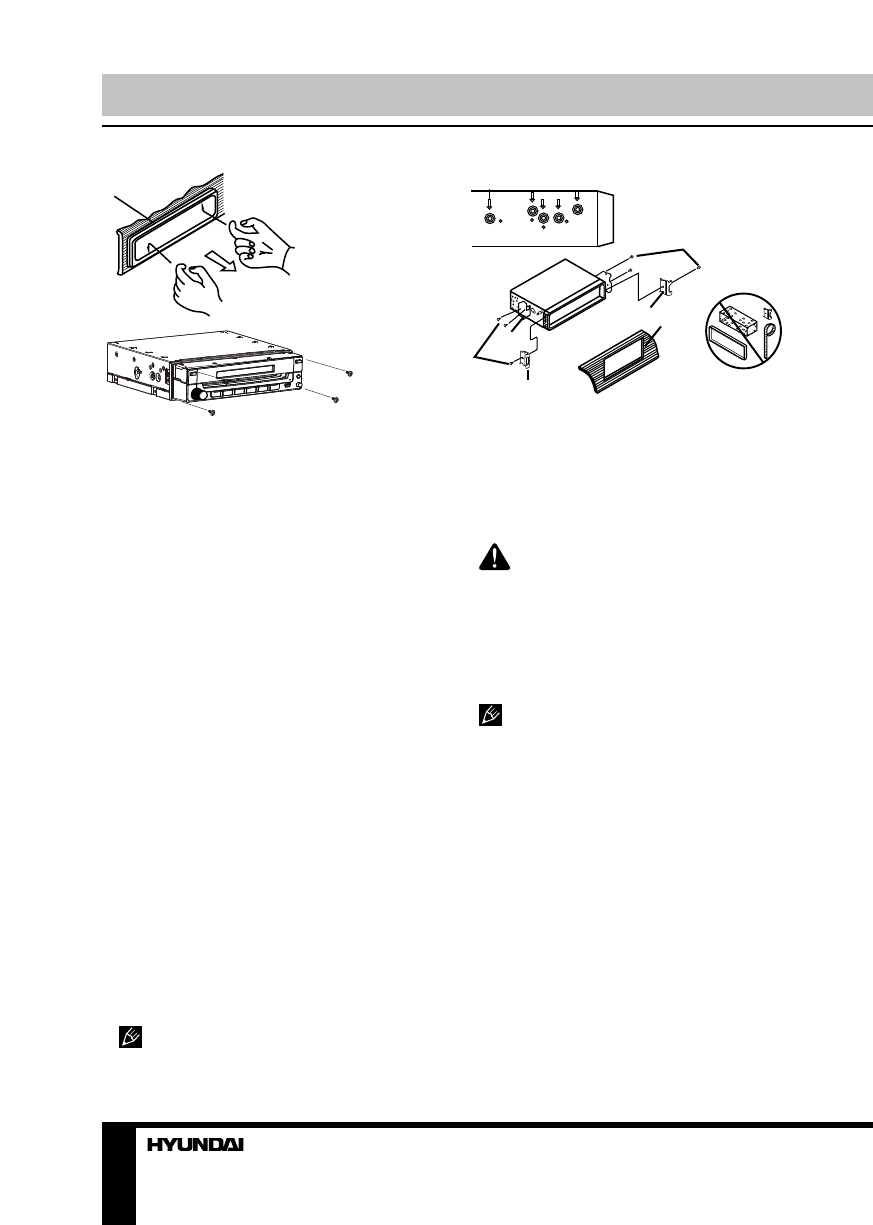

1. Switch off the unit and detach the front

panel.

2. Insert your fingers into the groove in the

front side of the trim frame (apply some effort to

detach the frame). Pull the frame to detach it.

3. Unscrew the four frontal screws nad pull

out the unit from the sleeve towards yourself.

Before detaching the unit, ensure it is not fixed

with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit

body and push it to fix it in place. This should
be done before installing the front panel;
otherwise you are not able to install the trim
frame. When the trim frame being installed,
the side with the groove should face down and
fixed first.

2. DIN rear-mount (Method B)

For this method, use the screw holes in the

lateral sides of the unit. Fix the unit with the
help of the factory radio mounting brackets.

1. Select a position in which the screw holes

of the brackets (3) are aligned with the screw
holes in the unit body, and screw in two screws
(2) in each side.

2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

  The outer trim frame and mounting

sleeve are not used for method of installation.

2

2

5

5

4

3

Detachable control panel

Insert the left lockers of the panel into the

fixing holes on the left side of the body, then
press on the right part of the panel until a click.

To detach the front panel, press REL button.

When it unfastens, carefully pull the panel out.

 The control panel can easily be

damaged by shocks. After removing it, place
it in a protective case and be careful not to
drop it or subject it to strong shocks. The rear
connector that connects the main unit and the
control panel is an extremely important part. Be
careful not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.

  If the control panel is dirty, wipe off the

dirt with soft, dry cloth only. And use a cotton
swab soaked in isopropyl alcohol to clean the
socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in

the included protective case when not in used
and carried away when you leave the vehicle
to deter theft.

Switch off the power of the unit. Detach the

front panel, then put it to the protective case
and take it with you.
