Installation/Connection

Installation/Connection

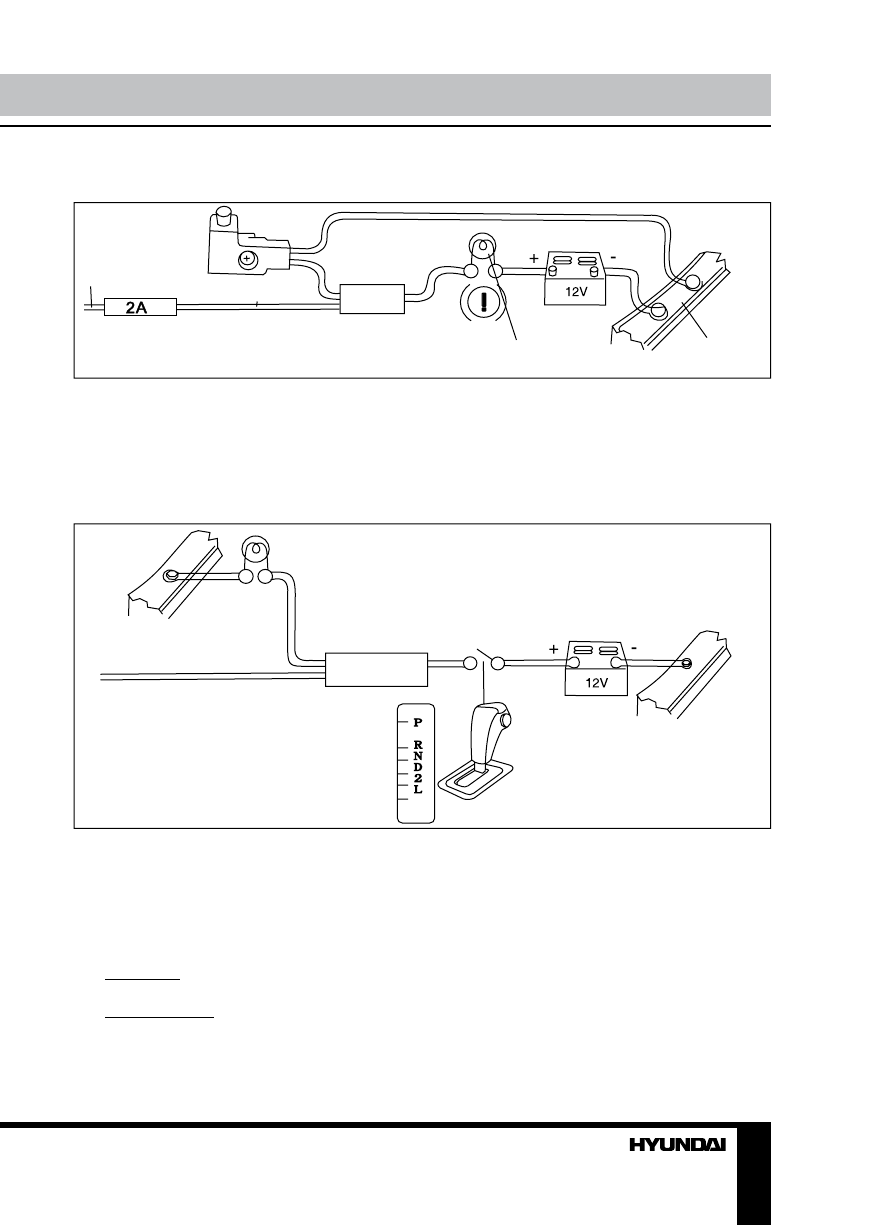

Parking wire connection

Parking brake lead

Brake light

Car frame

Battery

Brown Wire

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be

controlled by driving status, system setup and input video sources. When the car is moving ahead,
if the video disc is played, the screen shows “Disabled while driving”, and blank screen. The above
warning screen will prevent the driver from watching images.

Reverse driving cable connection

Car frame

Car frame

Rear view video camera lead

Reverse driving light

Gearbox

Orange wire

Battery

If the rear view video camera is connected, the unit automatically switches to CAMERA source

during reverse driving. The unit returns to the original work mode after the reverse driving is done.

Lamp in wire (option)

The lamp in wire is intended for performing adjustable and non-adjustable brightness of button

backlight of the unit front panel.

•  Adjustable: the wire should be connected to the regulator of brightness of the car dashboard.

Front panel backilght is possible only when the car dashboard lighting is switched on.

•  Non-adjustable: connected together with the yellow wire (battery +12 V); the front panel

backlight is active always when the front panel is attached to the unit.
