Installation/Connection

Operation

Using the ISO Connector

1.   If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2.  For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table above for speaker and
power cable connections.

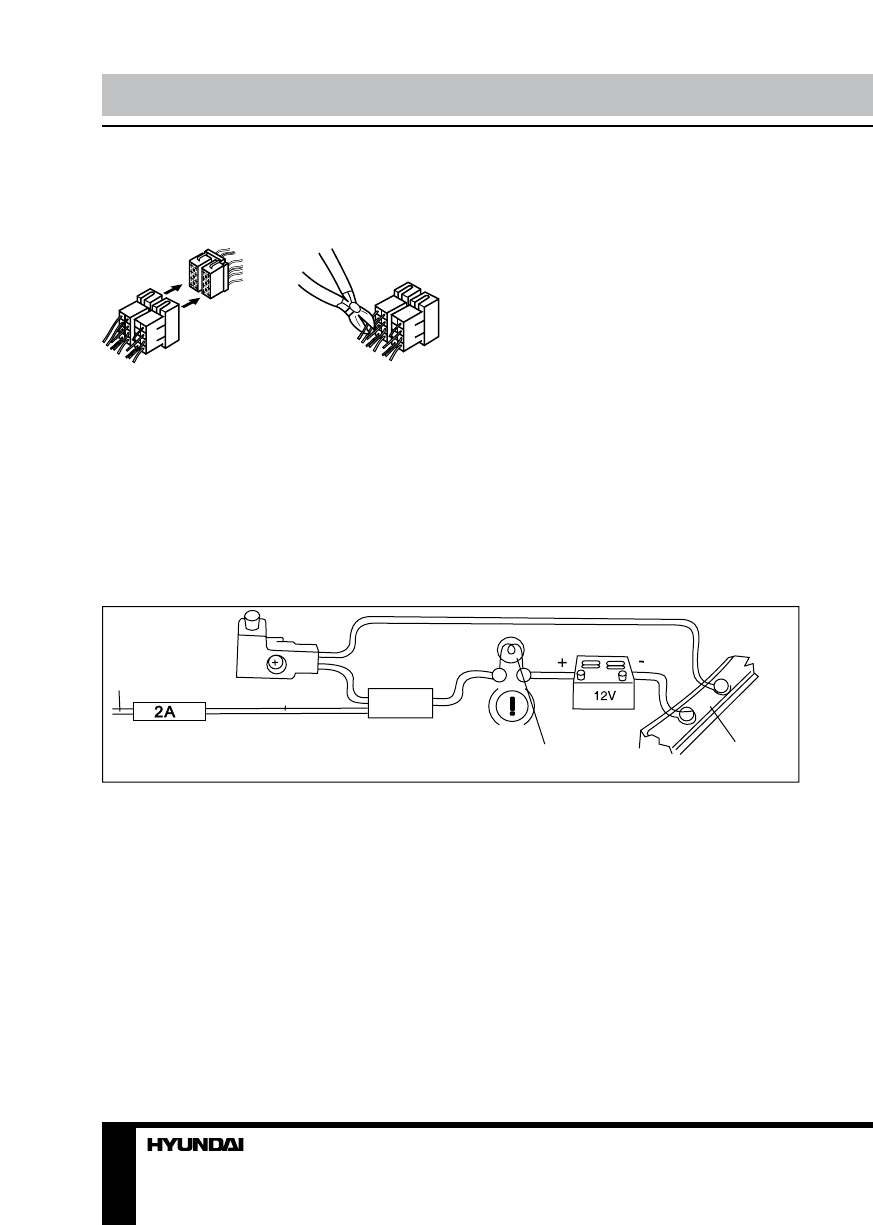

Parking wire connection

Parking brake lead

Brake light

Car frame

Battery

Brown Wire

If Parking cable is connected to hand brake

switch, the video display of the TFT monitor
will be controlled by driving status. When the
car is moving ahead, if the video disc is played,
the screen shows worning and blank screen.
The warning screen will prevent the driver from
watching images.
