7

Installation/Connection

Connection

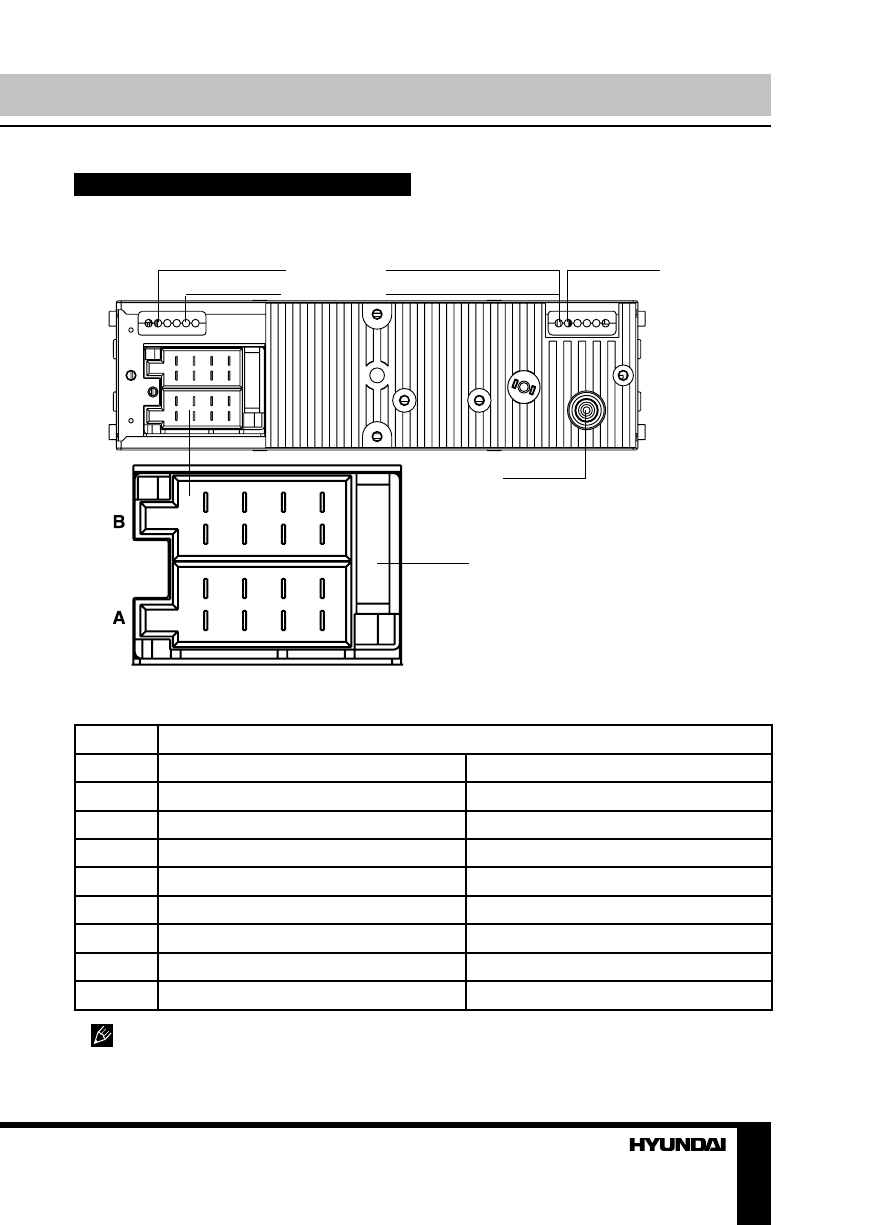

Connection diagram

ISO connection table

Location

Function

Connector A

Connector B

1

-

Rear right (+) - Purple

2

-

Rear right (-) - Purple/Black

3

-

Front right (+) - Grey

4

Battery +12V/Yellow

Front right (-) - Grey/Black

5

Power antenna/Blue

Front left (+) - White

6

-

Front left (-) - White/Black

7

Ignition key (+12V)/Red

Rear left (+) - Green

8

Ground/Black

Rear left (-) - Green/Black

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.

1

1

3

3

5

5

7

7

2

2

4

4

6

6

8

8

Parking wire (brown)

Video out (yellow)

Subwoofer out

ISO connector

Line out RCA (red=right)

Antenna jack

Fuse 15 A

Line out RCA (white=left)
