Installation Instructions

K1C Series

19

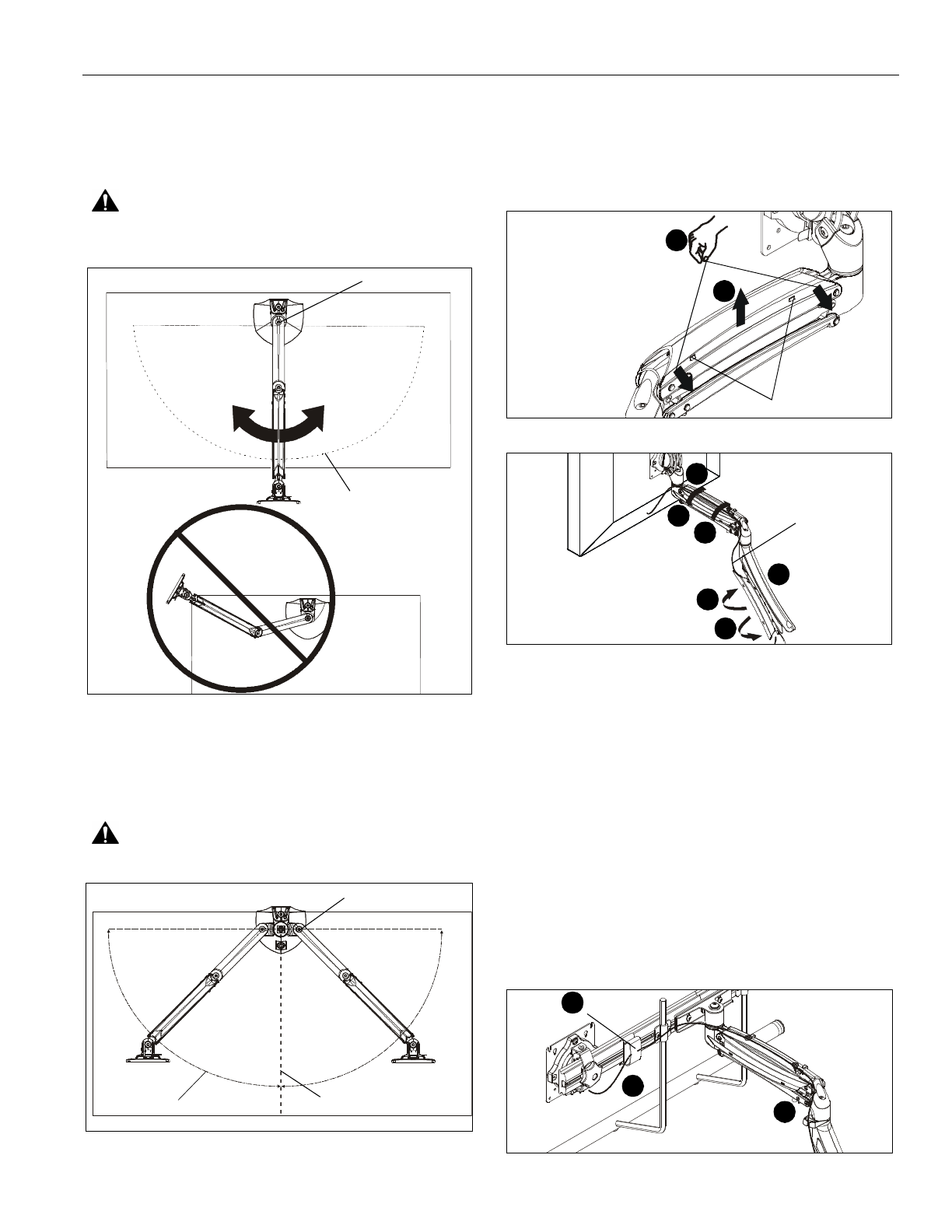

Pivot Adjustment Range

Single Arm Models

1.

Adjust arm angle as desired up to 90 degrees in either
direction. (See Figure 26)

WARNING:

Swinging the arm beyond 90 degrees may

result in the mount slipping off the desk causing serious
injury!

Figure 26

Dual Arm Models/K1C330/K1C420

1.

Adjust arm angles as desired within a 90 degree range from
the pivot point of the arm and a perpendicular centerline of
mount. (See Figure 27)

WARNING:

Swinging the arm beyond this range may result

in the mount slipping off the desk causing serious injury!

Figure 27

Cable Management

1.

Press insides of cable management covers at both ends to
unhinge tabs on either end of cable management cover on
upper arm. (See Figure 28)

2.

Lift cable management cover up until tabs are unhinged and
cover is in the “open” position. (See Figure 28)

Figure 28

Figure 29

3.

Route cables through cable management channels. (See
Figure 29)

IMPORTANT ! :

Be sure to leave enough slack in the

cables near display and arm joint to allow for full arm
articulation!

4.

Close cable management covers on monitor arm. (See
Figure 29)

5.

Repeat Steps 1-4 for lower arm.

Array Models

1.

Install array cable clips (J7) to back of array. (See Figure 30)

2.

Route cables through array cable clips (J7) as desired. (See
Figure 30)

3.

Route cables through arm cable clips as desired. (See
Figure 30)

Figure 30

(top view)

+/- 90 degrees range

of motion

pivot point of the arm

perpendicular centerline

90 degrees range
of motion per arm

pivot point of the arm

(top view)

cable management cover  tabs

1

2

2

2

4

4

3

3

cable (typical)

(J7)

2

1

3
