Installation Instructions

K1C Series

17

3.

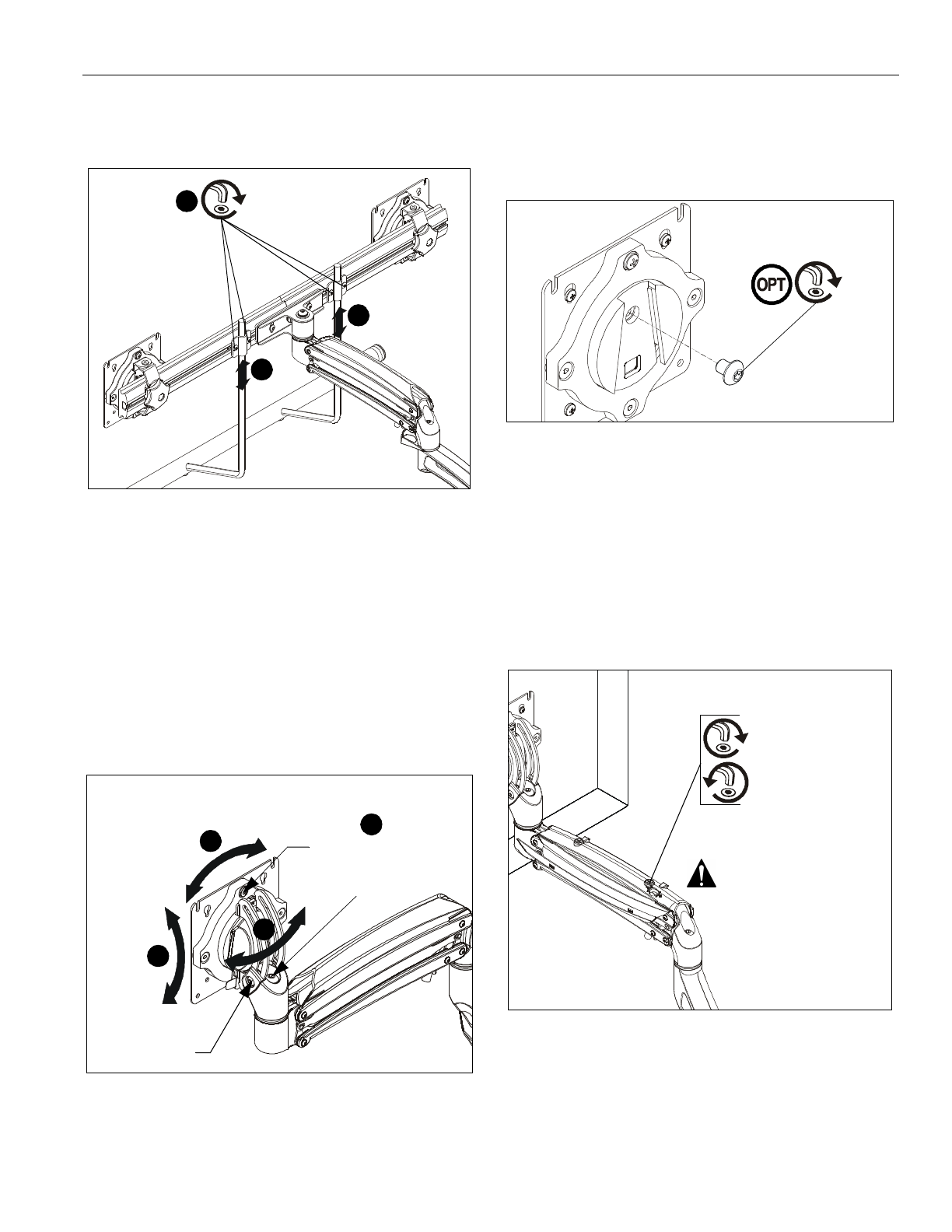

Position handle (J2) at desired height and secure by
tightening button head cap screws attaching handle
brackets to array. (See Figure 18)

Figure 18

Adjustments

Pitch Adjustment (non-array models)

1.

Adjust pitch to desired tilt position. (See Figure 19)

2.

Adjust pitch tension screw to change the adjustment
tension. (See Figure 19)

Pivot Adjustment (non-array models)

3.

Adjust pivot position as desired. (See Figure 19)

4.

Use 3/16” hex key (Q) to adjust pivot point tension screws
to change pivot adjustment tension. (See Figure 19)

Figure 19

Rotational Adjustment

NOTE:

(Optional) Rotational adjustment may be locked by

installing rotational locking screw (S) into back of
faceplate. (See Figure 20)

Figure 20

5.

The monitor may be adjusted 90 degrees in either direction
in order to provide a portrait view of the monitor. (See Figure
19)

6.

Use 3/16” hex key (Q) to adjust rotational adjustment screw
to adjust rotational tension. (See Figure 19)

Lift Arm Tension Adjustment

1.

Tension may be adjusted with tension adjustment screw
inside cable management cover and 1/8” hex key (N). Turn
clockwise to reduce tension or counter-clockwise to
increase tension. (See Figure 21)

Figure 21

3

3

3

x 4

pitch

pivot point

tension

tension

5

1

3

Rotational tension

6

(S)

Reduce tension

Increase tension

(lighter display)

(heavier display)

Do NOT over-tension
adjustment tension
screw.
