K1C Series

Installation Instructions

18

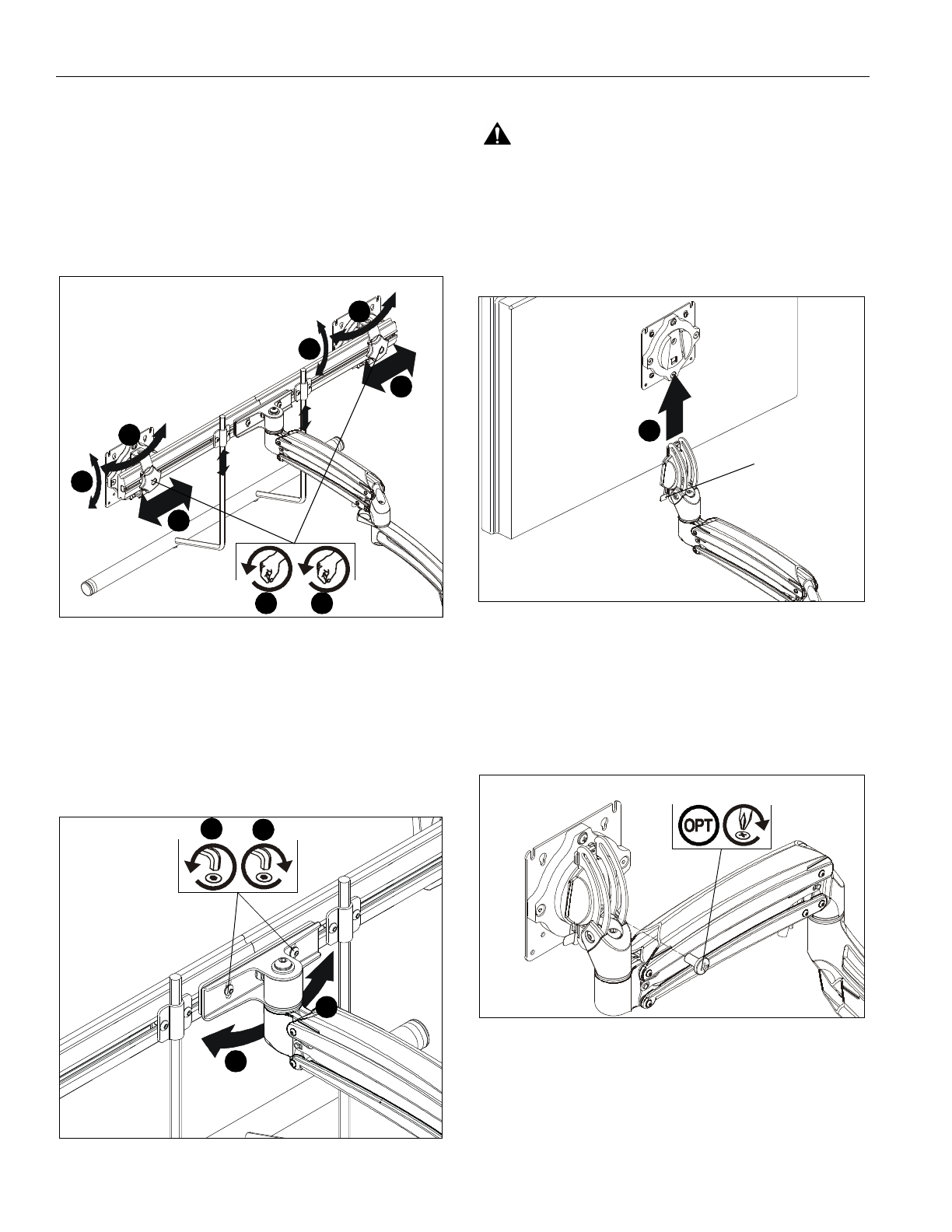

Adjustments - K1C22H models only

Display A djustments

1.

Loosen knobs securing faceplates to array. (See Figure 22)

2.

Slide displays laterally on array to adjust lateral shift. (See
Figure 22)

3.

Adjust pitch and pivot position as desired. (See Figure 22)

4.

Tighten knobs to secure faceplates in position. (See Figure
22)

Figure 22

Array Bar Roll Adjustment

1.

Loosen roll adjustment screws on back of array bracket.
(See Figure 23)

2.

Adjust roll of array bar as desired. (See Figure 23)

3.

Tighten roll adjustment screws on back of array bracket.
(See Figure 23)

Figure 23

Display Removal

WARNING:

Only remove display from mount when the

display can be lifted up from the mount! DO NOT remove
display unless the display is in the upright position! (See
Figure 24)

1.

Make sure display is in the upright position.

2.

Remove quick release faceplate from mount by pulling
quick release lever and sliding faceplate off mount. (See
Figure 24)

Figure 24

Display Removal Security Screw

NOTE:

In order to prevent display from being easily removed

from mount using the quick release lever, install
M4x4mm security screw (K) into lower hole on back of
faceplate. (See Figure 25)

Figure 25

2

3

2

1

4

3

3

3

1

3

2

2

quick release tab

2

(K)
