Installing Shim Spacers (if required)

IMPORTANT ! :

Do NOT install one or both shims (M)

unless required as damage to the FrameOne

™

 rail may

result!

6.

Remove two #10-32 x 7/8” flat head cap screws (N) holding
mount base to channel plate (L).

7.

Slide one or two shims (M) in between mount base and rail,
lining up holes on shim(s) with holes on plate and rail. (See
Figure 9)

8.

Use two #10-32 x 7/8” flat head cap screws (N) to reinstall
mount base to channel plate (L). (See Figure 9)

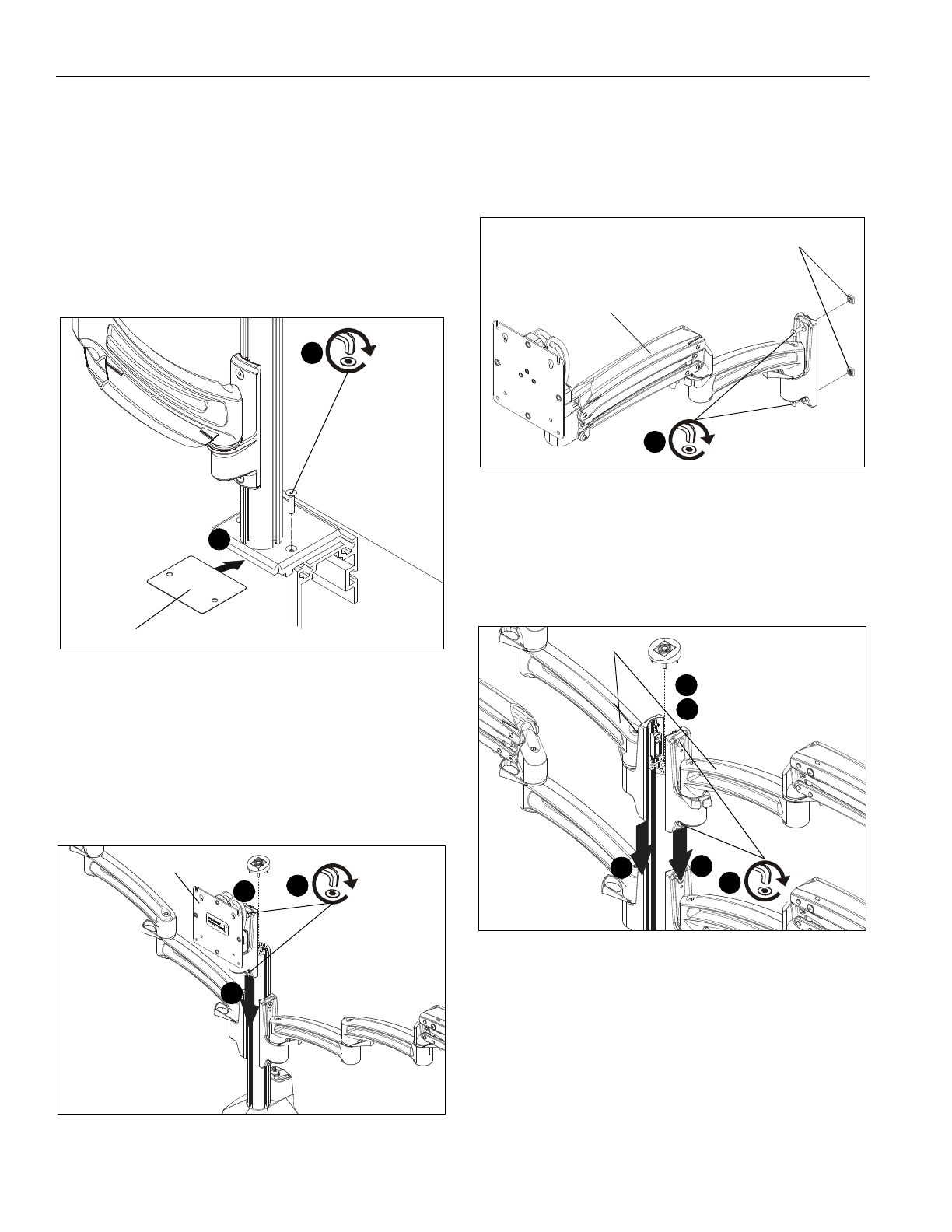

Figure 9

Installing Additional K1C330 Arm (K1C330
ONLY)

1.

Slide center mount (T) into column grooves at desired
mounting height. Tighten two screws on base of arm to
secure K1C330 center mount (T) to column (See Figure 10)

2.

Install column cap (V) to top of column.(See Figure 10)

Figure 10

Installing Additional K1C420 Arms (K1C420
ONLY)

1.

Loosely install two #10-24 x 5/8" flat head cap screws (W)
through holes on each K1C420 arm (U) and into two #10-24
square nuts (X). (See Figure 11)

2.

Remove column cap from column.

3.

Slide arms (U) into column grooves at desired mounting
height. Tighten two screws on base of each arm to secure
K1C420 arms (U) to column. (See Figure 11)

4.

After all arms have been installed, install re-install column
cap to top of column.

Figure 11

(M) x 1 or 2 (if required)

7

8

(N) x 2

(K1C330)

(T)

1

1

2

(U)

(W) x 2

1

(X) x 2

(U) x 2

3

3

2

3

(K1C420)

remove

4

re-install
