ENG

WARNING!

1.  Direct the remote controller toward the Air conditioner.
2.  Check that there are no objects between the remote control

and the Signal receptor in the indoor unit.

3.  Never leave the remote controller exposed to the rays of the

sun.

4.  Keep the remote controller at a distance of at least 1m from

the television or other electrical appliances.

•  This adjustment must be done while the appliance is

switched off.

•  Never position ”Flaps” manually, the delicate mechanism

might seriously damaged!

•  Never poke fingers, sticks or other objects in the air inlet or

outlet vents. Such accidental contact with live pants might
cause unforeseeable damage or hurt.

•  The following angle can not be selected for current models,

we express our apologies.


flashing

Signal receptor

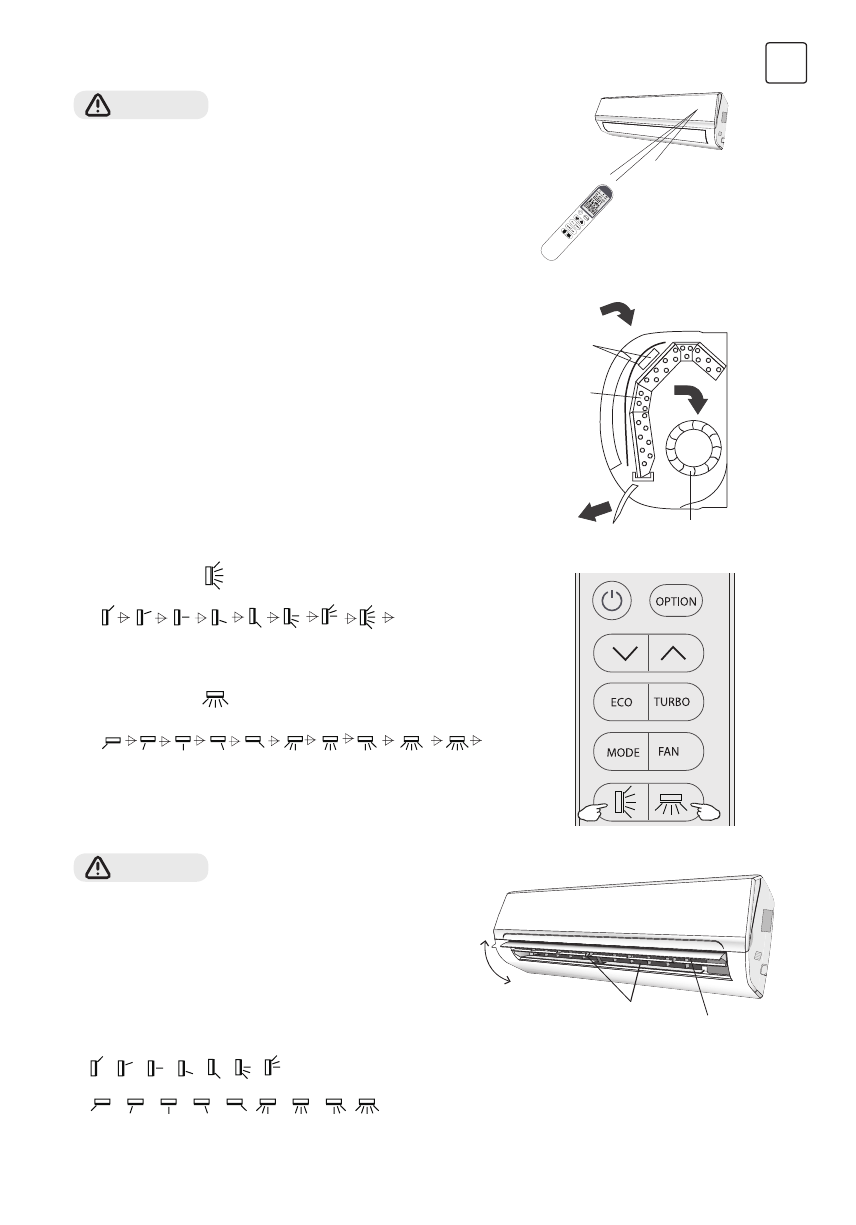

OPERATING INSTRUCTIONS

“Swing” control of the air flow

The air sucked by the fan enters from the grill and passes
through the filter, then it is cooled/dehumidified or heated
through the heat exchanger.

The direction of the air outlet is motorized up and down by
flaps, and manually moved right and left by the vertical
deflectors, for some models, the vertical deflectors could be
controlled by motor as well.

1.   Press the button

 to activate the FLAP ,

1. If press time interval is in 2 seconds, the swing will cycle as below

deactivate

2. If press time interval is over 2 seconds, it will be deactivate the air flow
is directed alternatively from up to down .In order to guarantee an even
diffusion of the air in the room.

2.   Press the button

 to activates the motorized deflectors

1. If press time interval is in 2 seconds  the swing will cycle as below

deactivate

flashing

2. If press time interval is over 2 seconds, it will be deactivate the air flow
is directed alternatively from left to right. (Optional function, depends
on the models).
The deflectors are positioned manually and placed under the flaps.
They allow to direct the air flow rightward or leftward.

Filter

Heat

Exchanger

Fan

“flaps”

“flap”

movement

Deflectors

WARNING!
