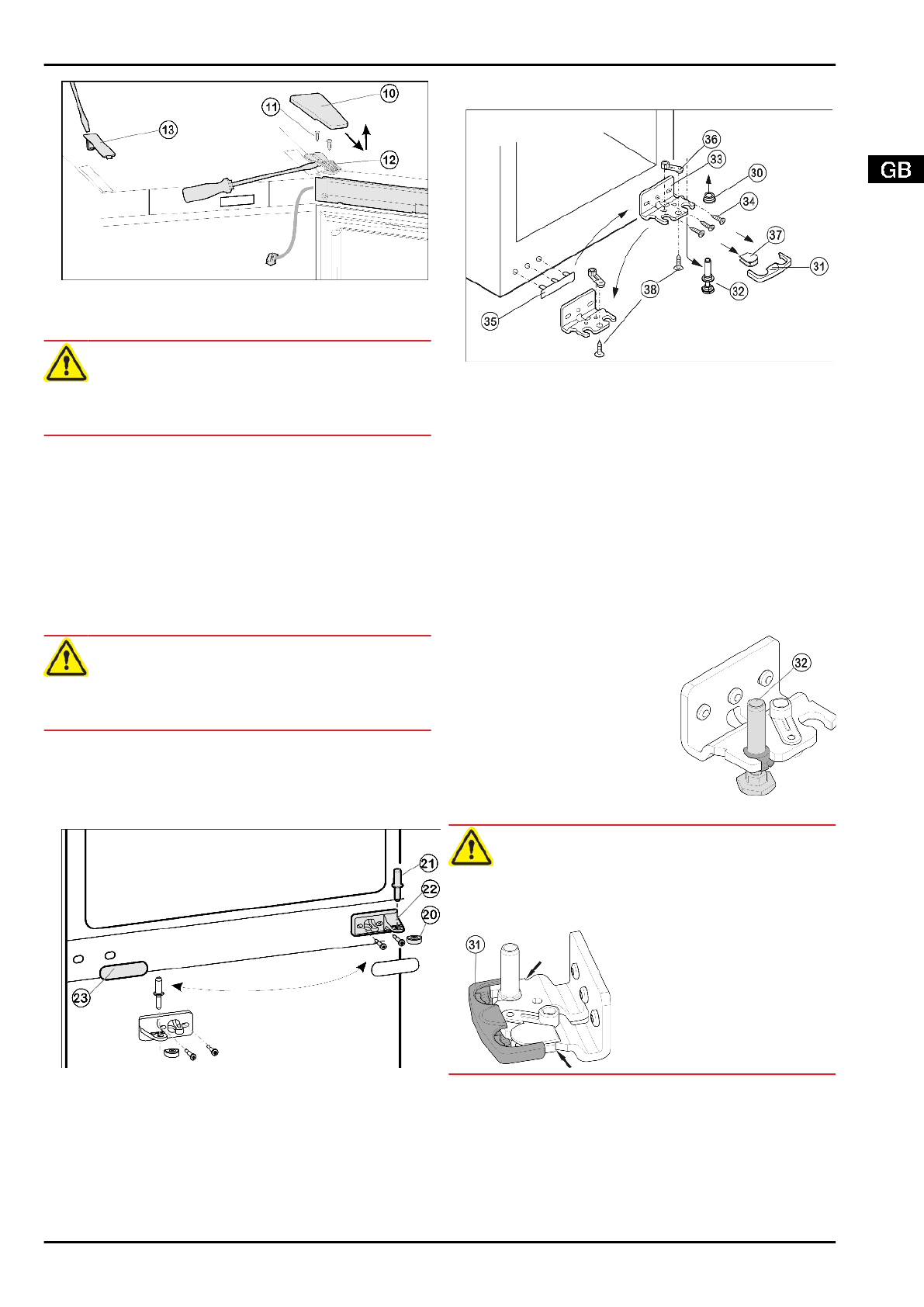

Fig. 5
u
Pull off the cover
Fig. 5 (10) forwards and upwards.
u
Lift off the cover
Fig. 5 (13).
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Undo the screws
Fig. 5 (11) all the way.
u
Lift and remove the door complete with turn hinge
Fig. 5 (12)
and cable. For release, possibly use a flat-blade screwdriver
to apply lever action under the turn hinge.
u
Set the door aside.
4.1.3 Detaching the lower door
u
Close the lower door.
u
Draw the middle bearing pin
Fig. 6 (21) out of the middle turn
hinge
Fig. 6 (22) and lower door.
u
Remove the plastic cap
Fig. 6 (20).
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Open the lower door.
u
Detach the middle turn hinge
Fig. 6 (22).
u
Lift off the lower door and set it aside.
4.1.4 Transferring the middle bearing elements
Fig. 6
u
Carefully detach the cover panel
Fig. 6 (23).
u
Turn the middle turn hinge
Fig. 6 (22) through 180° and screw
it firmly into place on the new hinge side (with 4 Nm).
u
Turn the cover panel
Fig. 6 (23) through 180° and snap it into
place again on the new handle side.
4.1.5 Transferring the lower bearing elements
Fig. 7
u
Draw the safety lock
Fig. 7 (31) forwards for removal.
u
Remove the cover
Fig. 7 (37).*
u
Fully retract the adjustable-height foot
Fig. 7 (32).
u
If necessary, tip the appliance back a little with the assistance
of a second person for removal of the bearing pin.
u
Pull out the bearing pin
Fig. 7 (32) downwards and forwards.
In so doing, pay attention to the hinge bush
Fig. 7 (30).
u
Unscrew the turn hinge
Fig. 7 (33) (3 Torx 25) Fig. 7 (34).
u
Unscrew the bearing part
Fig. 7 (36)(1 Torx 25), Fig. 7 (38),
transfer it to the opposite hole in the turn hinge and screw it
down again.
u
Carefully lift off and transfer the cover
Fig. 7 (35) on the handle
side.
u
Screw the turn hinge
Fig. 7 (33) firmly into place on the new
hinge side, possibly using a cordless screwdriver (with
4 Nm).
u
Tip the appliance back a
little again and re-insert the
bearing pin
Fig. 8 (32). The
notch has to point forwards.
u
Place the cover
Fig. 7 (37)
on the opposite side.*
Fig. 8
CAUTION
Risk of injury if the door tips!
u
The safety lock
(31) has to engage with the turn hinge at the
side so that the bearing pin and therefore the door are
secured.
u
u
Snap the safety lock
(31) onto the turn hinge again.
u
Put on the hinge bush
Fig. 7 (30).
4.1.6 Transferring the handles
u
Disengage the spring clip
Fig. 9 (41) from the upper door and
transfer it to the new hinge side.
u
Lift the stopper
Fig. 9 (40) out of the lower door bearing bush
and transfer it.
Putting into operation
5
