u

Press the soft stop bracket

 Fig. 5 (4) towards the door.

u

Fully  detach  the  cover

  Fig.  5  (5)  on  the  hinge  side  and

remove it.

u

Remove the faceplate

 Fig. 5 (1).

u

Using  a  screwdriver,  detach  the

cover  on  the  handle  side

Fig. 6 (6) and remove it outwards.

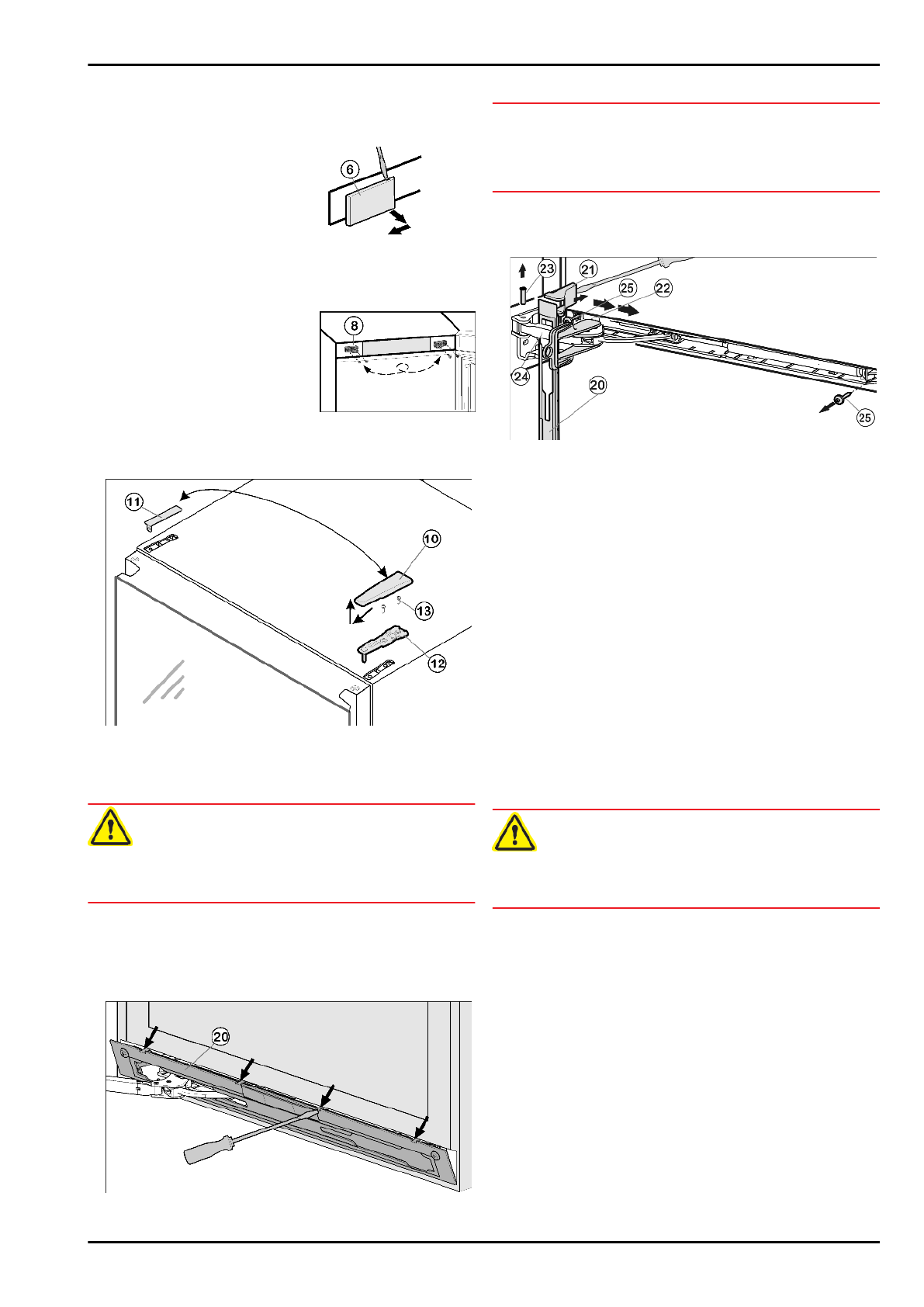

Fig. 6

u

Unscrew the soft stop unit (2x Torx® 15)

 Fig. 5 (7).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

u

Unscrew

the

bearing

element

  Fig.  5  (8),  turn  it

180°  and  transfer  it  to  the

opposite  side.  Possibly

make  preliminary  holes  with

a  bradawl  or  use  a  cordless

screwdriver.

Fig. 7

4.3.2 Detaching the upper door

Fig. 8

u

Close the upper door.

u

Pull off the cover

 Fig. 8 (10) forwards and upwards.

u

Lift off the cover

 Fig. 8 (11).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Unscrew  the  upper  turn  hinge

  Fig.  8  (12)(2x  Torx®  25)

Fig. 8 (13) and lift it off.

u

Lift off the upper door and set it aside.

4.3.3 Detaching the lower soft stop mechanism

Fig. 9

u

Open the lower door.

NOTICE

Risk of damage!

If the door seal is damaged, the door may fail to close properly

and the cooling will be inadequate.

u

Do not damage the door seal with the screwdriver!

u

Disengage and remove the faceplate

 Fig. 9 (20) using a flat-

blade screwdriver.

w

The faceplate is attached over the soft stop bracket.

Fig. 10

u

Slide  the  faceplate  forwards  over  the  soft  stop  bracket

Fig. 10 (24) in the direction of the appliance.

u

Snap the safety lock

 Fig. 10 (22) into the oblong hole.

w

The safety lock prevents the hinge from snap-closing.

u

Using  a  screwdriver,  lift  off  the  cover

  Fig.  10  (21)  from  the

outside and remove it in an outward direction.

u

If  necessary,  tip  the  appliance  backwards  with  the  assis-

tance of a second person.

u

Press the pin

 Fig. 10 (23) out from underneath.

u

Press the soft stop bracket

 Fig. 10 (24) towards the door.

u

Remove the faceplate

 Fig. 10 (20).

u

Unscrew the entire soft stop unit (2x Torx® 15)

 Fig. 10 (25).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

4.3.4 Detaching the lower door

u

Close the lower door.

u

Draw  the  middle  bearing  pin

  Fig.  11  (32)  together  with  the

washer

 Fig. 11 (34) out of the turn hinge and lower door.

u

Remove the plastic cap

 Fig. 11 (33).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the lower door.

u

Unscrew the middle turn hinge

 Fig. 11 (31) (2x Torx® 25).

u

Lift off the lower door and set it aside.
