4.1.5 Transferring the lower bearing elements

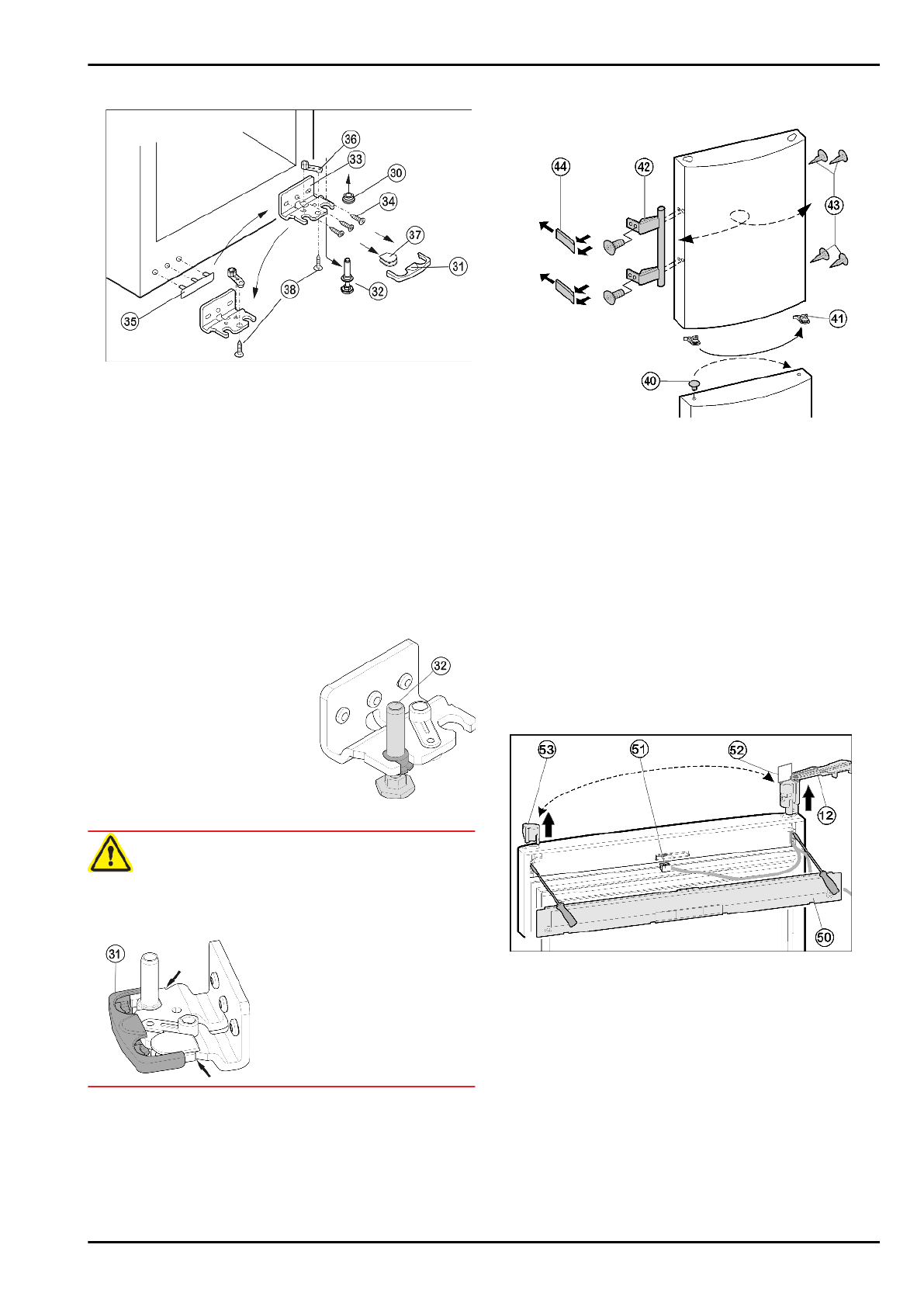

Fig. 7

u

Draw the safety lock

 Fig. 7 (31) forwards for removal.

u

Remove the cover

 Fig. 7 (37).*

u

Fully retract the adjustable-height foot

 Fig. 7 (32).

u

If  necessary,  tip  the  appliance  back  a  little  with  the  assis-

tance of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 7 (32) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 7 (30).

u

Unscrew the turn hinge

 Fig. 7 (33) (3 Torx 25) Fig. 7 (34).

u

Unscrew the bearing part

 Fig. 7 (36)(1 Torx 25), Fig. 7 (38),

transfer it to the opposite hole in the turn hinge and screw it

down again.

u

Carefully  lift  off  and  transfer  the  cover

  Fig.  7  (35)  on  the

handle side.

u

Screw the turn hinge

 Fig. 7 (33) firmly into place on the new

hinge  side,  possibly  using  a  cordless  screwdriver  (with

4 Nm).

u

Tip  the  appliance  back  a

little  again  and  re-insert

the  bearing  pin

 Fig. 8 (32).

The  notch  has  to  point

forwards.

u

Place  the  cover

  Fig.  7  (37)

on the opposite side.*

Fig. 8

CAUTION

Risk of injury if the door tips!

u

The safety lock

 (31) has to engage with the turn hinge at the

side  so  that  the  bearing  pin  and  therefore  the  door  are

secured.

u

u

Snap the safety lock

 (31) onto the turn hinge again.

u

Put on the hinge bush

 Fig. 7 (30).

4.1.6 Transferring the handles

u

Disengage  the  spring  clip

  Fig.  9  (41)  from  the  upper  door

and transfer it to the new hinge side.

u

Lift  the  stopper

  Fig.  9  (40)  out  of  the  lower  door  bearing

bush and transfer it.

Fig. 9

u

Detach  the  door  handles

  Fig.  9  (42),  stoppers  Fig.  9  (43)

and  pressure  plates

  Fig.  9  (44)  and  transfer  to  the  opposite

side.

u

When  fitting  the  pressure  plates  at  the  opposite  side,  pay

attention that they engage properly.

4.1.7 Fitting the lower door

u

Place  the  door  from  above  onto  the  lower  bearing  pin

Fig. 7 (32).

u

Close the door.

u

Place  the  plastic  cap

  Fig.  6  (20)  back  onto  the  middle  turn

hinge

 Fig. 6 (22).

u

Insert  middle  bearing  pin

  Fig.  6  (21)  through  middle  turn

hinge

 Fig. 6 (22) into the lower door.

4.1.8 Transferring the cable connection (upper

door)

Fig. 10

u

Using  a  screwdriver,  remove  the  cover

  Fig.  10  (50)  on  the

door.

u

Disconnect the plug connector

 Fig. 10 (51).

u

At  the  upper  door,  rotate  the  turn  hinge

  Fig.  10  (12)  in  an

outward direction, parallel to the door edge.

Putting into operation
