F0

 to

F9

-

The power failure symbol

shines.

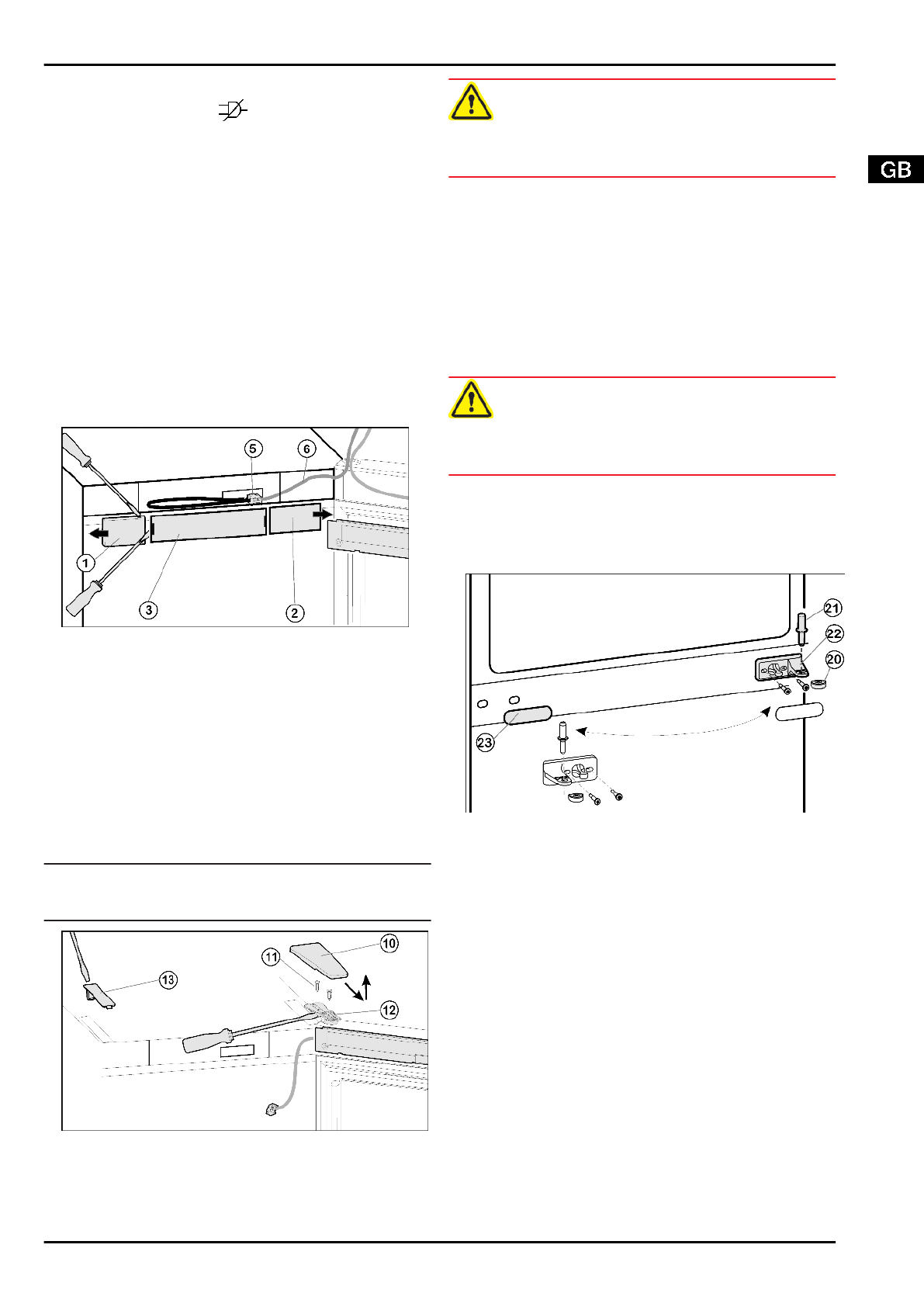

4 Putting into operation

4.1 Changing over the door hinges

You can change over the door hinges if necessary.
Ensure that the following tools are to hand:

q

Torx 25

q

Torx 15

q

Screwdriver

q

Cordless screwdriver, if necessary

q

Second person for fitting work, if needed

4.1.1 Undo the cable connection on the

housing.

Fig. 4

u

Open the upper door.

u

To  remove  the  cover  on  the  handle  side

  Fig.  4  (1):  disen-

gage  on  the  right  using  a  flat-blade  screwdriver  and  slide  it

outwards.

u

To remove the cover on the hinge side

 Fig. 4 (2): disengage

on  the  left  using  a  flat-blade  screwdriver  and  slide  it

outwards.

u

Remove  the  front  panel

  Fig.  4  (3)  using  a  flat-blade  screw-

driver.

u

Remove contact and disconnect plug connector

 Fig. 4 (5).

u

Detach grey cable

 Fig. 4 (6) from the guide.

4.1.2 Detaching the upper door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

Fig. 5

u

Pull off the cover

 Fig. 5 (10) forwards and upwards.

u

Lift off the cover

 Fig. 5 (13).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Undo the screws

 Fig. 5 (11) all the way.

u

Lift and remove the door complete with turn hinge

 Fig. 5 (12)

and cable. For release, possibly use a flat-blade screwdriver

to apply lever action under the turn hinge.

u

Set the door aside.

4.1.3 Detaching the lower door

u

Close the lower door.

u

Draw  the  middle  bearing  pin

Fig.  6  (21)  out  of  the  middle

turn hinge

 Fig. 6 (22) and lower door.

u

Remove the plastic cap

 Fig. 6 (20).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the lower door.

u

Detach the middle turn hinge

 Fig. 6 (22).

u

Lift off the lower door and set it aside.

4.1.4 Transferring the middle bearing elements

Fig. 6

u

Carefully detach the cover panel

 Fig. 6 (23).

u

Turn  the  middle  turn  hinge

  Fig.  6  (22)  through  180°  and

screw it firmly into place on the new hinge side (with 4 Nm).

u

Turn  the  cover  panel

Fig.  6  (23)  through  180°  and  snap  it

into place again on the new handle side.

Putting into operation

5
