English |
29
Bosch Power Tools
1 619 929 J53 | (12.5.11)
Product Description and
Specifications
Read all safety warnings and all instruc-
tions.
Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Intended Use
The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in hard and soft-
wood, as well as in particle and fibre board. In this, mitre an-
gles from – 60 ° to +60 ° as well as bevel angles from –2 ° to
47 ° are possible.
When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.
Product Features
The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.
1
Scale for clearance of the saw blade to the parallel
guide
10
2
Guide groove for parallel guide
10
3
Angle stop
4
Recessed handles
5
Guide groove for angle stop
6.1
Blade guard with clamping lever *
6.2
Blade guard with clamping screw and side protector *
7
Vacuum connection on the blade guard
8.1
Clamping lever for locking blade guard
6.1
8.2
Clamping screw for locking blade guard
6.2
9
Saw table
10
Parallel guide
11
V-guide groove on saw table for parallel guide
12
Mounting holes
13
Carrying handle
14
Saw-Table extension
15
Tensioning lever for saw-table extension
16
Fastening bracket for saw stand GTA 600
17
Locking lever for adjustment of bevel angles
18
Handwheel
19
Crank for lowering and raising the saw blade
20
Safety flap of On/Off switch
Wear ear protectors.
Exposure to noise
can cause hearing loss.
Wear safety goggles.
Do not dispose of power tools into house-
hold waste!
Only for EC countries:
According to the European Guideline
2002/96/EC for Waste Electrical and Elec-
tronic Equipment and its implementation
into national right, power tools that are no
longer usable must be collected separately
and disposed of in an environmentally cor-
rect manner.
Observe the dimensions of the saw blade. The hole diameter
must match the tool spindle without play. Do not use reduc-
ers or adapters.
When changing the saw blade, pay attention that the kerf
width is not less than 2.3 mm and the blade thickness not
greater than 2.3 mm. Otherwise, there is danger that the riv-
ing knife (2.3 mm) becomes wedged in the workpiece.
The maximal possible workpiece height is 79 mm.
Left side
Indicates the rotation direction of the
handwheel for lowering (
transport
position
) and raising (
working posi-
tion
) the saw blade.
Right side
Indicates the position of the locking le-
ver for locking the saw blade and for
adjusting the bevel angle (saw blade
tiltable).

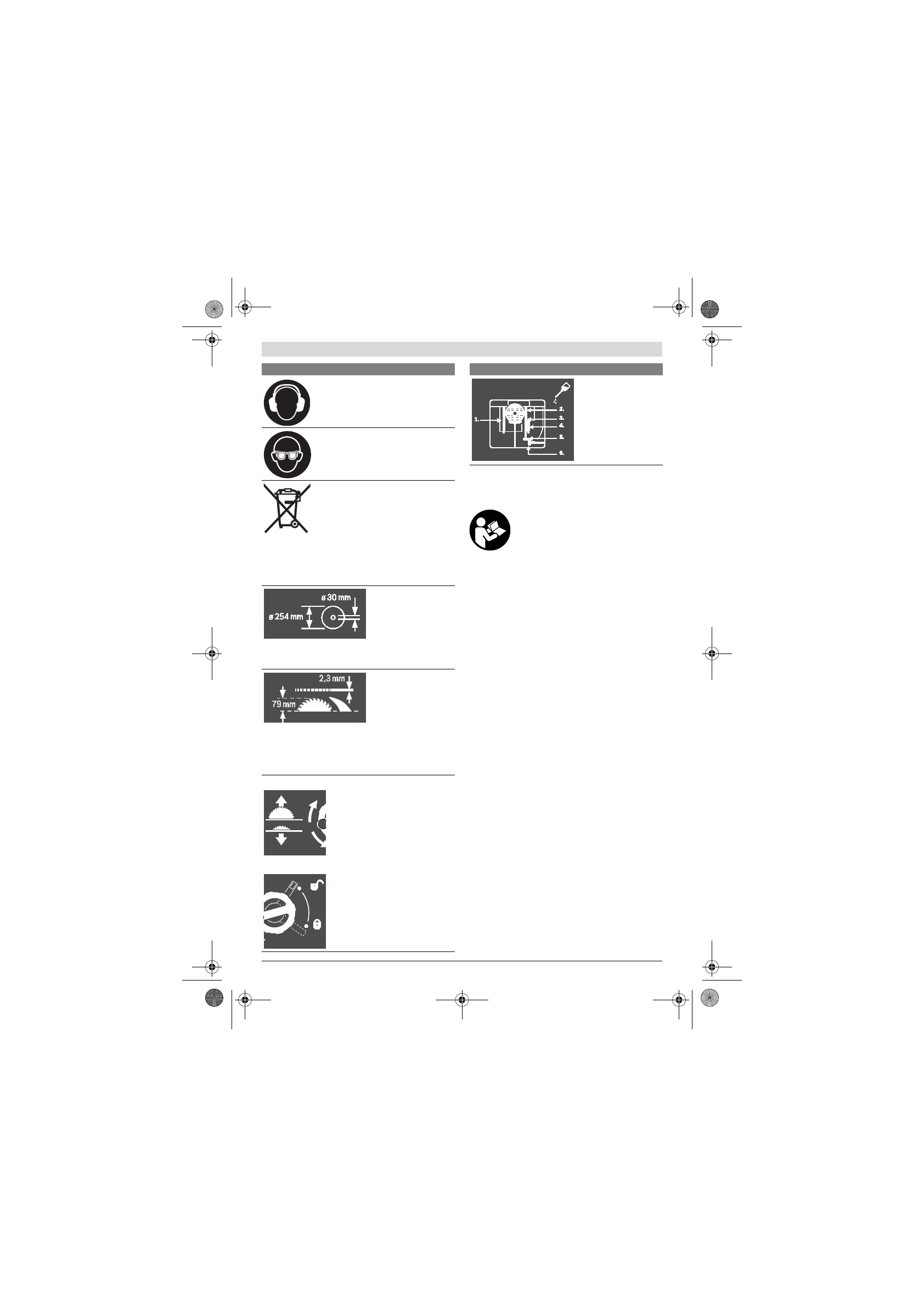

Symbols and their meaning
If required, lubricate the
power tool at the indicat-
ed locations.
Symbols and their meaning
OBJ_BUCH-1325-002.book Page 29 Thursday, May 12, 2011 1:51 PM
