17

Description of the hood -

Fig. 1

A.

  Dowels for fixing the support bracket

B.

Support to the ceiling bracket

C.

  Screws for fixing the support bracket

D

.  Regulators of the tie-rods of the hood

E.

 Decorative

cover

F.

  Box for connecting to the domestic power network

G.

    Cable block

H.

 Interconnection

cable

I.

  Lateral moulding

J.

  Suction hood

K.

 Control

lever

Attention!

 The control lever is already supplied. It is to

be installed last, before connecting the hood to the
mains.

Insert the control lever into the apposite housing (see
drawings on the first pages of this booklet - triggered
connection, compulsory direction.

L.

  Halogen bulb

M.

Lateral filter holder frame

N.  Active carbon filter

O.

  Metal anti-fat filter

Note: other carbon and anti-fat filters are installed inside
the hood in correspondence with the shaped lateral slots
and the upper part of the hood (see also Figs. 11-a-b-c-d-
e-f-g-h)

P.

  Anti-fat and carbon filters holder frame

Q.

  Filter holder frame releases

R.

  Screws for fixing the cable block and the cover of the

connections box

S.

  Screws for fixing the connections box to the support

bracket

T.

Tie-rod blocks

U.

 Tie-rods

V.

  Tie-rod connection brackets

W.

Screws for fixing the tie-rod connection brackets

X.

  Screws for fixing the bracket cover

Y.

 Fixing

template.

Operation

The hood is equipped with a

“TOUCH”

 device to control the

lights and speed.
For the correct use please carefully read the intructions below.


This product is designed to work with an Elica remote control,
either supplied with the product or purchased separately as an
optional.


To control the hood via remote control, the affiliation
procedure must be carried out.


CAUTION!

To begin, the hood must be disconnected and then
reconnected to the power supply and the affiliation procedure
must be carried out within the first minute of connection to the
power.

Read the instructions supplied with the remote control, which
provide detailed instructions on affiliation and correct use.

Automatic start-up function

The hood is equipped with a temperature sensor which
activates the motor to the first suction speed (power) in the
event that the temperature in the surrounding area is higher
than 70°C.
The user may switch off or modify the suction speed (power)
(

see paragraph “suction speed (power) control”

).

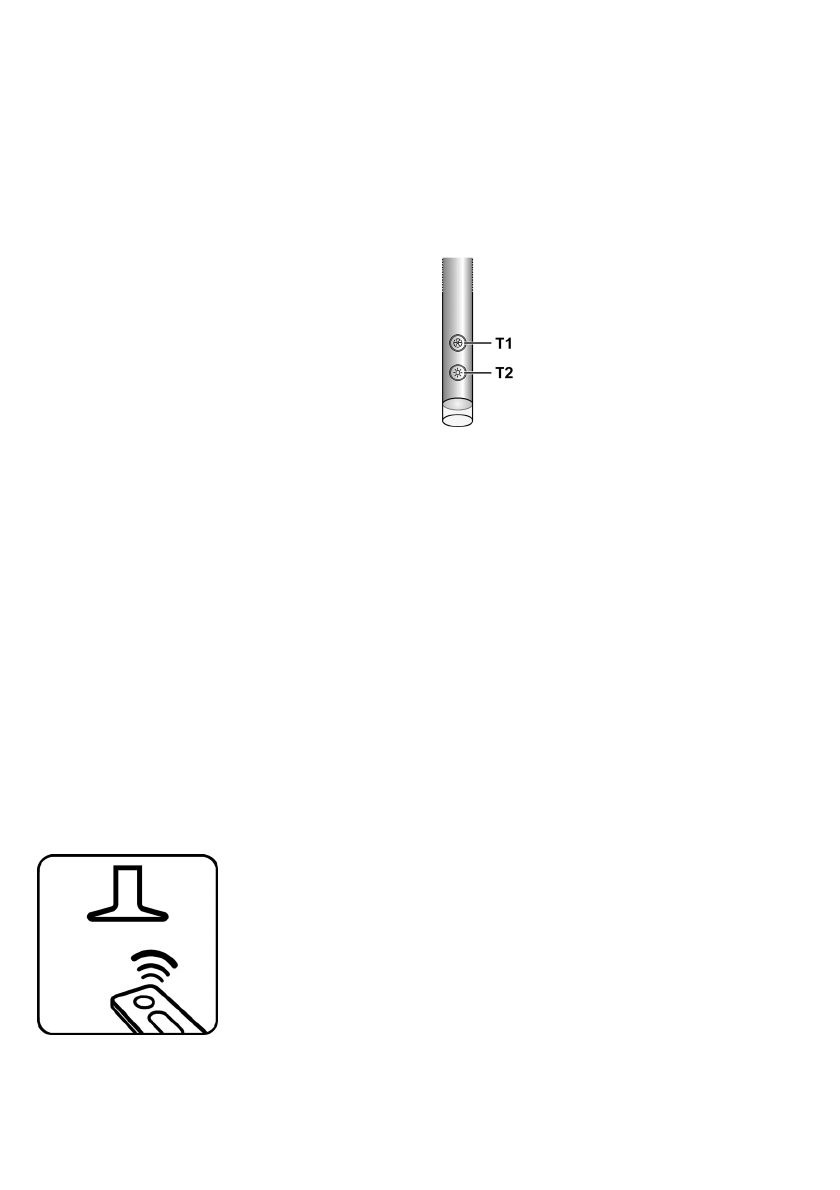

Suction speed (power) control

The suction speed (power) is cyclical depending on the speed
sequence “stand-by – 1-2-3-4- Stand by -1-2-...” therefore
every time the

T1

button

is pressed on the control panel, the

suction speed (power) is increased by one level, in order to
switch off (stand-by) if the button is pressed again when the
hood is in suction speed (power) 4.
The hood may be switched off (stand-by) while the hood is set
on any speed by holding down the

T1

button on the control

panel for a bit longer (more than 3 seconds).
The hood's suction speed (power) may be determined as the
control panel is equipped with a LED light that changes colors
as follows, depending on the suction speed (power):


Hood in stand-by:

LED LIGHT SWITCHED OFF

1st suction speed (power)

 -GREEN LED LIGHT

2nd  suction speed (power)

 – ORANGE LED LIGHT (amber)

3rd  suction speed (power)

 - RED LED LIGHT

4th  suction speed (power)

 - RED LED LIGHT (FLASHING)

Note:

 The 4th suction speed (power) stays on for 5 minutes,

after which the suction motor will position itself on the 2nd
speed.
If pressed again, the suction motor will switch off (stand-by).


Grease filters need cleaning:

 FLASHING GREEN LED light

(read instructions found under “Reset and configuration for
filter saturation signal”)

Coal filters must be cleaned or replaced:

 FLASHING

ORANGE (amber) LED light (read instructions found under
