IMPORTANT!

- if pressing test button (2) voltage is not cut off and/or

indicator (1) continues to be lighted, it means that GFCI

safety device is not operating properly.
- if pressing restart button (3) voltage is not restored

and/or indicator (1) doesn’t light up, it means that the

water heater is not operating properly. In both cases

disconnect the water heater and call the service center.
- to reduce the risk of an electric shock, do not

disassemble, remove or fill liquid in this appliance.

8. WATER HEATER CONTROL

Control panel for the following models:
SWH RS1 30 VH
SWH RS1 50 VH
SWH RS1 80 VH
SWH RS1 100 VH

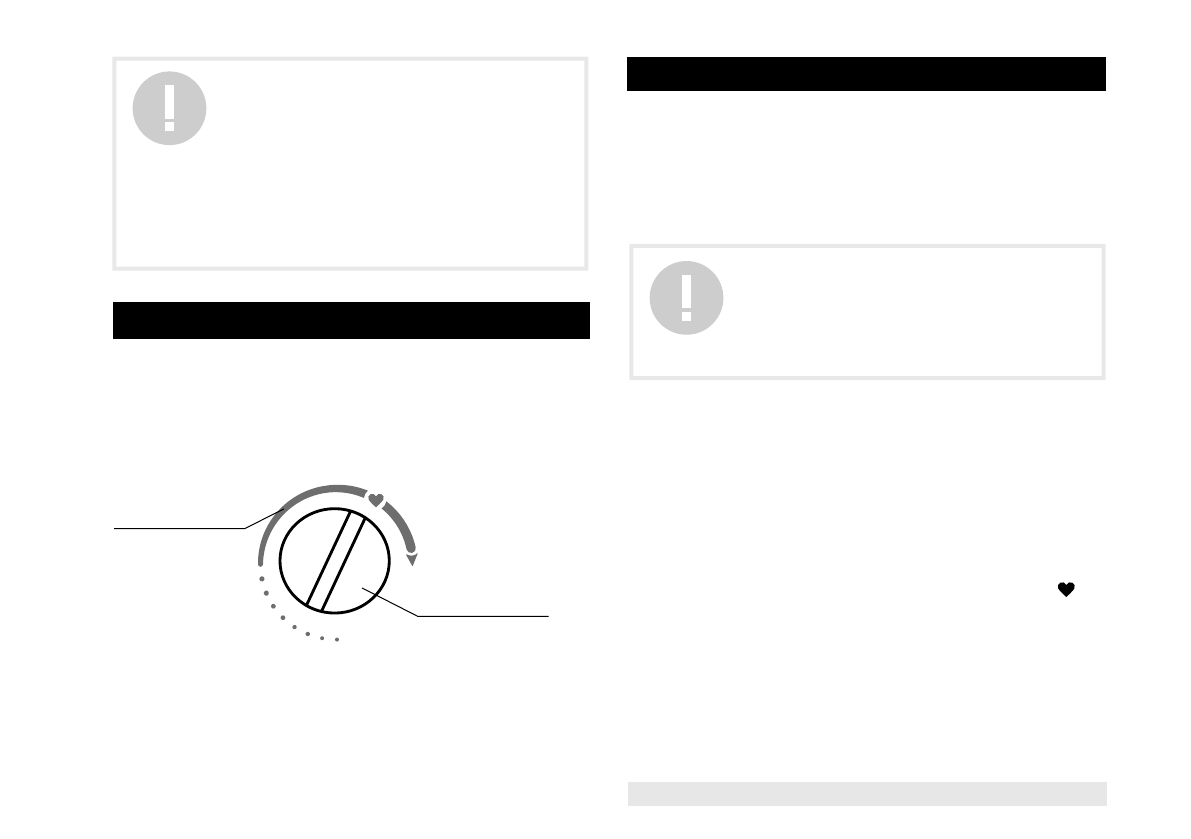

Fig. 8

Indication light

Indication thermostat

handle

SWH RS1, SWH RS2 series

1. At first, open one of the discharge valves on the outlet of the water

heater, then open the inlet valve. The electric water heater will start filling

with water. When water flows from the outlet valve freely, it means the water

heater is fully filled with water and you can close the discharge tap.
Warning: During normal operation the inlet valve must be set «open».
2. Plug the power cord into the outlet, an indicator light will light up.

3. The appliance can automatically control water temperature. When

water temperature in the water heater reaches the temperature, set by the

user, the heating is automatically switched off, and water temperature will

be maintained due to the heat insulation layer; when water temperature

drops to a certain level, heating is automatically switched off, in such a

way continuous hot water supply is provided. When the water heater

automatically switches off, the indicator light goes out.
4. If you will turn the thermostat handle clockwise, you’ll increase the

temperature of heating. Maximum temperature inside inner tank is +75°C

approx. If you want to reduce the temperature of water, please, turn the

handle anticlockwise.
5. If you choose position of thermostat handle like «optimum» or   «       » , it

means you choose the most comfortable water temperature +58 °(±2 °C).

9. WATER HEATER OPERATION

IMPORTANT!

Power outlet must be designed for rated current not

less than 10A, copper stranded power cord not less

than 3 x 1.5 mm

2

 in cross section (for copper).

Power plug of the appliance represents a single unit

with GFCI*.
