NOTE:

Do not mount additional accessories, such as a shut-

off valve, between the relief valve and the inlet nozzle.

5. Water heater with the mounted valve must be connected to the water

main – install a shut-off valve at the water inlet point.
6. Connect the desired number of consumption points to the outlet nozzle,

marked red.
7. Check leak integrity of joints: open the shut-off cock and one of the

cock assemblies. After the tank is filled with water, as evidenced by issue

of water from the cock assembly, shut the cock assembly and check the

leak integrity of all joints.

IMPORTANT!

If water in the installation location contains a large

amount of calcium, manganese or iron salts, then

necessary to mount a respective filter in the delivery

system to reduce the amount of scale generated in

the tank and on the heating element.

Connection to electric main

IMPORTANT!

Prior to connecting the tank water heater, make sure

that the water heater is properly grounded. Proper

grounding is important to minimize electric shocks

and risk of fire. The power cord is equipped with a plug

with a grounding pin. The appliance must be used

with a properly grounded power outlet. If the outlet,

you are intending to use, is not properly grounded or

grounded by a time-delay fuse or a circuit breaker,

contact a qualified electrician to install a proper outlet.

1. The water heater is designed to be connected to 230~V single-phase

electric main. Prior to connecting make sure that parameters of the electric

main in the place of connection correspond to parameters, specified on the

IMPORTANT!

To provide reliable operation and safe use of the

water heater, prior to the first run check if it is properly

connected to the 230~V AC mains. The water heater to

be connected must be securely linked with the earth

circuit of your electric mains. If the water heater is not

grounded, then in case of a short circuit GFCI, supplied

with the heater, may not operate. It is dangerous.

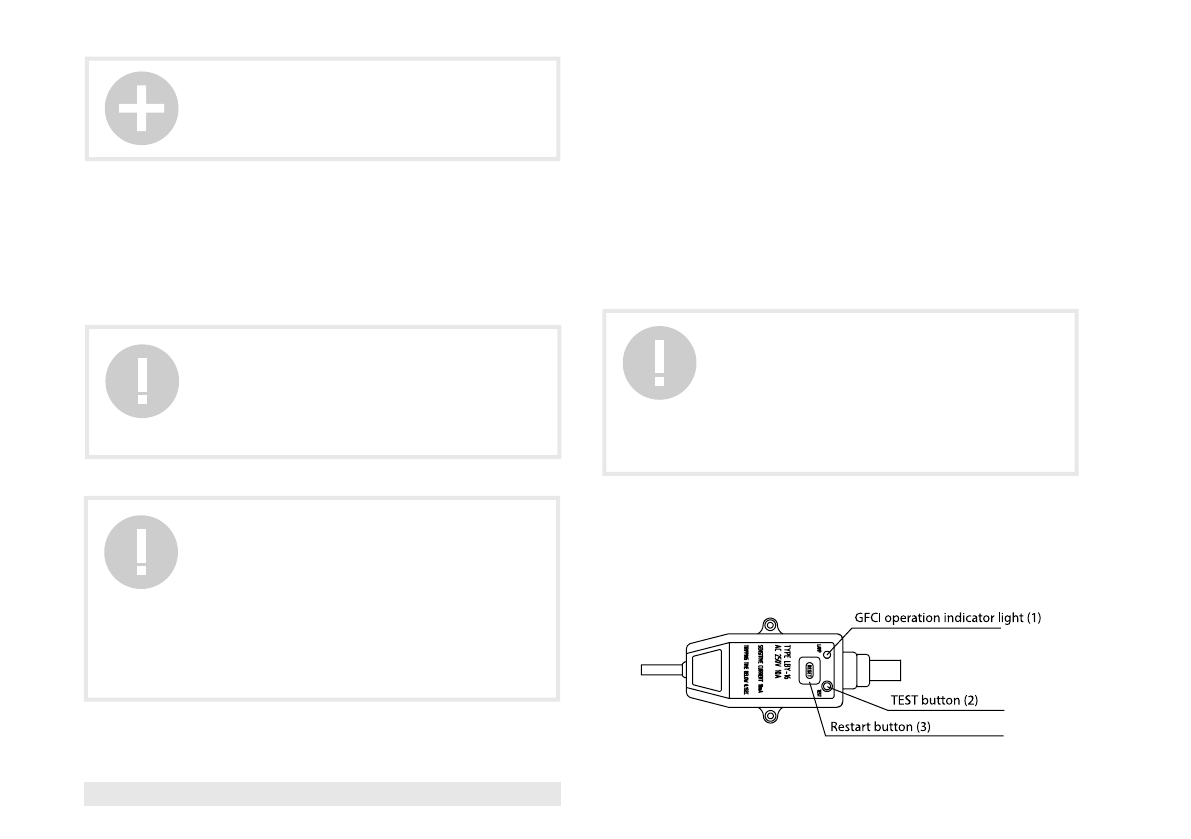

GFCI (Ground Fault Circuit Interrupter) (Fig. 7)

1. Connect the cable to the mains, indicator (1) will light up.
2. Press button (2) for testing, voltage will be cut off, indicator (1) will light

down and restart button (3) will go upwards.
3. Press button (3) to restart the appliance, voltage will be restored and

indicator (1) will light up.

Fig. 7

identification plate with technical parameters of the appliance. You should

follow the current electrical safety code when installing the water heater.
2. Power outlet must be designed for rated current not less than 10A,

copper stranded power cord not less than 3 x 1.5 mm

2

 in cross section

(for copper).
3. The power outlet and the plug must always remain dry to prevent current

leakage. Regularly check if the power plug is tightly connected to the outlet.

Do it in the following order: insert the power plug into the outlet, switch off

the water heater after half-hour operation and unplug the cord, check if

the plug is heated by your hand. If the plug is heated over 50 °C, then to

prevent damages, accidents and fire as a result of bad electrical contact,

replace the outlet with a new one. A specialist must do this.
4. Power cord of the appliance is a single unit with GFCI (Ground Fault

Circuit Interrupter).
