5. WATER HEATER DESCRIPTION

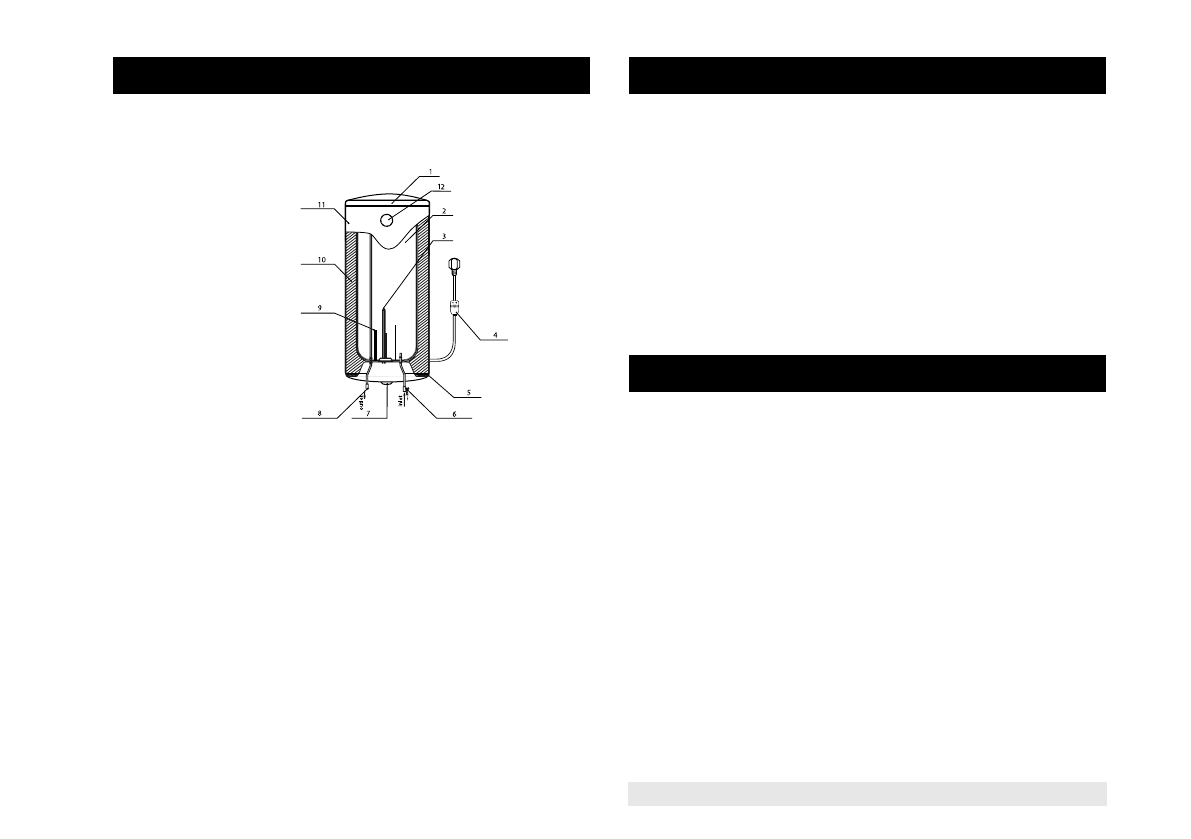

RS1 series (Fig. 3)

Fig. 3

1 – upper protective cover
2 – inner tank
3 – heating element
4 – power cable with GFCI
5 – lower protective cover
6 – inlet nozzle
7 – control panel
8 – hot water outlet nozzle
9 – protective magnesium anode
10 – urethane foam heat insulation layer
11 – external metal cosing
12 – thermometer (only for RS1 series)

6.  SCOPE OF DELIVERY

1. Water heater – 1 pc.
2. Anchor bolt – 2 pcs.*
3. Securing plate – 1 pc.
4. Pressure safety valve – 1 pc.
5. Discharge pipe – 1 pc.
6. Operation manual – 1 pc.
7. Guarantee card – 1 pc.
8. Packing – 1 pc.

* – only for RS1/RS2

7. WATER HEATER INSTALLATION

Location
1. Electric water heater should be mounted on a firm wall.
2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.
3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.
The water heater SWH RS1series can be used in a horizontal position, the

water pipes must be located on the left side of the heater.
Note!
When used in the horizontal position of the water heater is not completely

drained, so its complete draining water heater must be turned vertically
