www.timberk.com • electrical storage water heater

7

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the overall

water heater weight, fully filled with water, then it should be mounted on a

special support.
2. After you chose the proper place to install the water heater, determine

points for holes for expansion hook bolts (to be determined in accordance

with the data sheet for the appliance you chose). Drill two holes of the

corresponding depth in the wall using a drill, dimensionally fit for expansion

bolts, enclosed with the water heater, insert bolts, turn the hook upwards,

securely tighten nuts and then hang the electric water heater on these

hooks (for RS1) (see Fig. 6).
3. Fix a power outlet to the wall. Requirements to the outlet are as follows:

230~V/10A, single-phase, three-wired. It is recommended to place the

outlet on the right side above the water heater.

NOTE:

Please, use accessories, provided by the

manufacturer, to install the water heater. Electric

water heater must not be mounted on a wall prior

you make sure that the bracket is installed firmly and

securely. Otherwise the electric water heater may fall

down from the wall, which may cause its damage and

even serious accidents involving bodily injury. When

determining points for bolt holes, it is necessary to

provision some spare space between the lower

part of the water heater and the floor, and as to the

RS1(horizontal instalation) line there also must be

some space between the left side of the water heater

and the wall on the left not less than 0.6 m to make it

convenient to perform maintenance if necessary.

Water heater mounting

NOTE:

In places or on the wall, where there may be a water

contact, the power outlet installation height must be

not less than 1.8 m.

Connection to water main

1. The heater must be connected to water main with at least 0.1 MPa

pressure; maximum pressure is 0.7 MPa.

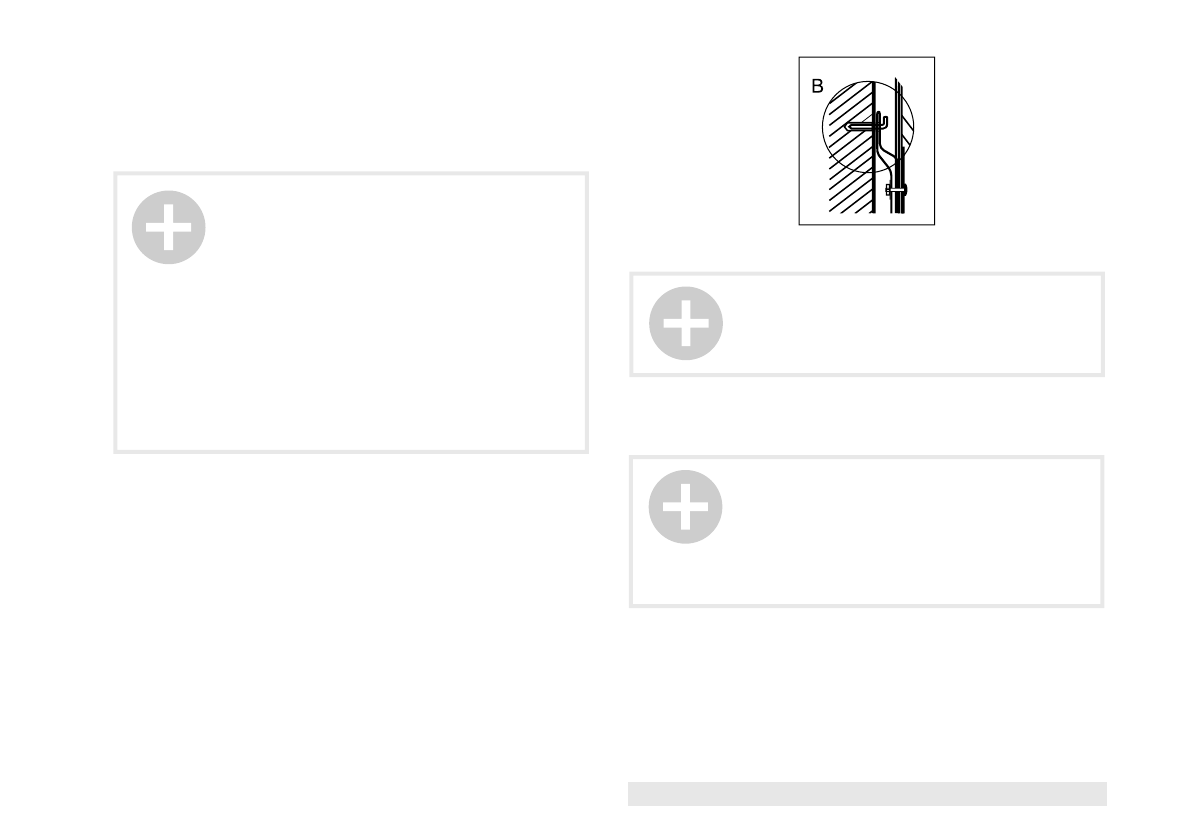

Fig. 6

NOTE:

The water heater is the appliance, operating in such

a manner that pressure of water in the water heater

corresponds to the pressure of water in water main.

If pressure in the main exceeds 0.7 MPa, then it is

necessary to mount a pressure reducer before the

water heater so that pressure doesn’t exceed 0.7 MPa.

2. G1/2 diameter pipes are used to connect the water heater to the water

pipeline.
3. To prevent a leakage when connecting pipes, use rubber sealing gaskets

on the threaded pipe ends.
4. Screw a relief valve to the inlet nozzle, marked blue and embossed arrow

of the water flow direction, so that the water flow direction coincides with

direction of the arrow on the valve’s case.
