www.timberk.com • electrical storage water heater

6

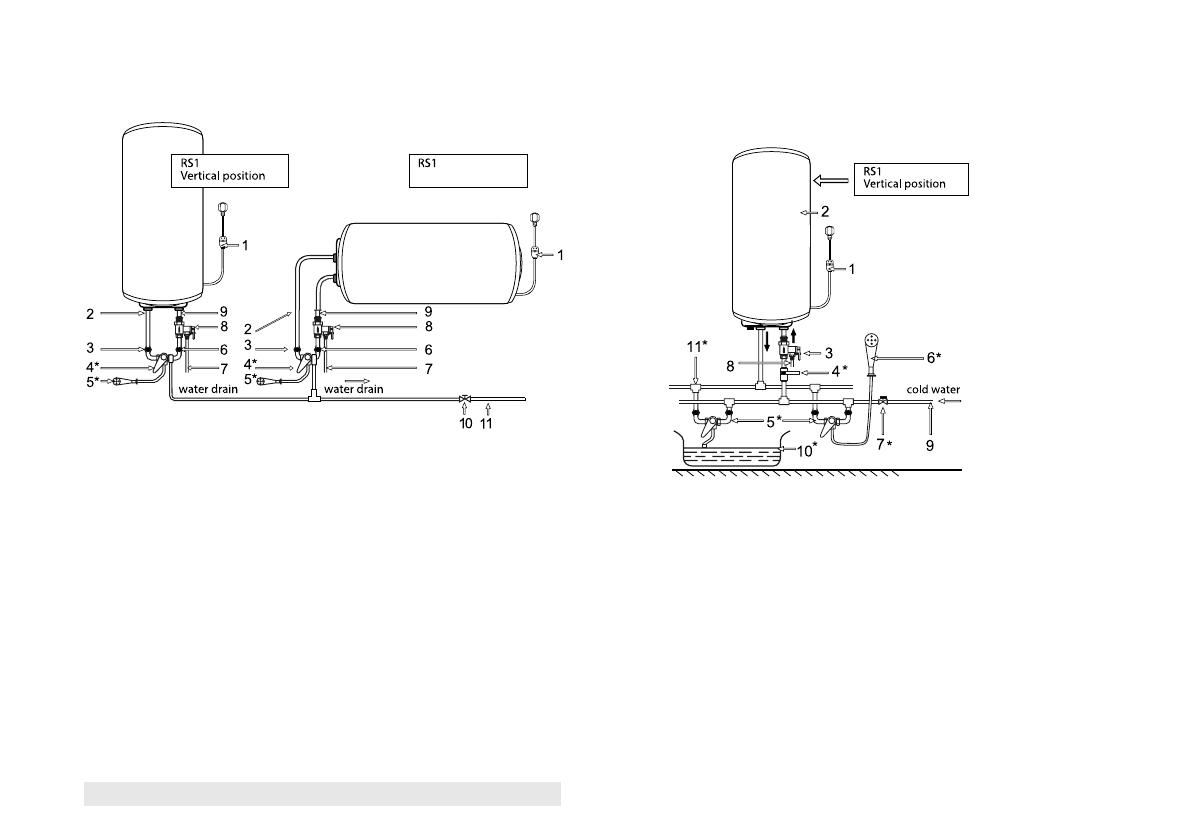

Water heater mounting methods

Fig. 4 shows the way to mount the water heater for one consumption point.

Fig. 4

1 – power cord with a plug and GFCI**
2 – outlet nozzle
3 – hot water flow adjustment tap*
4 – mixer*
5 – shower header*
6 – cold water supply adjustment tap
7 – discharge pipe
8 – composite pressure safety valve
9 – inlet nozzle
10 – water main shut-off valve*
11 – water main

* not included in the scope of delivery
** depending on the product batch, GFCI can be located not within the power cable electric plug

Horizontal instaltion

Fig. 5

1 – composite pressure safety valve
2 – cold water inlet tap*
3 – mixer*
4 – shower header*
5 – water main shut-off valve
6 – discharge pipe
7 – water main
8 – tub*
9 – T-bend

* not included in the scope of delivery
** depending on the product batch, GFCI can be located not within the power cable electric plug

Water heater mounting methods

Fig. 5 shows the way to mount the water heater for several consumption

points.
