www.timberk.com • electrical storage water heater

6

1. Power cord with a plug

2. Magnesium anode – water discharge nozzle

3. Water outlet

4. Hot water supply adjustment tap*

5. Mixer*

6. Shower header*

7. Cold water supply adjustment tap*

8. Pressure relieving opening

9. Check relief valve

10. Water inlet

11. Water heater

12. Water main shut-off valve*

13. Water main

14. T-bend*

*Does not included in the scope of delivery

Fig. 5

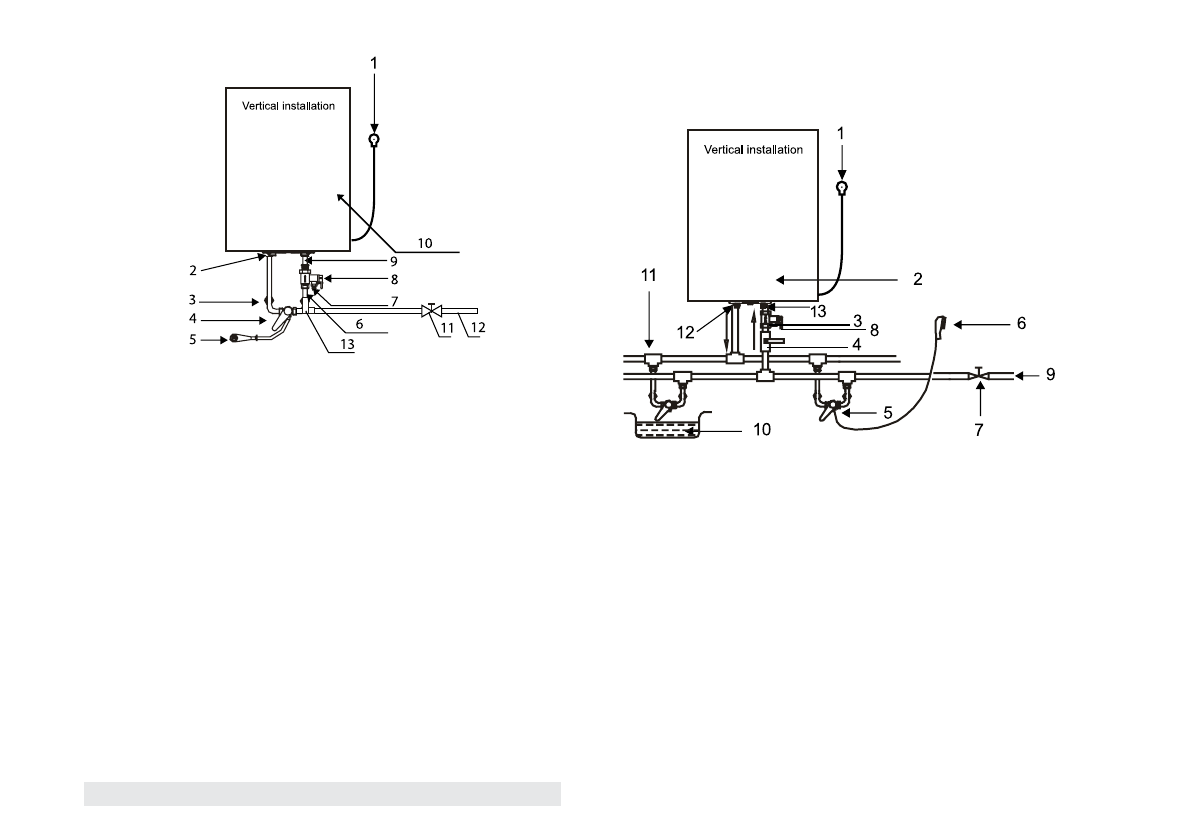

Water heater mounting methods

Fig. 6 shows the way to mount the water heater for several consumption
points  (for SWH RED3 ... V).

1. Power cord with a plug

2. Water heater

3. Check relief valve

4. Cold water supply valve*

5. Mixer*

6. Shower header*

7. Water main shut-off valve*

8. Pressure relieving opening

9. Water main

10. Bath tub*

11. T-bend*

12. Water outlet

13. Water inlet

Fig. 6
