Technical characteristics of water heaters are given below in Table 1.

Table 1

5. The water heater is equipped with an anode bar to protect the internal
tank from corrosion and decrease scale generation on the heating element.

6.Internal thickened urethane foam insulation allows to efficiently preserve
temperature of the heated water and minimize heat losses, reducing power
consumption of the water heater.

7. The water heater has simple structure and is convenient in service.

Description

Units

SWH RED3 50 V

SWH RED3 80 V

SWH RED3

100 V

Power supply

V/Hz

220~/50

220~/50

220~/50

Rated current

A

6,8

6,8

6,8

Nominal power consumption

W

1500

1500

1500

Tank capacity

L

50

80

100

Rated pressure

Mpa

0,75

0,75

0,75

Water protection

–

IPX4

IPX4

IPX4

Electrical protection class

I

I

I

Heating time, at

Δ

 30

º

C

min

40

68

80

Appliance dimensions (WxHxD)

mm

Ø

390х645

Ø

400

×

775

Ø

440

×

925

Net weight

kg

15,1

22,0

26,0

Factual year  energy

consumption

kW•h

405,15

525,6

631,45

Constant daily heating loss

kW•h / day

1,15

1,49

1,76

Capacity, l

A

B

C

D

E

F

G

SWH  RED3 50 V

50

100

112

250

160

84

580

Ø

390

SWH  RED3 80 V

80

100

137

300

173

84

710

Ø

400

SWH  RED3 100 V

100

100

137

450

173

84

860

Ø

440

Dimensions

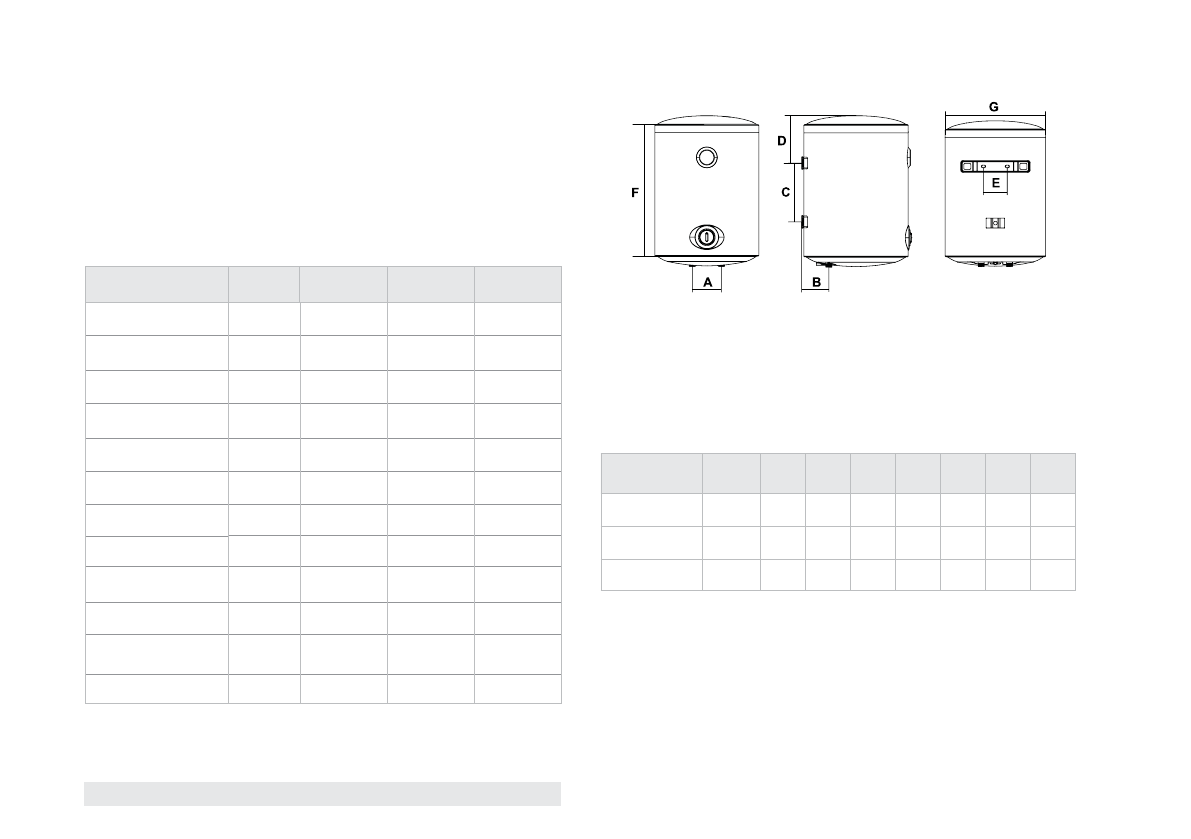

Dimensions of water heaters (mm) are made in accordance with fig. 1, fig.
2 and fig. 3.

Table 2

Fig. 1

Fig. 2

Fig. 3
