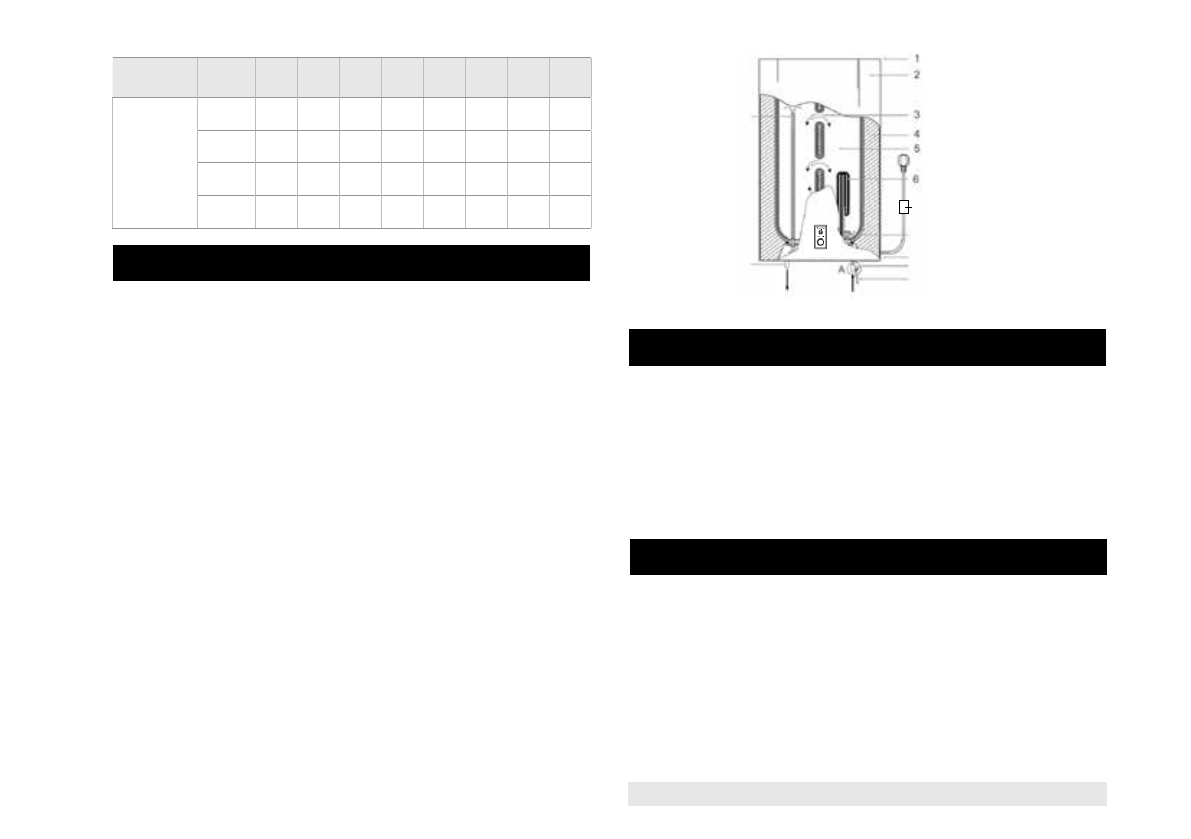

5. WATER HEATER DESCRIPTION

Fig. 2

FEL1 series

1 – the upper composite protective cover
2 – external decorative case
3 – system of flows (3 overflows)
4 – urethane foam heat insulation layer
5 – internal tank
6 – heating element
7 – power cable with GFCI
8 – thermostat sensor pipe
9 – protective magnesium anode
10 – inlet nozzle with a splitter
11 – the lower composite protective cover
12 – composite pressure safety valve (make sure to install onto the cold

water supply tube) Pos. A
13 – emergency discharge of surplus water pressure (a small water leakage

is possible from the emergency discharge hole when the water heater is

operating. It is normal)
14 – hot water outlet nozzle
15 – the upper part of the hot water intake tube

Вых

од

Вхо

д

8
9

10

11
12

13

14

Capacity, l

A

B

C

D

E

F

G

H

SWH FSL3

30

573

593

280

235.9

432.9

13.5

72.3

-

50

858

878

450

235.9

432.9

13.5

72.3

-

80

967

987

500

273.2

492.2

13.5

103.2

-

100

1187

1207

650

273.2

492.2

13.5

103.2

-

6.  DELIVERY SET

1. Water heater – 1 pc.
2. Anchor bolt – 2 pcs.
3. Pressure safety valve – 1 pc.
4. Discharge pipe – 1 pc.
5. Operation manual – 1 pc.
6. Guarantee card – 1 pc.
7. Packing – 1 pc.

7. WATER HEATER INSTALLATION

Location

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the total

water heater weight, fully filled with water, then it should be mounted on a

special support.
2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.

7
