6. To drain water from the internal tank properly, water can be drained

through a composite relief valve (Fig. 8) (unscrew the composite relief valve

drain knob screw and set the drain knob to the upper position, at that hot

water tap must be open, and cold water supply valve must be closed).
7. Bear in mind to check serviceability of the relief valve every 14 days –

inspection method:
- turn the discharge lever to the left up until you feel the change of thread,

then water must start flowing from the valve’s hole. After checking the

water flow, return the lever to its initial position.
8. If necessary, wipe external surfaces of the heater by a damp cloth with

soap.

IMPORTANT!

If these actions had no positive result or the thermal

switch turns off repeatedly during a short period of

time, then you should de-energize the water heater,

cut off water supply and contact your local Timberk

Authorized Service Center for a consult or repair of the

appliance.

Possible malfunctions and troubleshooting methods
Table 2

10. TROUBLESHOOTING

Failure

Possible causes

Troubleshooting method

Heating indicator light doesn’t light up,
water is not heated

1. Temperature adjustment device
is broken.

Contact a repairer, TIMBERK service
center.

2. Temperature limiter was actuated or
was not switched on.

Switch on the temperature switch
following instructions on its activation.
(page 15)

3. Temperature limiter is broken.

Contact a repairer, TIMBERK service
center.

Water doesn’t flow from the hot water
discharge cock

1. Water feed is cut off.

1. Wait until water supply is restored.

2. Water pressure is too low.

2. Switch on the water heater again,
when normal water pressure restores.

3. Water supply exhaust valve is
closed.

Water temperature is too high

Water temperature control system
is damaged.

Contact a repairer, TIMBERK service
center.

Water leakage

Seal at the point of pipe connection
is broken.

Replace the joint seal.

Water flows from the appliance’s case

Breaking of the internal tank
(corrosion)Seal at the point of the
heating element connection is broken.

Contact a repairer, TIMBERK service
center.

switched off or not switched on. To reset the water heater to the operating

condition, it is necessary to:
- de-energize the water heater, remove the plate of the side / lower cover

for horizontal-type/vertical-type water heater respectively.
- for SWH FSL3 series vertical-type water heaters: unscrew retaining nut of

the thermal switch, fastened on the flange of the heating element, turn the

thermal switch and press the button, located in the center of the thermal

switch, until it clicks; Fig. 9
- if the button is not pressed and there is no clicking, then you should wait

until the thermal switch cools down to the initial temperature.

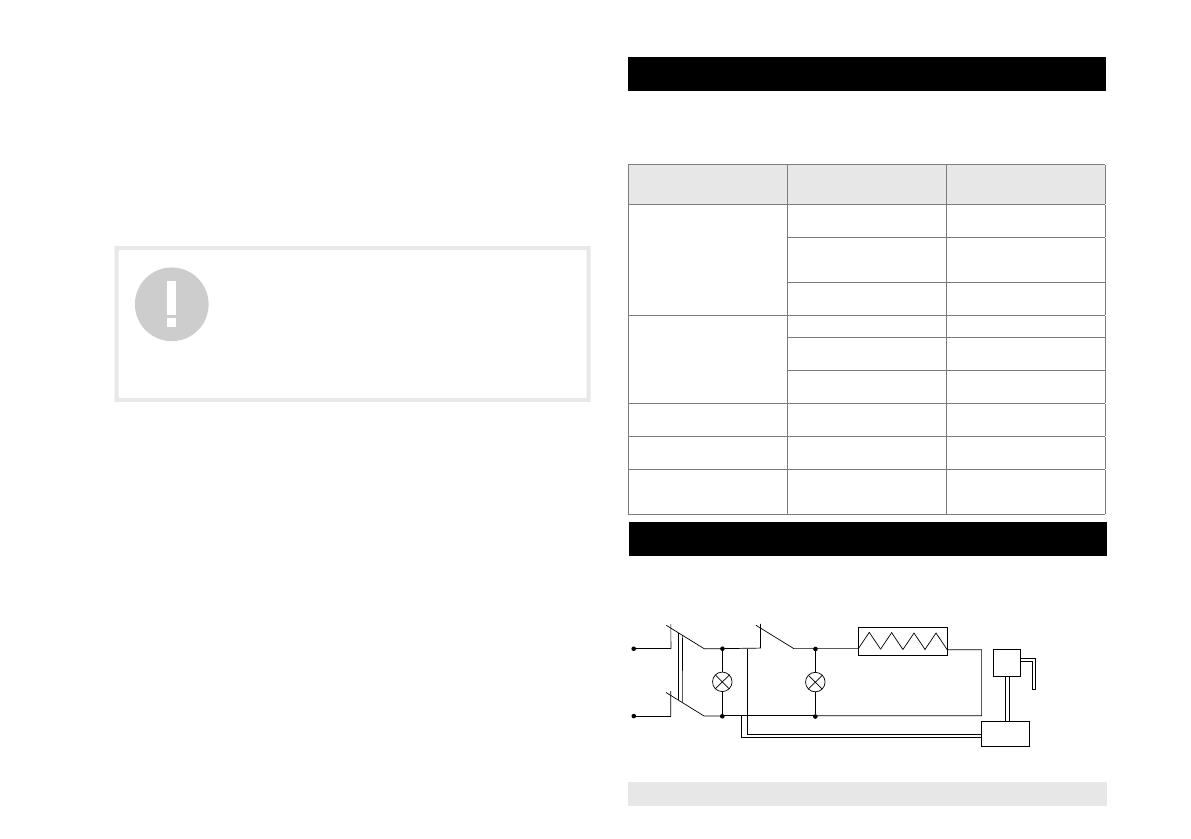

11. WIRING DIAGRAM

Fig. 11

Temperature
limiter

Thermostat

Heating

element

Power

Heating
