9. Electrical connection

1

3

2

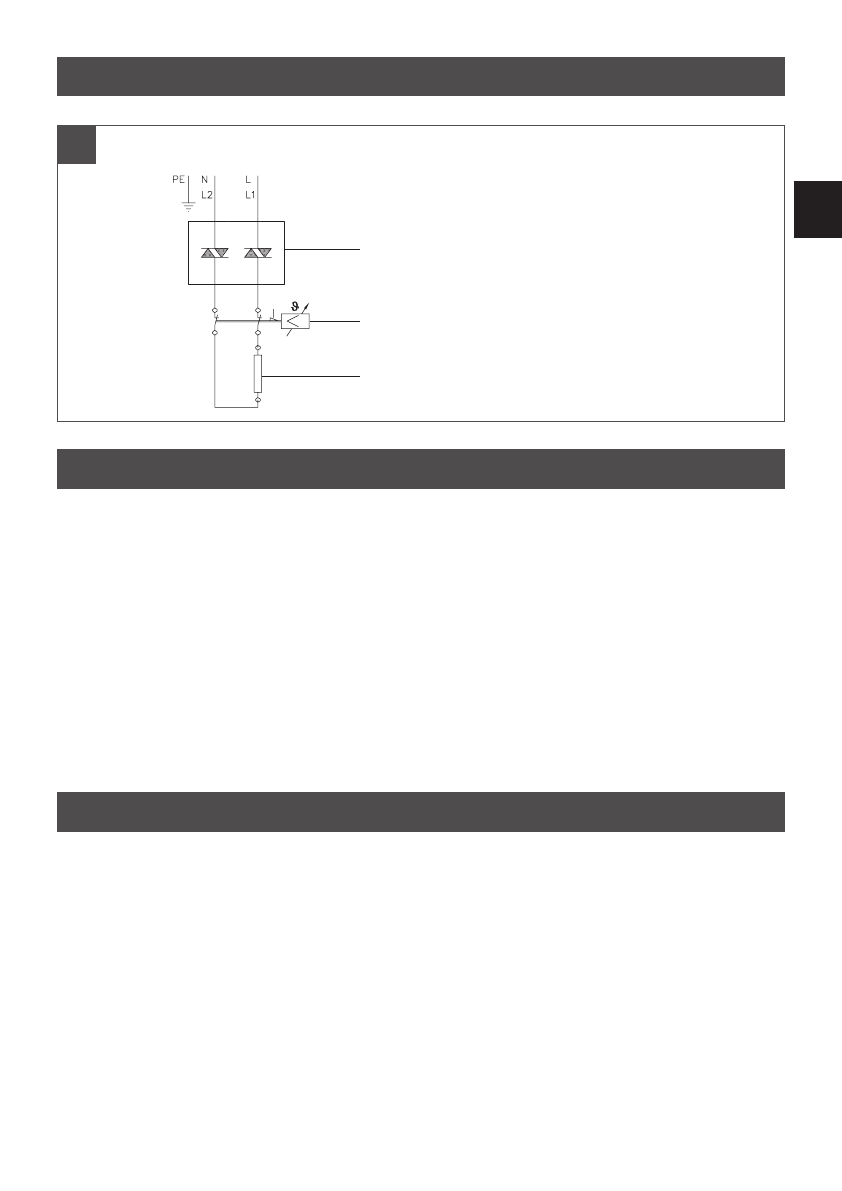

Circuit diagram

1.  Electronic regulator
2.  Heating element
3.  Safety thermal cut-out

9

( 220 V~ )  MCX 6-220
( 240 V~ )  MCX 3..6-240
( 400 V 2~ )  MCX 7

To prevent damage to the appliance, the instantaneous water heater must be purged of
air before using it for the first time.

10. Purging

Each time it is emptied (for example after work on the plumbing system or following repair
work on the appliance), the instantaneous water heater must be purged before it is used
again.
1.  Switch off the power supply to the instantaneous water heater.
2.  To purge the instantaneous water heater, open the hot water tap and wait until the water

emerges free of air bubbles.

3.  Switch the power supply back on again.

11. Commissioning

Do not switch on the electric power at this time!

1.  Open the hot-water tap and allow water to flow until it emerges free of air bubbles.
2.  Now close the circuit breaker to connect the electrical supply. After a short power-up delay,

the water heats up.

3.  Set the desired outlet temperature and adjust the water flow rate, if, for example, the tem-

perature cannot be reached.

4.  Explain the functions of the heater to the user and ensure that he knows how to use it.

Hand over these operating instructions to the user.

5.  Use the registration card for the registration at the factory service centre or register the

appliance online on the website www.clage.com.
