8. Installing the appliance

Removing the appliance from the wall bracket

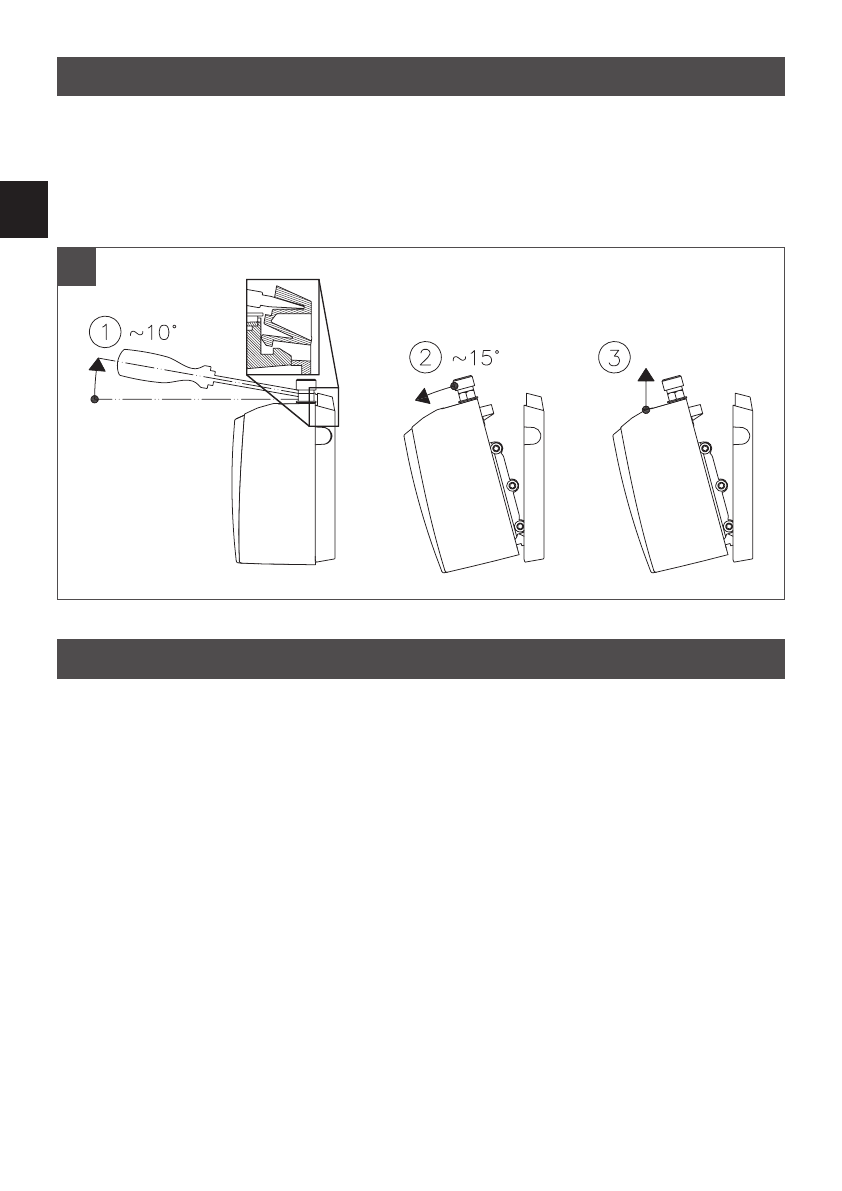

Put the wide screwdriver tip into the interlock between the water connections until it stops,
then press slightly upwards (1), tilt the appliance forward by max. 15° (2) and remove it
upwards (3).

8

Fill the appliance completely with water by repeatedly opening and closing the hot-
water tap before connecting to electrical power. The heating element may be damaged
if this is not done!

•  Check that the power supply is switched off prior to electrical connection.
•  The MCX 3 (3.5 kW) may be provided with a power cable and a protective earth plug by

the factory. Please make sure that the feed cable, which leads to the protective earth plug
socket, is dimensioned sufficient and that the socket is plugged to the conductor. The sock-
et must be freely accessible. The power cable needs to be changed by the customer service
department or an authorized electrician in case of defect, to avoid any danger.

•  The mains cable of all other MCX models must be permanently connected via connecting

box as shown in the circuit diagram (see fig. 9).

The earth conductor must be connected.

•  In accordance with IEC, a circuit breaker with a contact opening gap of at least 3 mm for

each pole must be provided on the mains side of the connecting box.

•  The wiring cross-section must be well adapted to the corresponding power rating.
•  To protect the appliance, a fuse element must be fitted with a tripping current commensu-

rate with the nominal current of the appliance.

9. Electrical connection
