26

EN

MCX 3..7  SMARTRONIC

®

Installation guidelines:

Hose DN

D

external

PN

R

min

8 mm

12 mm

20 bar

27 mm

Ensure suffi-

cient equipotential bonding.

•  The permissible bending radius R

min

 = 27 mm must be

observed at all times, including during transport and
assembly as well as when installed. If it is not possible to
observe the minimum bending radius, a different installa-
tion method should be used or a suitable hose should be
selected.

Please refer to the table for the minimum length:

L

min

L

min

 α 

= 90°  L

min

α

 = 180°

L

min

α

 = 360°

60 mm

140 mm

180 mm

260 mm

•  For curved installation there must be sufficient hose length

available to form an open loop, as otherwise the hose will
become kinked at the joints and thus destroyed.

•  The hose length may change slightly due to the effects

of pressure or heat. For straight installation, allowance
should therefore be made to compensate for changes in
the hose length.

•  Never twist or kink the flexible connection.
•  Ensure that the hose is never stressed by external tensile

or compressive forces during assembly or when in use.

•  Rigid connections (external thread) should not be further

tightened after attaching the second connection, as this
causes twisting and may damage the hose.

•  The hose installer is always responsible for ensuring a

tight join.

•  The installer should check any sealing material supplied

with the hose to ensure that it is suitable, as the hose
 manufacturer does not know the connection material or
geometry.

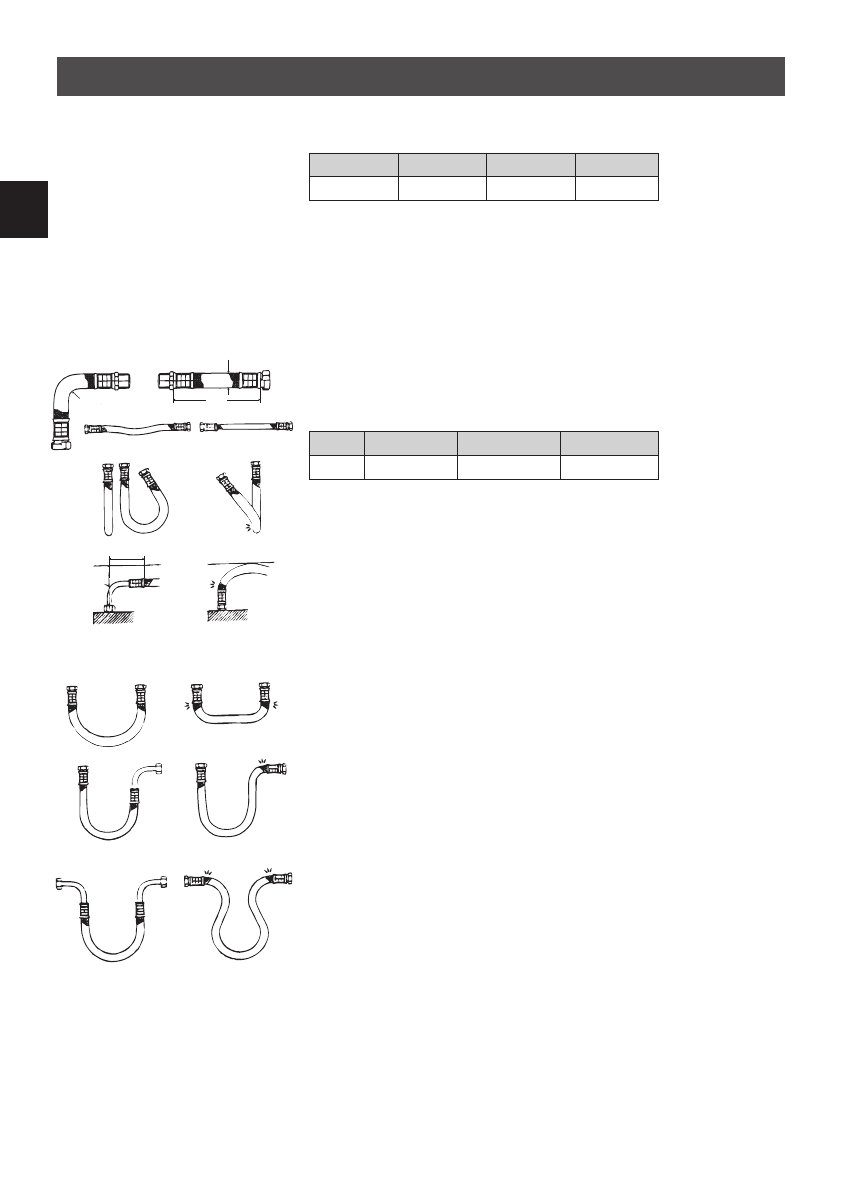

7. Flexible connecting hoses

D

external

X

Bend

Pipe bend

correct

correct

correct

correct

wrong

wrong

wrong

wrong

L

min

R

min
