33

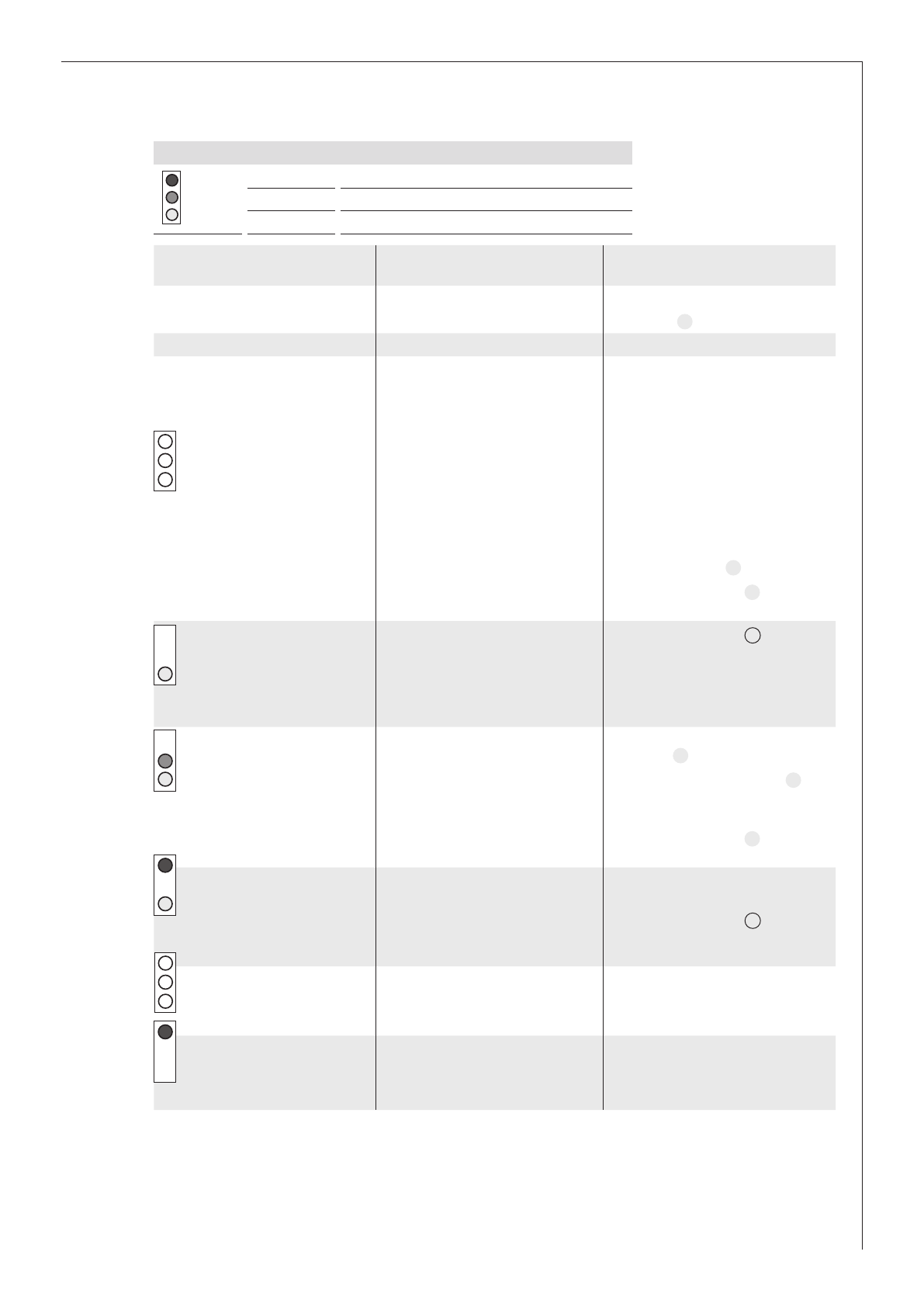

Display options LED diagnostic “traffic lights”

Red

illuminates in case of faults

Yellow

illuminates when the equipment is heating water

Green

flashing: the device is supplied with power

Fault / Diagnostic “traffic light”
display*

Cause

Remedy

Flow rate too low

Shower head/perlators scaled up

Contamination

Descale and replace, if required.

Clean sieve (

H

 28).

Set temperature is not achieved

One phase down

Check fuse/MCB (fuse box).

Heater does not switch on / no hot
water

The air sensor detects the presence of air
in water and briefly switches the heater
off.

Device starts again after one minute.

No hot water

Fuse/MCB blown/tripped

Check fuse/MCB (fuse box).

No “traffic light” display

Safety pressure limiter AP 3 has tripped

Faulty electronics

Remove cause of fault (e.g. faulty pressure
washer).
Open downstream tap for 1 minute.
This depressurises and cools down the
heating system, protecting it against
overheating.
Press the pushbutton on the safety
pressure limiter (push

A

 11).

Test the electronics PCB (

A

 7) and

replace, if required.

No hot water; flow rate > 3 l/min

Traffic light display:
green flashing or constantly ON

Faulty electronics

Flow sensor DFE not plugged in

Flow sensor DFE faulty

Test the electronics PCB (

A

 7) and

replace, if required.

Refit the plug of the electronics PCB.

Check and replace the flow switch,
if required.

No hot water; flow rate > 3 l/min


Traffic light display:
constant yellow illumination
green flashing

Safety pressure limiter AP 3 triggered or
cable break

Heating system faulty


Faulty electronics

Check safety pressure limiter and replace,
if required (

A

 11).

Test the heating system resistor (

A

 15)

and replace, if required


Test the electronics PCB (

A

 7) and

replace, if required.

No hot water

Traffic light display:
constant red illumination
green flashing

Cold water inlet temperature > 35 °C

Cold water sensor faulty

Reduce the temperature of the cold water
supply to the device.

Test the electronics PCB (

A

7

) and

replace, if required.

Inaccurate temperature control

No “traffic light” display

Outlet temperature sensor pulled or lead
broken

Push on outlet temperature sencor lead,
check and replace sensor/lead, if required.

No hot water

Traffic light display:
constant red illumination

Outlet sensor faulty (short circuit)

Test outlet sensor and replace, if required.

Table 6

For contractors

7.

Troubleshooting

by the contractor
