8.  INSTALLATION

8.1  Selection of installation equipment

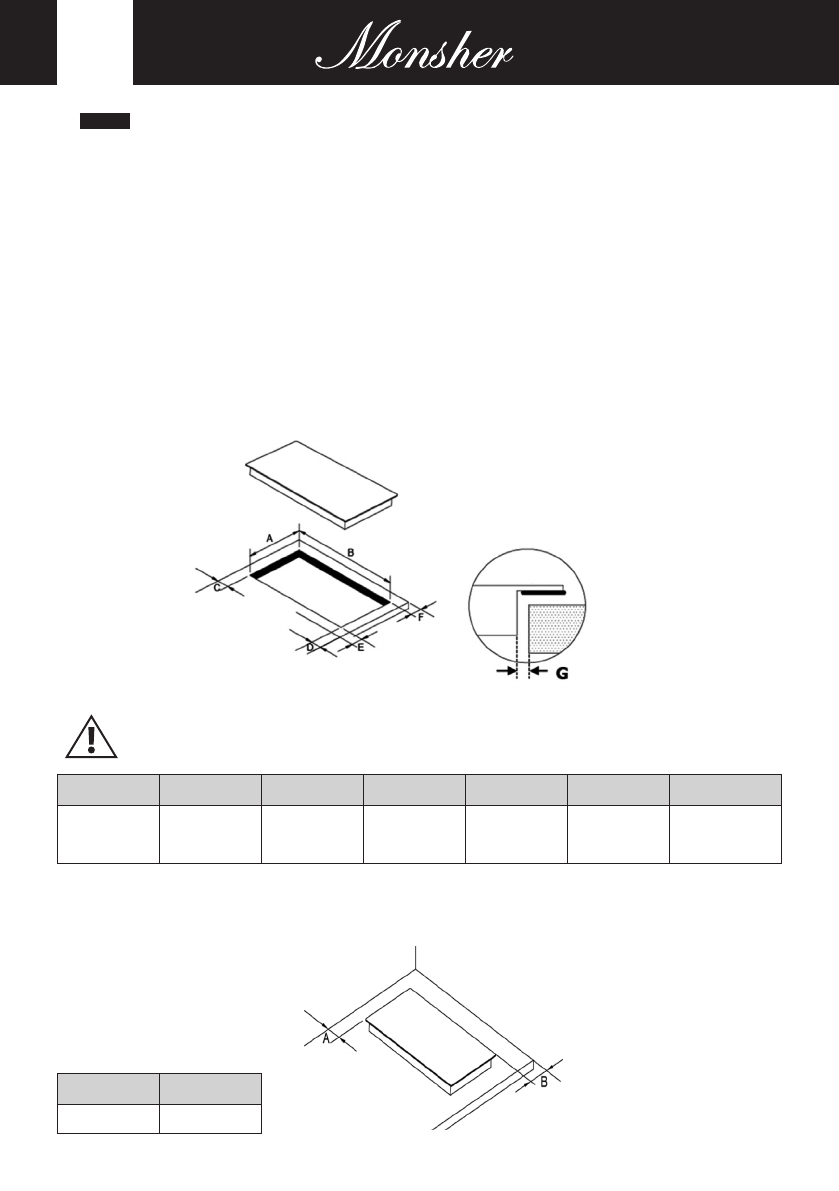

1. Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 50mm space shall be

preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select

heat-resistant and insulated work surface material (Wood and similar fibrous or
hygroscopic material shall not be used as work surface material unless impregnated)
to avoid the electrical shock and larger deformation caused by the heat radiation
from the hotplate. As shown below:

Note: The safety distance between the sides of the hob and the inner surfaces of the worktop s
should be at least 3mm.

А

B

C

D

E

F

G

    268 +4

    500 +4

50mm mini

50mm mini

50mm mini

50mm mini

3mm mini

          -0   mm           -0   mm

2. The ceramic cooker hob can be used on the table top of cabinet. The ceramic

hob should be placed horizontally. As shown below:

A

B

50mm mini

50mm mini

SEAL

Min. 3 mm
