Technical passporT

gas hob

Release of Burnt Gases

Â

The air required for burning is

taken to the environment of the hob
and the burnt gas are released to the
environment. Proper ventilation should
be maintained for safe operation of the

unit.  The  ventilation  openings  defined

as per the volume of the environment
are provided at the bale (Table 1).

Â

Burnt gases should be discharged

outside by the hood with flume.

Â

If no kitchen hood is used,

an electrical ventilator should be
used having guaranteed capacity to
discharge 3-5 times of the kitchen air
to be installed at the wall or window of
the building (Figure 6)

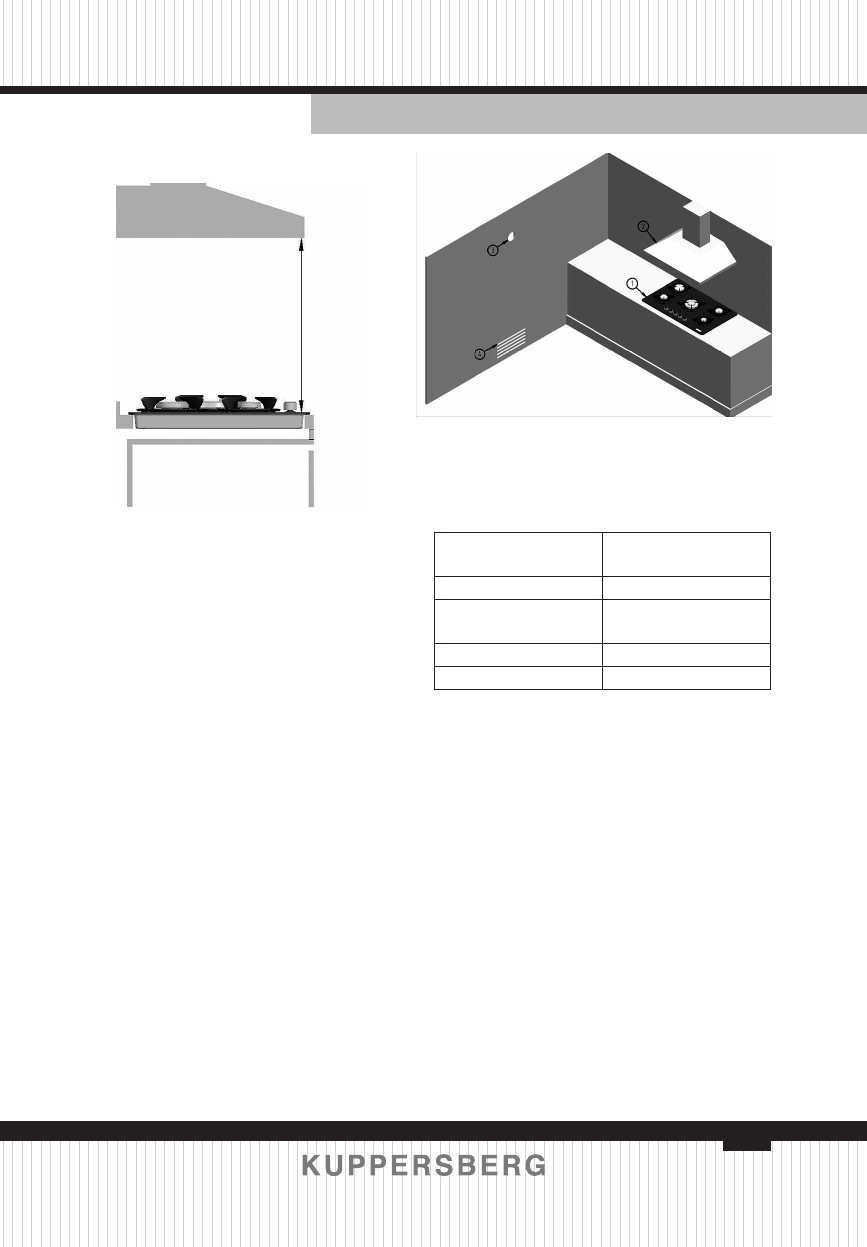

MIN. 700 mm

25 mm

Figure 2.

Figure 3.

Table 1

1. Cooktop

2. Aspirator

3. Electrical ventilator

4. Ventilation Opening

VOLUME OF THE

ROOM (m.)

VENTILATION

OPENING (cm.)

Less than 5 m

3

Minimum 100 cm

2

Between 5m

3

and 10 m

3

Minimum 50 cm

2

Larger than 10 m

3

Not required

Basement or Cellar  Minimum 65 cm

2

Installation of the Hob on the
Counter

Â

In order to prevent insertion

of the foreign materials and liquids
between the hob and the counter
attache the gasket on the counter
hole without allowing any overlapping
before the installation. (Figure 7)

Â

Place the hob on the counter

hole to center the installation hole.

Â

Secure the unit on the counter by

using the installation sheet and screws.
(Figure 7 and 8)
