english

Technical passporT

gas hob

Make the connection so that

no pressure will be applied on the
connection records and piping. Make
sure that the pipe will not cause any
clogging or contact with the sharp
corners.

Note that the gas hose will not be

laid through hot areas.

NOTE: Replace the gas hose of your

hob at 4 to 5 years even if it will be

undamaged.

NOTE: Check whether any gas

leakage after the connection with soap

and water. Do not ever use flame.

Make sure that no additional weight

to be applied on the gas hose.

And apply the following order for

installation:

1. In the order; male adaptor

cylindrical, gasket, female gas adaptor,
conical-cylindrical or cylindrical
cylindrical components,

2. Tighten connection place with the

keys so that the pipes will be in proper
position,

3. Attach C coupling to the main gas

source by using hard copper pipe or

flexible steel pipe.

WARNING; Final Check whether

any  leakage  exists  at  the  pipes  with  a

solution with a soap, and do not ever

use flame.

equipment should be suitable as per

the applicable standards.

Â

All gas related works should be

conducted when the electric connection

was cut.

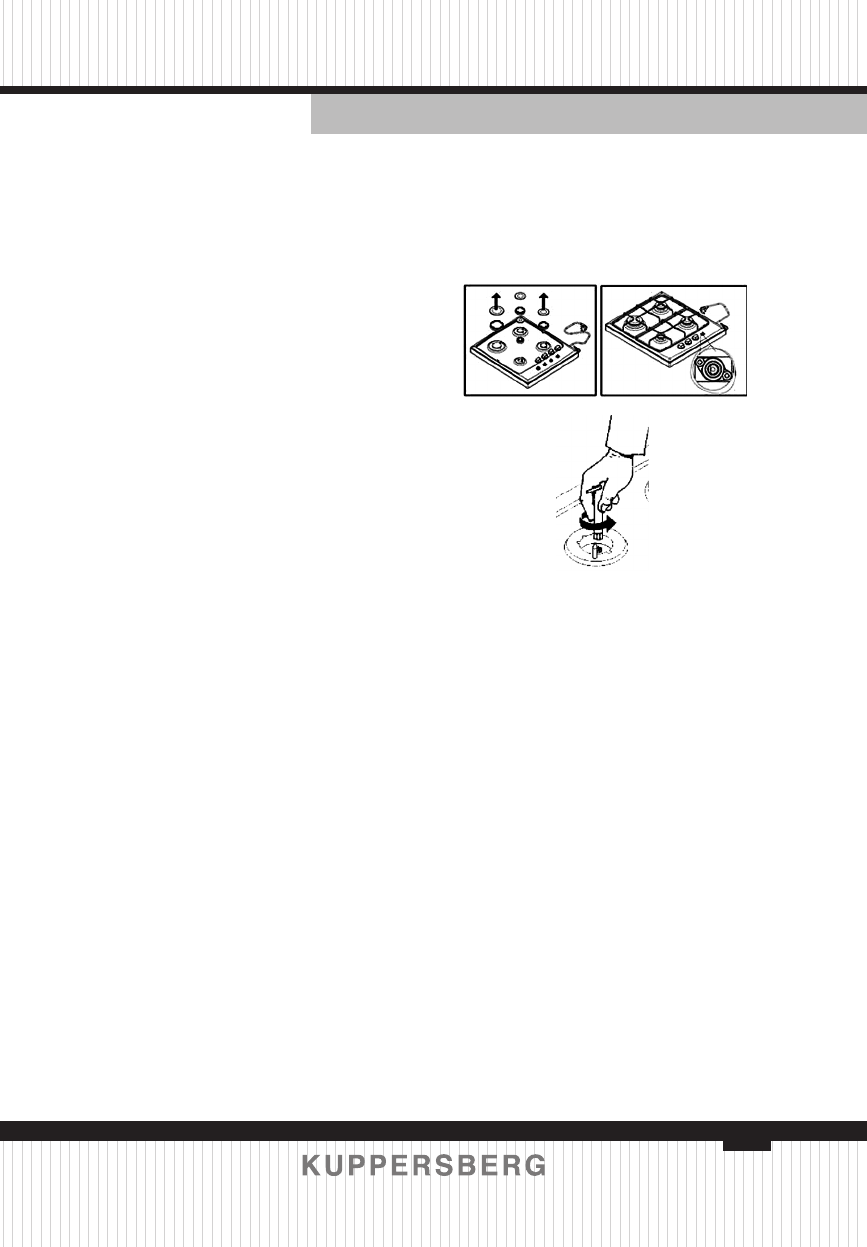

In order to convert the hob, remove

the  burner  plates  and  flame  circles

thereon. Replace the injectors as per
the followings, and change them with
the injectors with suitable diameters

defined  in  the  user’s  manual.  Conduct

the works with a plain tip screwdriver
at a position to see valve setting screw
by removing the switches of the hob
and rubber seals. In order to set the

low  flame  level,  turn  the  gas  setting

screw on the valve to have minimum

gas  setting  flow.  Do  this  setting  after

installing the burner component of the
burner, burning the burner and bringing
the switch setting to minimum.

Flow setting screw should be

tightened in LPG conversions as it
should be released for conversion from
LPG to natural gas.

6.5. ADJUSTMENT OF HOB

PER GAS TYPES

These instructions are prepared for

specialist personnel having required

competence, the installation of the
