Technical passporT

english

gas hob

Figure 1.

Â

The distance between the cook top ad another device (e.g. kitchen hood)

shall not be less than 700 mm (Figure 5).

Â

If 60 cm Hobs will be place on a built in oven without any cooling system, it is

recommended to leave 300 cm2 of ventilation hole in order to insure air circulation.

If 75 or 90 cm cook-top will be placed the oven has to have cooling fan.

Â

There must be 200 cm. space at the side wall off the cabinet of the hob.

6.2. INSTALLING THE APPLIANCE

This equipment should be mounted at the well ventilated places and as per the regulations

in force. The installation personnel should consider the laws and norms applicable to the

release of burning gases and ventilation.

Â

Your hob is designed to be installed on the standard counters which you may find in

the market.

Â

The materials used on the surface and the link partitions under the counter should be

resistant against minimum 100°C.

Â

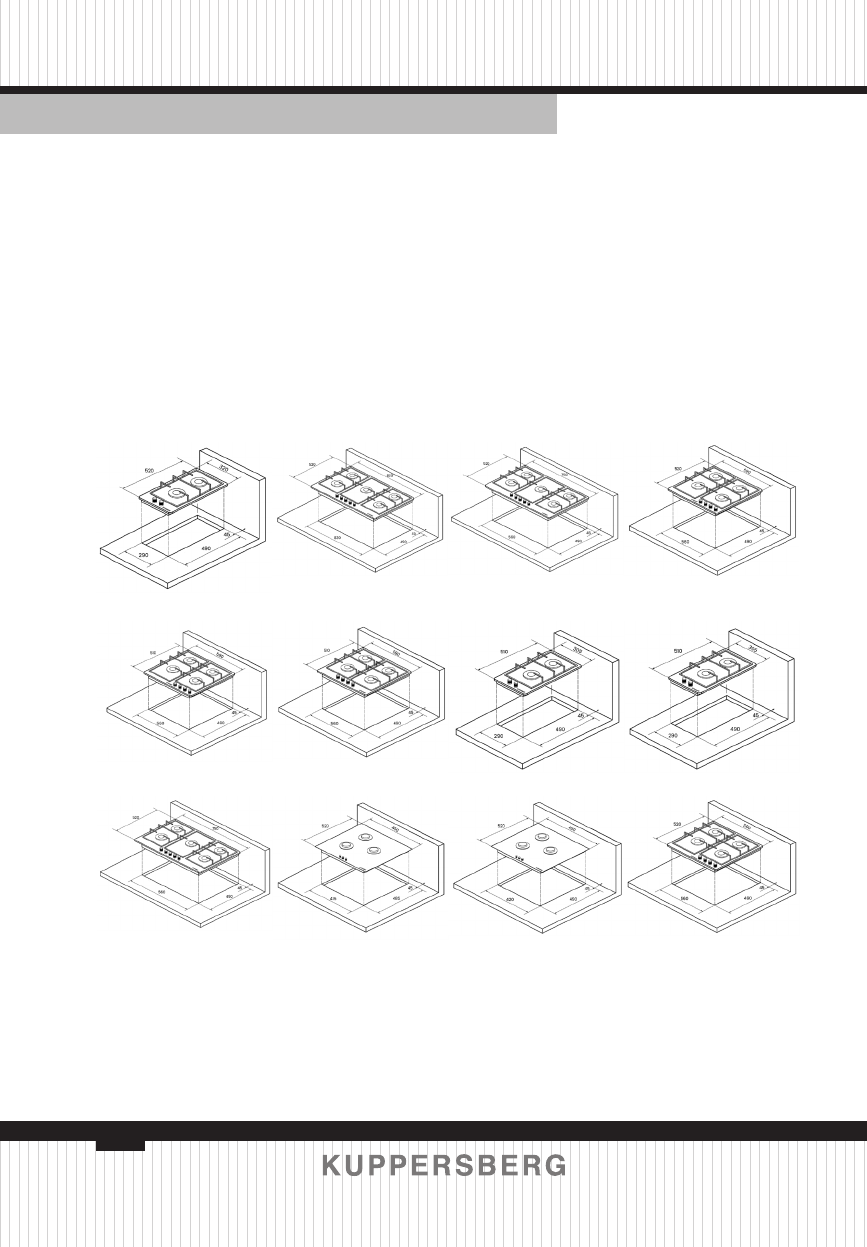

A safe distance should be left between the hob and the counter walls (Fig. 4).

Â

The hole to be provided for the hob on the counter should be as per the figure. (Fig. 4)

Â

The distance between the hob sole and the partition should be at least 25 mm. (Fig. 5)
