EN

(C) Audio cable (not supplied)

Option 2:

R

G

R

G

B

R

B

G

B

R

R

W

W

Y

R

W

(B)

(C)

(D)

(E)

(A)

Audio R / L

R

L

Y

Pb

Pr

YPbPr

AV In

(A) External Device

(B) Component video cable (not supplied)

(C) Audio cable (not supplied)

(D) Composite video/audio adapter cable (not supplied)

(E) Component video adapter cable (not supplied)

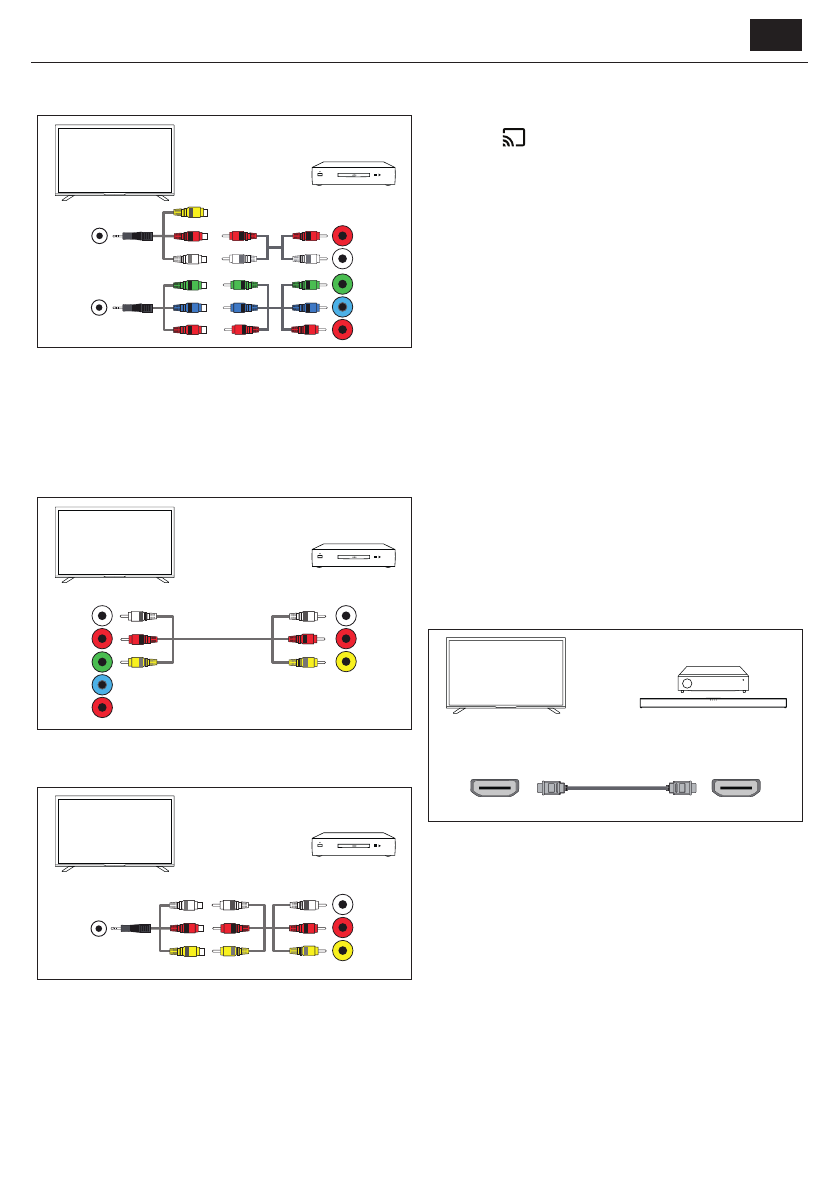

Composite connection

If your external device has composite jacks (sockets), connect them using a

composite video/audio cable.

Option 1:

Y

W

Y

R

W

R

(A)

(B)

Video CVBS

Audio R / L

Audio R / L

R

L

R

L

Video / Y

Pb

Pr

(A) External Device

(B) Composite video/audio cable (not supplied)

Option 2:

Y

W

Y

R

W

R

Y

R

W

(A)

(B)

(C)

Audio R / L

Video CVBS

R

L

AV In

(A) External Device

(B) Composite video/audio cable (not supplied)

(C) Composite video/audio adapter cable (not supplied)

Enjoying content from your mobile device on the TV
with Chromecast built-in

Chromecast built-in allows you to wirelessly cast content from your

favourite websites and apps to your TV, directly from your computer or

mobile device.

1.

Connect a mobile device such as a smartphone or tablet to the same
home network that the TV is connected to.

2.

Launch a Chromecast supported app on the mobile device.

3.

Select the

 (cast) icon in the app.

4.

The screen of the mobile device is displayed on the TV.

NOTE

An Internet connection is required to use Chromecast built-in.

Outputting audio from an audio system

You can connect audio systems such as AV receivers or sound bars to the

TV. Select a connection method below according to the specifi cations of

the audio system you want to connect.

– Connecting with an HDMI cable (For details, carefully

read “Connection using an HDMI cable” below.)

– Connecting with a digital optical cable

– Connecting with an audio cable

For connection methods, refer to the Connecting an audio system page.

NOTE

Refer to the instruction manual of the device to be connected.

Connection using an HDMI cable

This device supports Audio Return Channel (ARC). You can use an HDMI

cable to output audio from audio systems that support ARC.

For connection methods, refer to the Connecting an audio system page.

NOTE

The location of the HDMI terminal that supports ARC varies depending on

the model. Refer to the included reference guide.

Connecting an audio system

See the illustrations below to connect an audio system such as an AV

receiver or soundbar.

HDMI connection (ARC supported)
1.

Connect the TV and audio system with an HDMI cable.

Connect to the TV’s HDMI input terminal bearing the text “ARC”.

(A)

(B)

HDMI (ARC)

HDMI (ARC)

(A) AV receiver or sound bar

(B) HDMI cable (not supplied)*

*We recommend authorised Premium High Speed HDMI Cable(s) bearing

the HDMI logo.

NOTE

HDMI CEC must be enabled on your TV for this connection to work. To enable
it, press the HOME button, then select [Settings] — [Device Preferences] —
[Inputs] and enable option [HDMI control].

Digital optical cable connection

Connect the TV and audio system with a digital optical cable.

Connect to the audio system’s digital optical input terminal.
