English

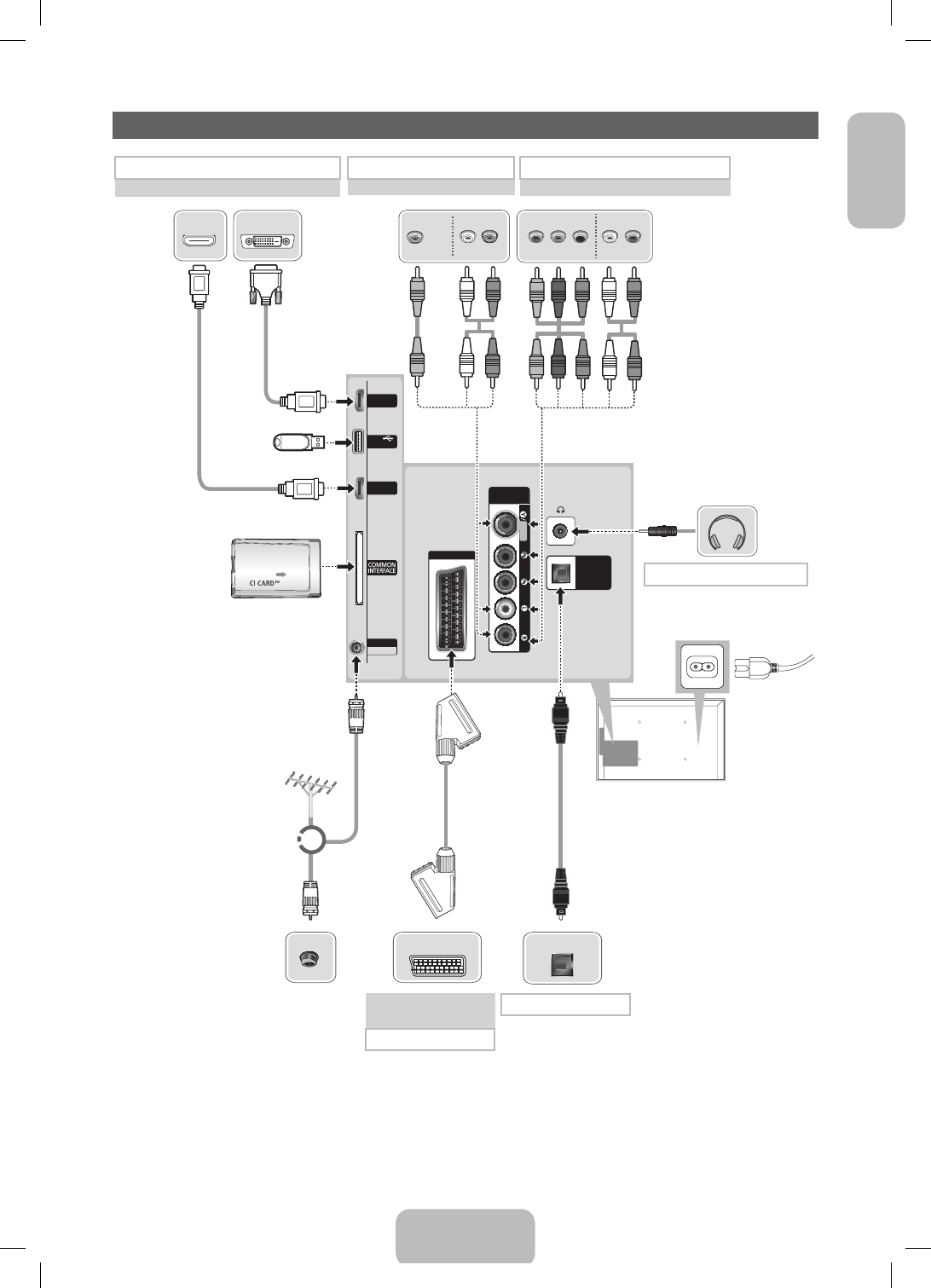

Connections

✎

NOTE

•

PC(D-Sub) and PC/DVI AUDIO IN input are not supported.

•

Connecting through the HDMI cable may not be supported depending on the PC.

•

If a DVI to HDMI cable is connected to

HDMI IN 2(DVI)

 port, there will be no audio.

•

For set-top box connection using HDMI cable, we highly recommend you to connect the

HDMI IN 1(STB)

 port.

•

The headphone jack supports only the 3 conductor tip-ring-sleeve (TRS) type.

AUDIO

VIDEO

COMPONENT

/ AV IN

DIGITAL

AUDIO OUT

(OPTICAL)

EXT (RGB)

(5V 0.5A)

USB

ANT IN

AIR/CABLE

AUDIO

VIDEO

COMPONENT

/ AV IN

HDMI IN 2

(DVI)

HDMI IN 1

(STB)

AUDIO OUT

R-AUDIO-L

VIDEO OUT

AUDIO OUT

R-AUDIO-L

P

B

P

R

Y

COMPONENT OUT

OPTICAL

HDMI OUT

DVI OUT

EXT

Y

R

W

R

W

R

B

R

G

Y

W

R

W

R

R

B

RG

VHF/UHF Antenna

Cable

USB

COMMON INTERFACE

or

TV Rear Panel

TV Side Panel

Set top Box / BD Player / PC

HDMI connection

Audio connection

VCR or DVD

SCART connection

BD Player

Component connection

BD Player

AV connection

✎

The position of port may differ depending
on the model.

✎

It supports both Component
and AV connection in one
port.

Headphone connection

English - 7
