Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the
instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. We do not advice
you to do it yourself.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the TV on your
own.

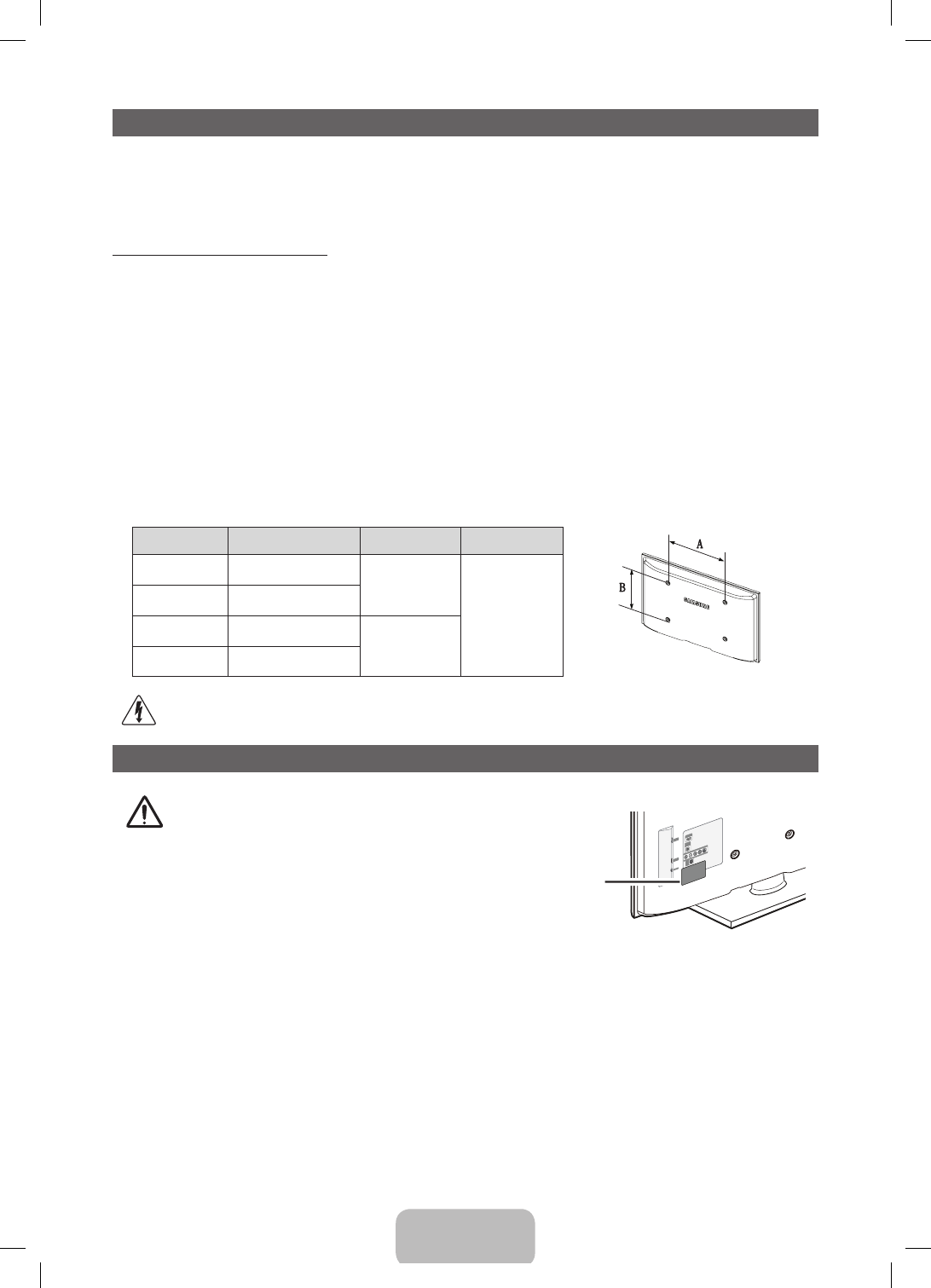

Wall Mount Kit Specifications (VESA)

✎

Wall mount kit is not supplied but sold separately.

✎

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your

nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

•

Standard dimensions for wall mount kits are shown in the table below.

•

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

•

Do not use screws that do not comply with the VESA standard screw specifications.

•

Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.

•

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending
on their specifications.

•

Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.

•

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.

•

Do not exceed 15 degrees tilt when mounting this TV.

inches

VESA Spec. (A * B)

Standard Screw

Quantity

19~22

75 X 75

M4

4

26~28

100 X 100

32~42

200 X 200

M8

46~60

400 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Caution of the cover-jack

CAUTION

: The cover-jack is for use by qualified service

personnel only. To reduce the risk of electric shock or fire
hazard, do not use the cover jack, unless you are qualified to
do so.

Cover-jack

TV Rear Panel

✎

The rear panel may differ depending on the model.

English - 14
