English -

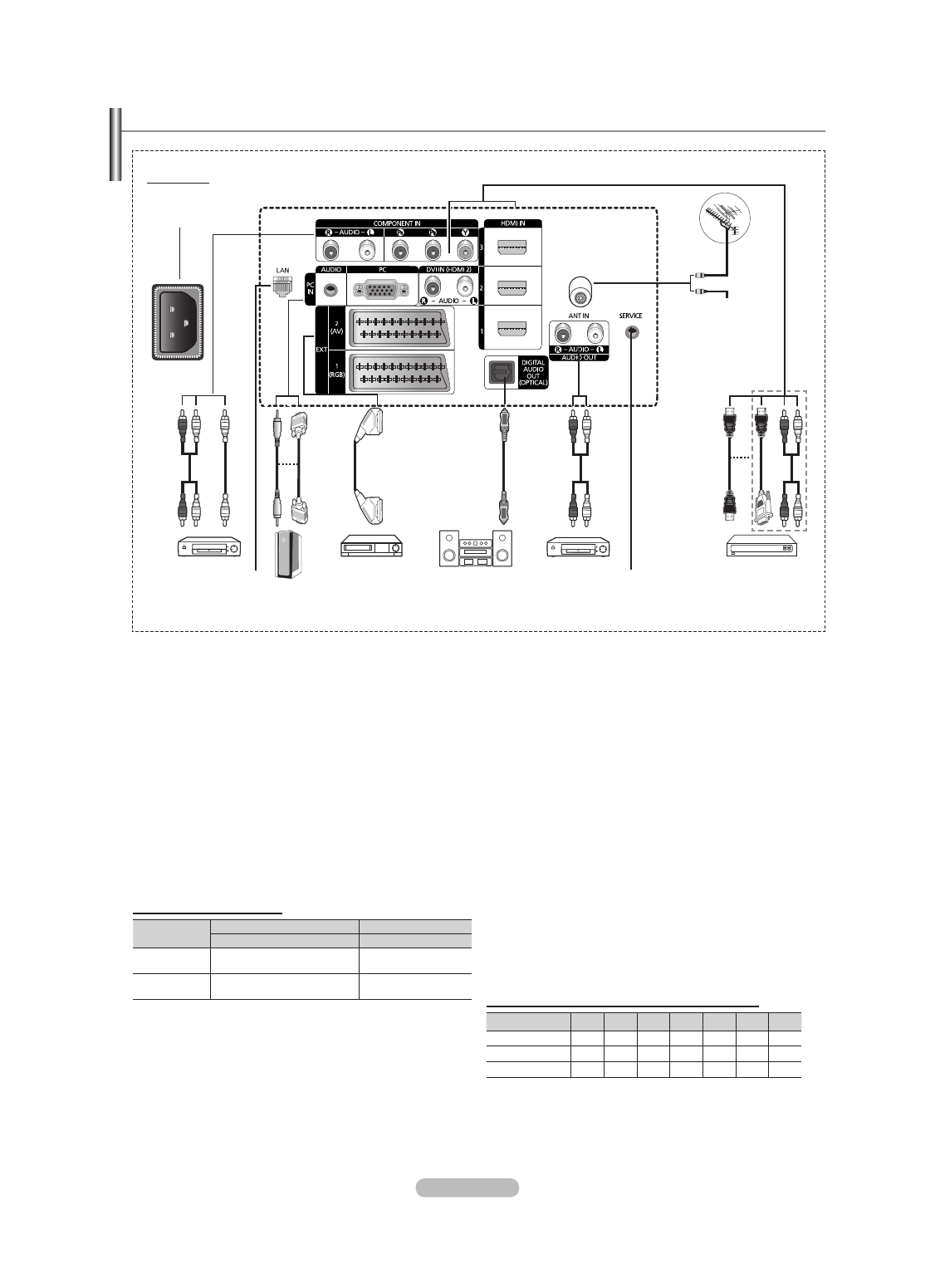

Viewing the Connection Panel
Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
When connecting an external device, match the colour of the connection terminal to the cable.
N
N
Rear Panel
Cable Television
Network
or
or
or
1
5
7
9
6
0
8
3
4
The product colour and shape may vary depending on the model.
N
1
POWER IN
Connect the supplied power cord.
2
COMPONENT IN
Audio (AUDIO L/R) and video (Y/P
B
/P
R
) inputs for
Component.
3
LAN
Connect a LAN cable to this port to connect to the Network.
4
PC IN(PC) / AUDIO
Connect to the video and audio output jack on your PC.
5
EXT 1, EXT
Inputs or outputs for external devices, such as VCR, DVD,
video game device or video disc players.
Input/Output Specification
Connector
Input
Output
Video
Audio(L/R)
RGB
Video + Audio(L/R)
EXT 1
✔
✔
✔
Only TV or DTV output is
available.
EXT 2
✔
✔
Output you can choose.
6
DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio Component.
7
AUDIO OUT(AUDIO R/L)
Connect RCA audio signals from the TV to an external
source, such as Audio equipment.
8
SERVICE
− Connector for service.
9
HDMI IN 1, , 3
- No additional Audio connection is needed for an HDMI to
HDMI connection.
- When using an HDMI/DVI cable connection, you must
use the HDMI IN 2 jack.
What is HDMI?
-
High Definition Multimedia interface
allows the
transmission of high definition digital video data and
multiple channels of digital audio.
- The HDMI/DVI terminal supports DVI connection to
an extended device with the appropriate cable (not
supplied). The difference between HDMI and DVI is
that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature
installed, and supports multi - channel digital audio.
DVI IN(HDMI) AUDIO L/R
DVI audio outputs for external devices.
0
ANT IN
75Ω Coaxial connector for Aerial/Cable Network.
Supported modes for HDMI/DVI and Component
480i
480p
576i
576p 720p 1080i 1080p
HDMI/DVI 50Hz
X
X
X
O
O
O
O
HDMI/DVI 60Hz
X
O
X
X
O
O
O
Component
O
O
O
O
O
O
O
N
2
