13 ENGLISH

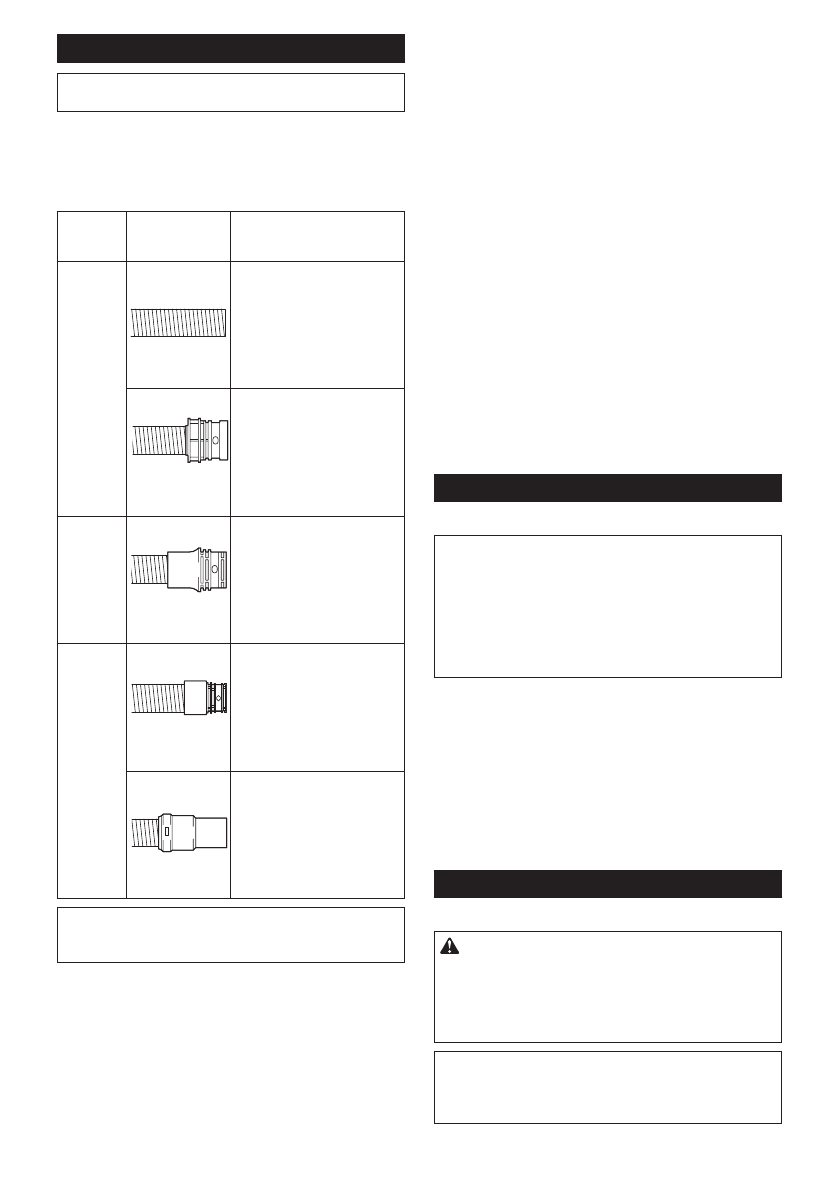

Connecting the tool

NOTE:



If the bent pipe assembly is attached to the

hose, remove it beforehand.

To connect a tool to the cleaner, the dedicated hose

and/or additional parts are required. Depending on your

cleaner model, you need to replace the hose and/or

prepare additional parts.

Refer to the following table for details.

Supplied

hose

diameter

Hose end type

Action

ø28 mm

without part

Attach the front cuff.

with snap-on part

Replace the hose end

(snap-on part) with the front

cuff.

The hose end can be removed

by turning it counterclockwise.

ø32 mm

with snap-on part

Replace the hose with the one

for dust extraction (ø28 mm,

with front cuff).

ø38 mm

with snap-on part

Replace the hose with the one

for dust extraction (ø28 mm,

with front cuff).

with front cuff 38

Attach the joint 22-38 or the

front cuff 24.

NOTE:

 Always use a suitable front cuff. When using

the front cuff 24, attach it to the front cuff 22 that is

connected to the hose.

►

Fig.20:



1.

 Front cuff 22

2.

 Front cuff 24

When using ø28 mm dust extraction

hose

1.



Attach the front cuff to the hose for dust extraction.

When connecting the front cuff, make sure that it is

securely screwed on the hose.

2.



Connect the front cuff to the tool's extraction

outlet.

►

Fig.21:



1.

 Front cuff

2.

 Extraction outlet

3.

 Hose

The front cuff can be detached by turning it counter-

clockwise while holding the hose.

When using ø38 mm hose with front

cuff 38

1.

  Twist and insert the joint or the front cuff to the

inlet part on the hose, depending on the tool that you

are going to connect.

2.



Connect the front cuff to the tool's extraction

outlet.

►

Fig.22:



1.

 Joint

2.

 Front cuff

3.

 Extraction outlet

4.

 Hose

To remove the joint and the front cuff, follow the installa

-

tion procedures in reverse.

Attaching bent pipe assembly

Optional accessory

NOTE:

 You don't need to perform this procedure

if your model comes with the bent pipe assembly

attached to the hose.

NOTE:

 There are two types of bent pipe assembly;

the one for slide-type extension wand and the one for

ring-type extension wand. If you prepare the bent pipe

assembly, choose the one for your desired extension

wand type.

The bent pipe assembly is used for connecting the

extension wand or nozzle for vacuum cleaning to this

product.

If you want to use this product as the vacuum cleaner,

attach the bent pipe assembly to the hose.
To attach, unscrew the front cuff from the hose and

fasten the sleeve of bent pipe assembly onto the hose.

To remove, loosen the sleeve of bent pipe assembly

from the hose.

►

Fig.23:



1.

 Hose

2.

 Bent pipe assembly

3.

 Sleeve

Installing filter bag / dust bag

Optional accessory

CAUTION:



Do not use a damaged filter bag.

Always use the vacuum cleaner with the filter bag

properly installed. Otherwise the vacuumed dust

or particles may be exhausted from the cleaner

and they may cause respiratory disease to the

operator.

NOTICE:

 When the filter bag is already full, replace

with new one. When the dust bag is already full,

empty it. Continuous use with the filter bag/dust bag

full results in reduced suction power.
