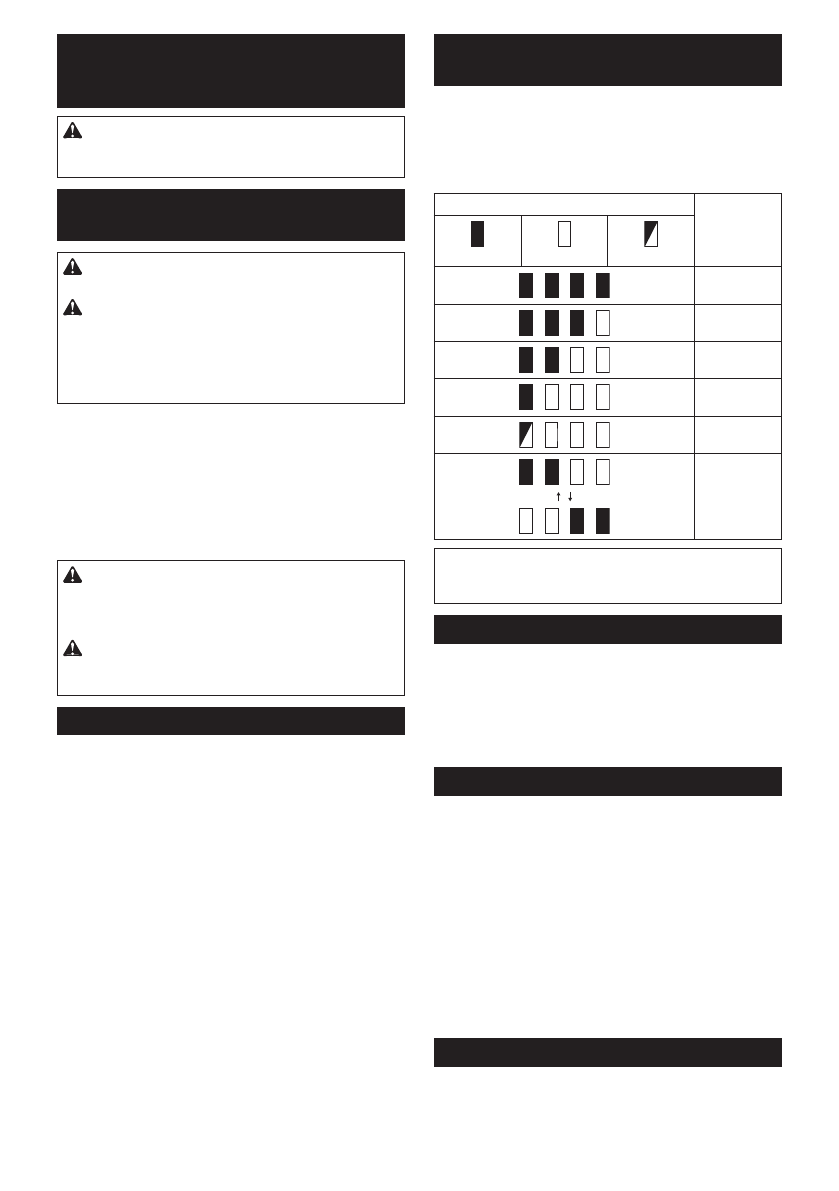

11 ENGLISH

FUNCTIONAL

DESCRIPTION

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before adjusting or checking function on the tool.

Installing or removing battery

cartridge

CAUTION:

Always switch off the tool before

installing or removing of the battery cartridge.

CAUTION:

Hold the tool and the battery car-

tridge firmly when installing or removing battery

cartridge.

 Failure to hold the tool and the battery

cartridge firmly may cause them to slip off your hands

and result in damage to the tool and battery cartridge

and a personal injury.

►

Fig.1:

1.

 Red indicator

2.

 Button

3.

 Battery cartridge

To remove the battery cartridge, slide it from the tool

while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Insert it all the way until it locks in place

with a little click. If you can see the red indicator on the

upper side of the button, it is not locked completely.

CAUTION:

Always install the battery cartridge

fully until the red indicator cannot be seen.

 If not,

it may accidentally fall out of the tool, causing injury to

you or someone around you.

CAUTION:

Do not install the battery cartridge

forcibly.

 If the cartridge does not slide in easily, it is

not being inserted correctly.

Tool / battery protection system

The tool is equipped with a tool/battery protection sys-

tem. This system automatically cuts off power to the

motor to extend tool and battery life. The tool will auto-

matically stop during operation if the tool or battery is

placed under one of the following conditions.

Overload protection

When the tool is operated in a manner that causes it to

draw an abnormally high current, the tool automatically

stops without any indication. In this situation, turn the

tool off and stop the application that caused the tool to

become overloaded. Then turn the tool on to restart.

Overheat protection

When the tool is overheated, the tool stops automatically.

Let the tool cool down before turning the tool on again.

Overdischarge protection

When the battery capacity becomes low, the tool stops

automatically. If the product does not operate even

when the switches are operated, remove the batteries

from the tool and charge the batteries.

Indicating the remaining battery

capacity

Only for battery cartridges with the indicator

►

Fig.2:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indi-

cate the remaining battery capacity. The indicator lamps

light up for a few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.

Switch box position

The switch box can be hooked on either side of the

lower belt. Arrange the cord so that the switch box

comes to your desired side. To prevent the cord from

being damaged, pass the cord through the hook as

illustrated.

►

Fig.3:

1.

 Hook

2.

 Cord

Adjusting belts

The tightness of the shoulder belts, upper and lower

belts can be adjusted. Put your arms through the shoul

-

der belts first then fasten the lower and upper belts.

To tighten, pull the end of the strap as illustrated. To

loosen, pull up the end of the fastener.

Lower belt

►

Fig.4:

1.

 Strap

2.

 Fastener

Shoulder belts

►

Fig.5:

1.

 Strap

2.

 Fastener

Upper belt

►

Fig.6:

1.

 Strap

2.

 Fastener

Carrying hook

Always grab the carrying hook when handling the vac-

uum cleaner body.

►

Fig.7:

1.

 Carrying hook
