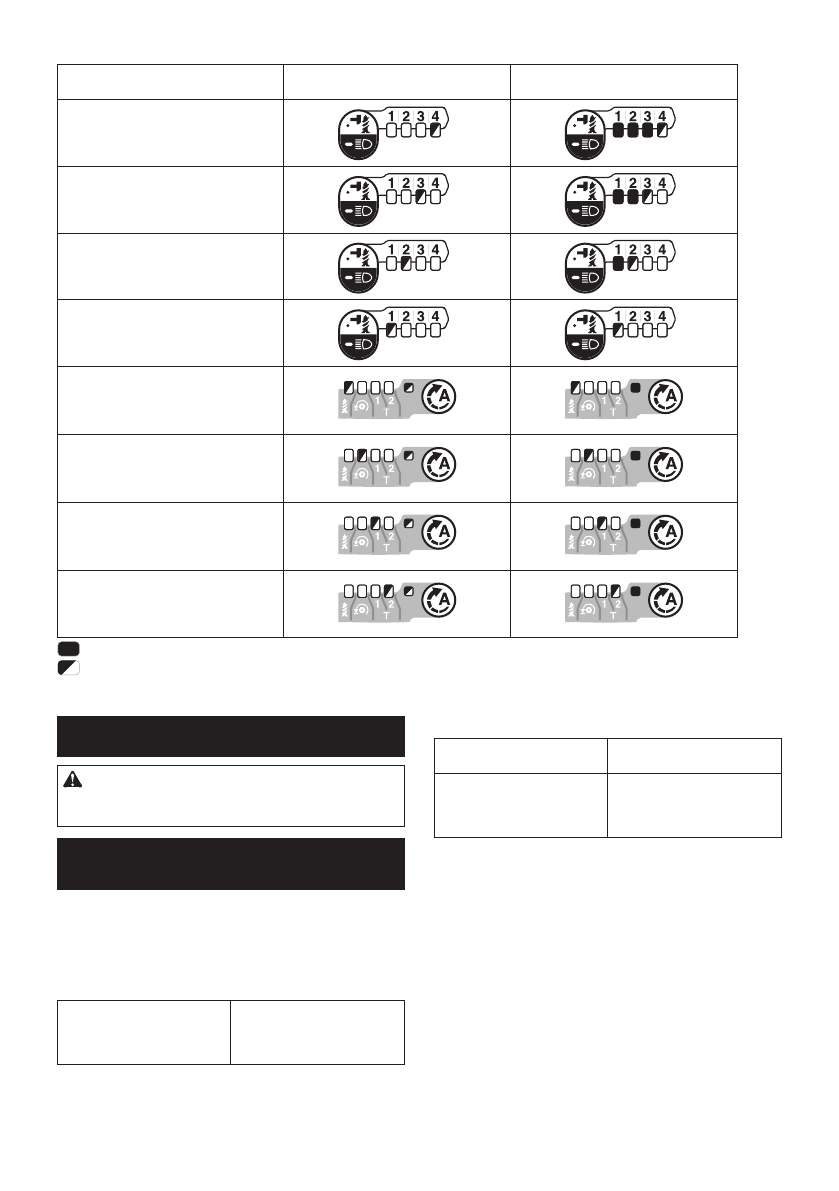

Indication patterns

Application mode

While registering the application mode When the registered application mode

turns on

4 (Max)

3 (Hard)

2 (Medium)

1 (Soft)

Wood mode

Bolt mode

T mode (1)

T mode (2)

: The lamp is on.

: The lamp is blinking.

ASSEMBLY

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before carrying out any work on the tool.

Installing or removing driver bit/

socket bit

►

Fig.12

Use only driver bit/socket bit that has inserting portion

shown in the figure. Do not use any other driver bit/

socket bit.

For tool with shallow driver bit hole

A=12mm

B=9mm

Use only these type of driver

bit. Follow the procedure

1. (Note) Bit-piece is not

necessary.

For tool with deep driver bit hole

A=17mm

B=14mm

To install these types of driver

bits, follow the procedure 1.

A=12mm

B=9mm

To install these types of driver

bits, follow the procedure 2.

(Note) Bit-piece is necessary

for installing the bit.

Procedure 1

For tool without one-touch type sleeve

►

Fig.13:

1.

 Driver bit

2.

 Sleeve

To install the driver bit, pull the sleeve in the direction of

the arrow and insert the driver bit into the sleeve as far

as it will go.

Then release the sleeve to secure the driver bit.

For tool with one-touch type sleeve

To install the driver bit, insert the driver bit into the

sleeve as far as it will go.
