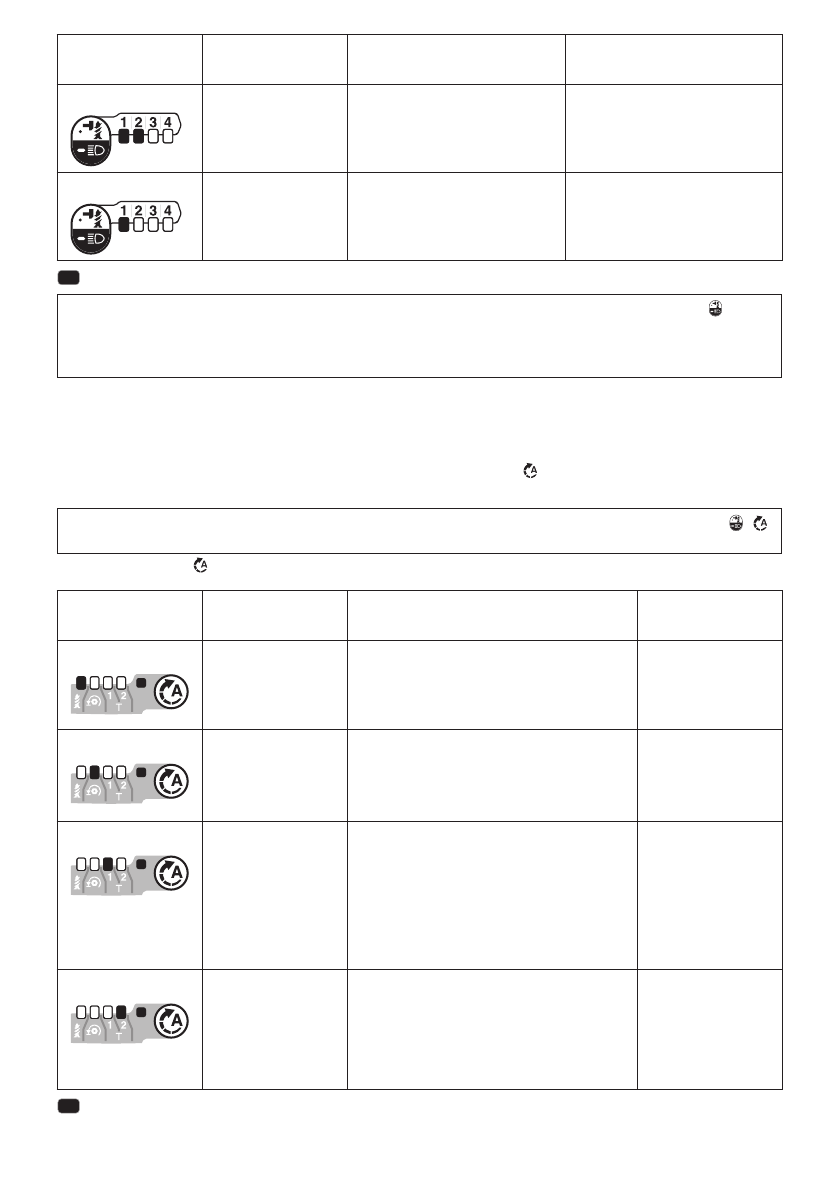

11 ENGLISH

Application mode

(Impact force grade

displayed on panel)

Maximum blows

Purpose

Example of application

2 (Medium)

2,600 min

-1

 (/min)

Tightening when a good finishing is

needed.

Driving screws to finishing boards or

plaster boards.

1 (Soft)

1,100 min

-1

 (/min)

Tightening with less force to avoid

screw thread breakage.

Tightening sash screws or small

screws such as M6.

: The lamp is on.

NOTE:

 When none of the lamp on the panel is lit, pull the switch trigger once before pressing the button   or the

quick mode-switching button.

NOTE:

 All lamps on the switch panel go out when the tool is turned off to save the battery power. The impact force

grade can be checked by pulling the switch trigger to the extent that the tool does not operate.

Changing assist type

This tool employs assist function that offers several easy-to-use application modes for driving screws with good

control.

The type of the application mode changes every time you press the button

.

You can change the assist type within approximately one minute after releasing the switch trigger.

NOTE:

 You can extend the time to change the assist type approximately one minute if you press the button

,

,

or the quick mode-switching button.

►

Fig.10:

1.

 Button

Application mode

(Assist type displayed

on panel)

Maximum blows

Feature

Purpose

Wood mode *

3,800 min

-1

 (/min)

This mode helps to prevent a screw from falling at

the beginning of driving. The tool drives a screw

with low-speed rotation at first. After the tool starts

to impact, the rotation speed increases and reaches

the maximum speed.

Tightening long screws.

Bolt mode

3,800 min

-1

 (/min)

This mode helps to prevent a bolt from falling off.

When loosening a bolt with the tool driving in coun-

terclockwise rotation, the tool automatically stops

after the bolt/nut gets enough loosened. The stroke

of the switch trigger to reach maximum speed will

become short in this mode.

Loosening bolts.

T mode (1) *

–

(The tool stops rotating

soon after impact starts.)

This mode helps to prevent the screws from

over-tightening. It also accomplishes quick oper-

ation and good finish at the same time. The tool

drives a screw with high-speed rotation and stops

soon after the tool starts to impact.

NOTE:

The timing to stop the driving varies depending

on the type of the screw and material to be

driven. Make a test driving before using this

mode.

Driving self-drilling

screws to a thin metal

plate with good finish.

T mode (2) *

2,600 min

-1

 (/min)

This mode helps to prevent the screws from

breakage and stripping. It also accomplishes quick

operation and good finish at the same time. The tool

drives a screw with high-speed rotation and slows

down the rotation when the tool starts to impact.

NOTE:

Release the switch trigger as soon as the tight-

ening finished to avoid overtightening.

Driving self-drilling

screws to a thick metal

plate with good finish.

: The lamp is on.

*

When the tool rotates counterclockwise, it rotates same as the 4 (max) mode, 3,800 min

-1

 (/min).
