10 ENGLISH

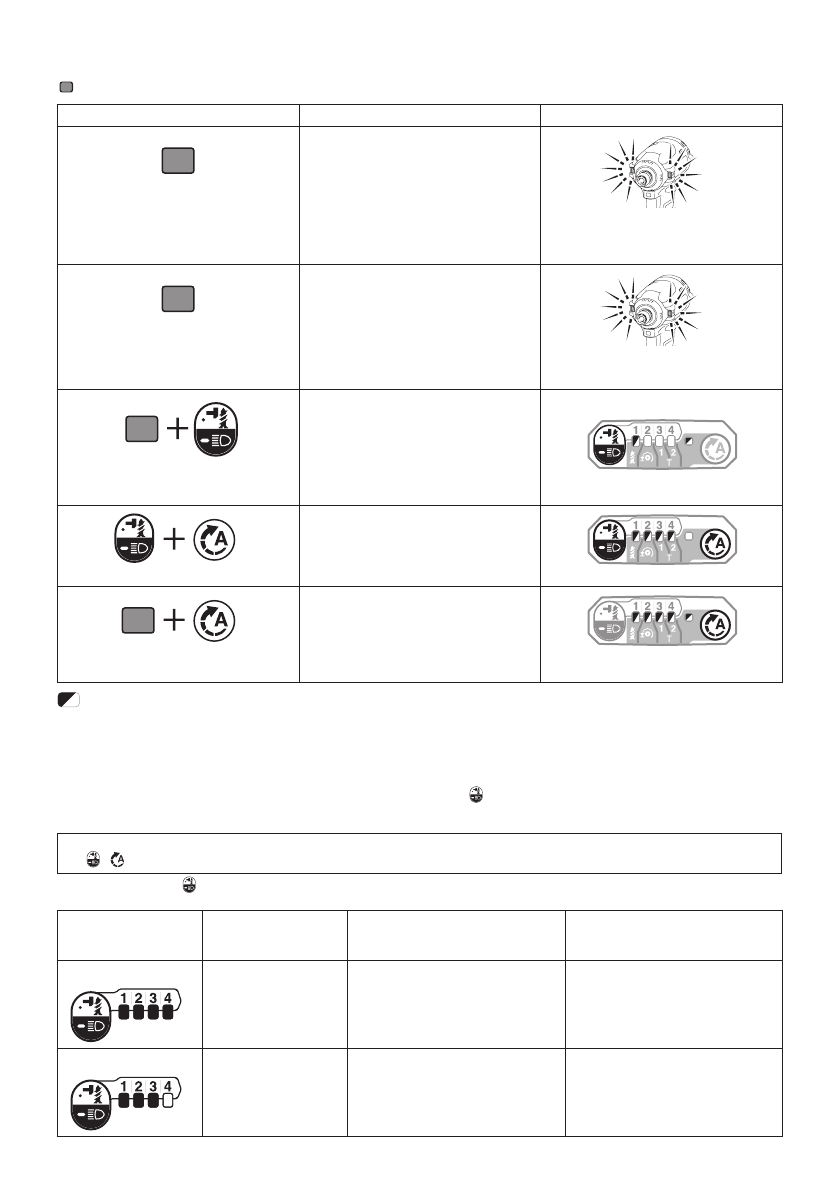

Quick reference

The following table shows the functions of the quick mode-switching button.

 indicates the quick mode-switching button.

Button(s) / Purpose

Action

How to confirm

(When quick mode-switching function

is OFF)

Changing the impact force by the quick

mode-switching button

Press

The front lamps on the tool flash once.

(When quick mode-switching function

is ON)

Switching to the registered application

mode

Press

The front lamps on the tool flash once.

Registering the application mode

Press and hold (each button)

Example: Wood mode is registered

The lamp of desired application mode

blinks.

Erasing the registered application mode

Press and hold (each button)

All impact force grade lamps blink.

Disabling/resuming the quick

mode-switching button

Press and hold (each button)

All lamps on the panel blink.

: The lamp is blinking.

Changing the impact force

You can change the impact force in four steps: 4 (max), 3 (hard), 2 (medium), and 1 (soft).

This allows a tightening suitable to the work.

The level of impact force changes every time you press the button

 or the quick mode-switching button.

You can change the impact force within approximately one minute after releasing the switch trigger.

NOTE:

 You can extend the time to change the impact force approximately one minute if you press the but

-

ton  ,

, or the quick mode-switching button.

►

Fig.9:

1.

 Button

Application mode

(Impact force grade

displayed on panel)

Maximum blows

Purpose

Example of application

4 (Max)

3,800 min

-1

 (/min)

Tightening with the maximum force

and speed.

Driving screws to underwork materi-

als, tightening long screws or bolts.

3 (Hard)

3,600 min

-1

 (/min)

Tightening with less force and speed

than Max mode (easier to control than

Max mode).

Driving screws to underwork materi-

als, tightening bolts.
