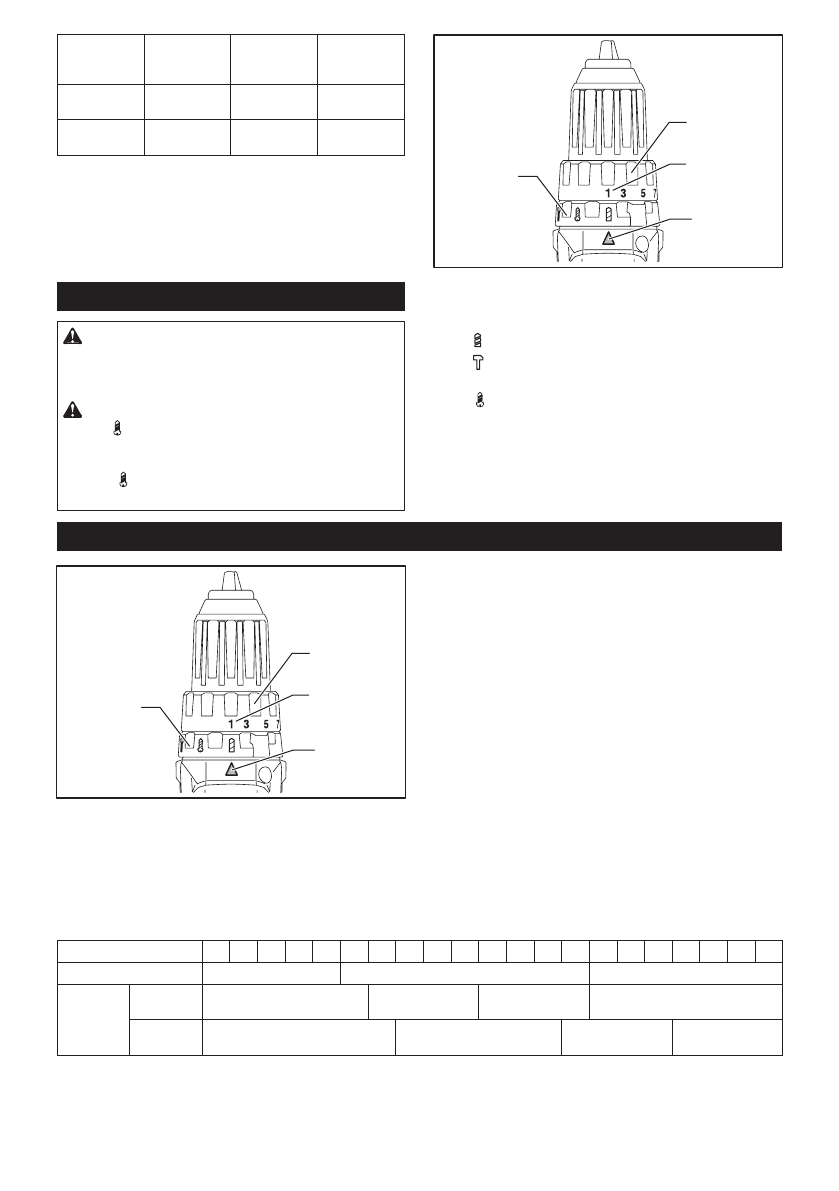

ENGLISH

Position of

speed

change lever

Speed

Torque

Applicable

operation

1

Low

High

Heavy load-

ing operation

2

High

Low

Light loading

operation

To change the speed, switch off the tool first. Select

the "2" side for high speed or "1" for low speed but high

torque. Be sure that the speed change lever is set to the

correct position before operation.

If the tool speed is coming down extremely during the

operation with "2", slide the lever to the "1" and restart

the operation.

Selecting the action mode

CAUTION:

Always set the ring correctly to

your desired mode mark. If you operate the tool

with the ring positioned halfway between the

mode marks, the tool may be damaged.

CAUTION:

When you change the position

from "

" to other modes, it may be a little dif-

ficulty to slide the action mode changing ring. In

this case, switch on and run the tool for a second

at the "

" position, then stop the tool and slide

the ring to your desired position.

1

2

3

4

1. Action mode changing ring    2. Adjusting ring

3. Graduation    4. Arrow

This tool has three action modes.
•

 Drilling mode (rotation only)

•

 Hammer drilling mode (rotation with

hammering)

•

 Screwdriving mode (rotation with clutch)

Select one mode suitable for your work. Turn the

action mode changing ring and align the mark that you

selected with the arrow on the tool body.

Adjusting the fastening torque

1

2

3

4

1. Action mode changing ring    2. Adjusting ring

3. Graduation    4. Arrow

The fastening torque can be adjusted in 21 steps by turning the adjusting ring. Align the graduations with the arrow

on the tool body. You can get the minimum fastening torque at 1 and maximum torque at 21.

Before actual operation, drive a trial screw into your material or a piece of duplicate material to determine which

torque level is required for a particular application. The following shows the rough guide of the relationship between

the screw size and graduation.

Graduation

1

2

3

4

5

6

7

8

9

10 11 12 13 14 15 16 17 18 19 20 21

Machine screw

M4

M5

M6

Wood

screw

Soft wood

(e.g. pine)

–

ɸ

3.5 x 22

ɸ

4.1x 38

–

Hard wood

(e.g. lauan)

–

ɸ

3.5 x 22

ɸ

4.1x 38

–
