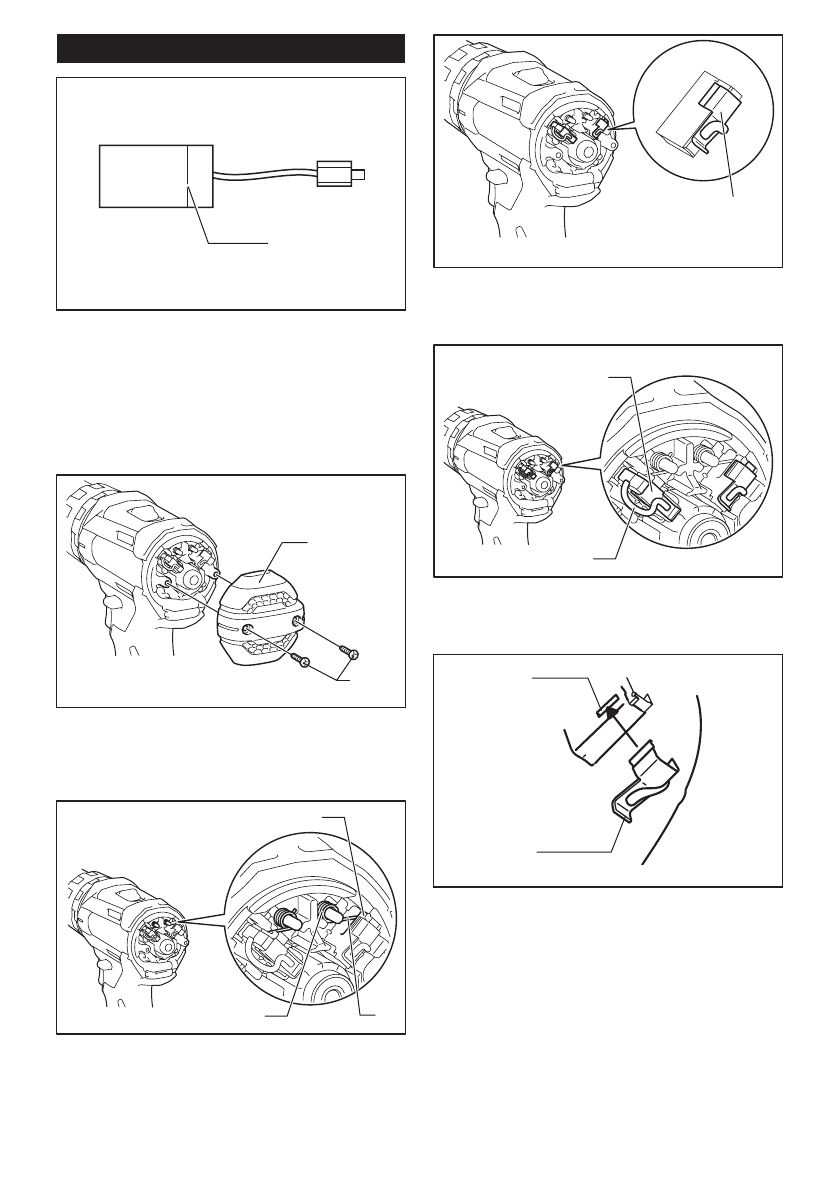

Replacing carbon brushes

1

1. Limit mark

Check the carbon brushes regularly.

Replace them when they wear down to the limit mark.

Keep the carbon brushes clean and free to slip in the

holders. Both carbon brushes should be replaced at the

same time. Use only identical carbon brushes.

1.

Use a screwdriver to remove two screws then

remove the rear cover.

1

2

1. Rear cover   2. Screw

2.

Raise the arm part of the spring and then place

it in the recessed part of the housing with a slotted bit

screwdriver of slender shaft or the like.

1

2

3

1. Recessed part    2. Spring    3. Arm

3.

Use pliers to remove the carbon brush caps of

the carbon brushes. Take out the worn carbon brushes,

insert the new ones and replace the carbon brush caps

in reverse.

1

1. Carbon brush cap

4.

Make sure to place the lead wire in opposite side

of the arm.

2

1

1. Lead wire    2. Carbon brush cap

5.

  Make sure that the carbon brush caps have fit into

the holes in brush holders securely.

1

2

1. Hole    2. Carbon brush cap

6.

Reinstall the rear cover and tighten two screws

securely.

7.

  Insert the battery cartridge into the tool and break in

brushes by running tool with no load for about 1 minute.

8.

Check the tool while running and electric brake

operation when releasing the switch trigger. If electric

brake is not working well, ask Makita Authorized or

Factory Service Centers for repair.
To maintain product SAFETY and RELIABILITY,

repairs, any other maintenance or adjustment should

be performed by Makita Authorized or Factory Service

Centers, always using Makita replacement parts.
