GA-MA770T-UD3/US3 Motherboard
- 84 -
5-2
Configuring Audio Input and Output
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio

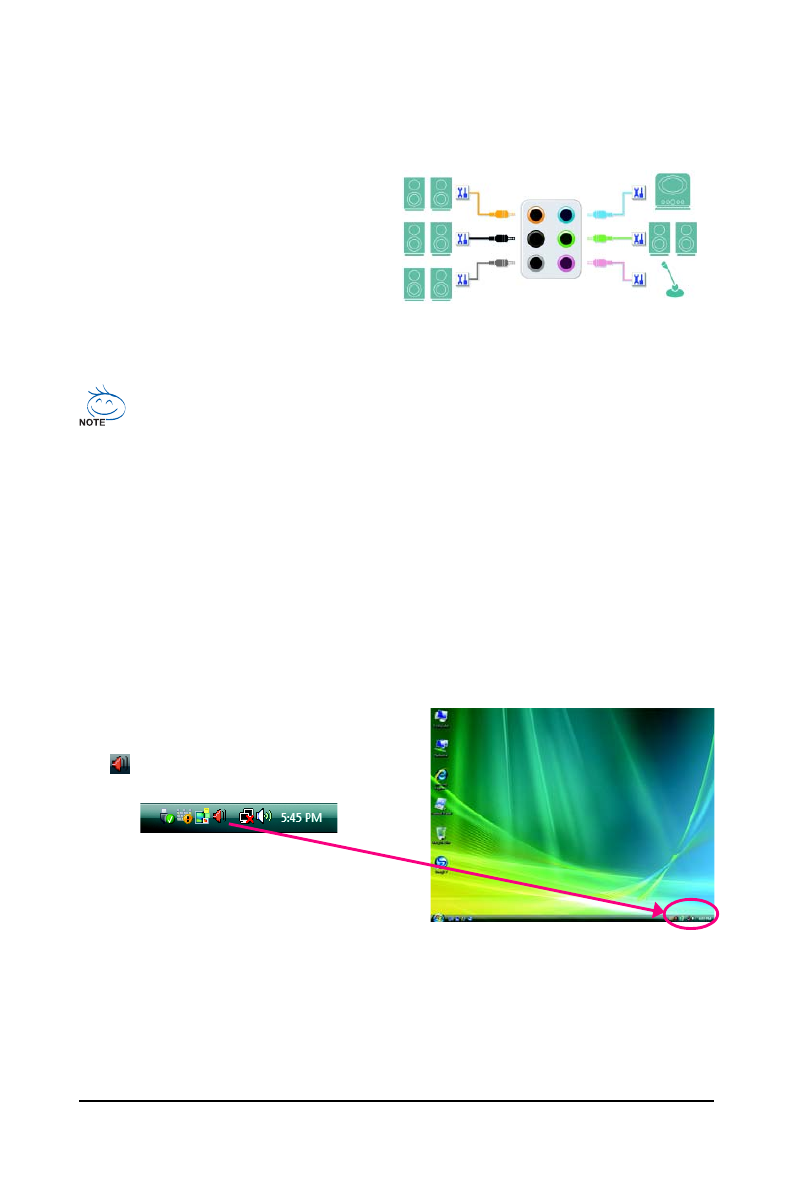

The motherboard provides six audio jacks on the
back panel which support 2/4/5.1/7.1-channel audio.
The picture to the right shows the default audio
jack assignments. The integrated HD (High Definition)
a u d i o p r o v i d e s j a c k r e t a s k i n g c a p a b i l i t y t h a t
allows the user to change the function for each
jack through the audio driver. For example, in a
4-channel audio configuration, if a Rear speaker is plugged into the default Center/Subwoofer speaker
out jack, you can retask the Center/Subwoofer speaker out jack to be Rear speaker out.
High Definition Audio (HD Audio)
HD Audio includes multiple high quality digital-to-analog converters (DACs) that support 44.1KHz/
48KHz/ 96KHz/192KHz sampling rate. HD Audio features multistreaming capabilities that allow multiple
audio streams (in and out) to be simultaneously processed. For example, users can listen to MP3
music, have an Internet chat, make a telephone call over the Internet, and etc. all at the same time.
A. Configuring Speakers:
(The following instructions use Windows Vista as the example operating system.)
•
To install a microphone, connect your microphone to the Mic in jack and manually configure
the jack for microphone functionality.
•
Audio signals will be present on both of the front and back panel audio connections simultaneously.
If you want to mute the back panel audio (only supported when using an HD front panel audio
module), refer to instructions on the next page.
Step 1:
After installing the audio driver, the HD Audio Manager
icon
will appear in the notification area. Double-
click the icon to access the HD Audio Manager.
(Note) 2/4/5.1/7.1-Channel Audio Configurations:
Refer to the following for multi-channel speaker configurations.
•
2-channel audio: Headphone or Line out.
•
4-channel audio: Front speaker out and Rear speaker out.
•
5.1-channel audio: Front speaker out, Rear speaker out, and Center/Subwoofer speaker out.
•
7.1-channel audio: Front speaker out, Rear speaker out, Center/Subwoofer speaker out, and Side speaker out.
Rear Speaker Out
Center/Subwoofer
Speaker Out
Side Speaker Out
Line In
Front Speaker Out
Mic In
