6

Installation/Connection

Connection

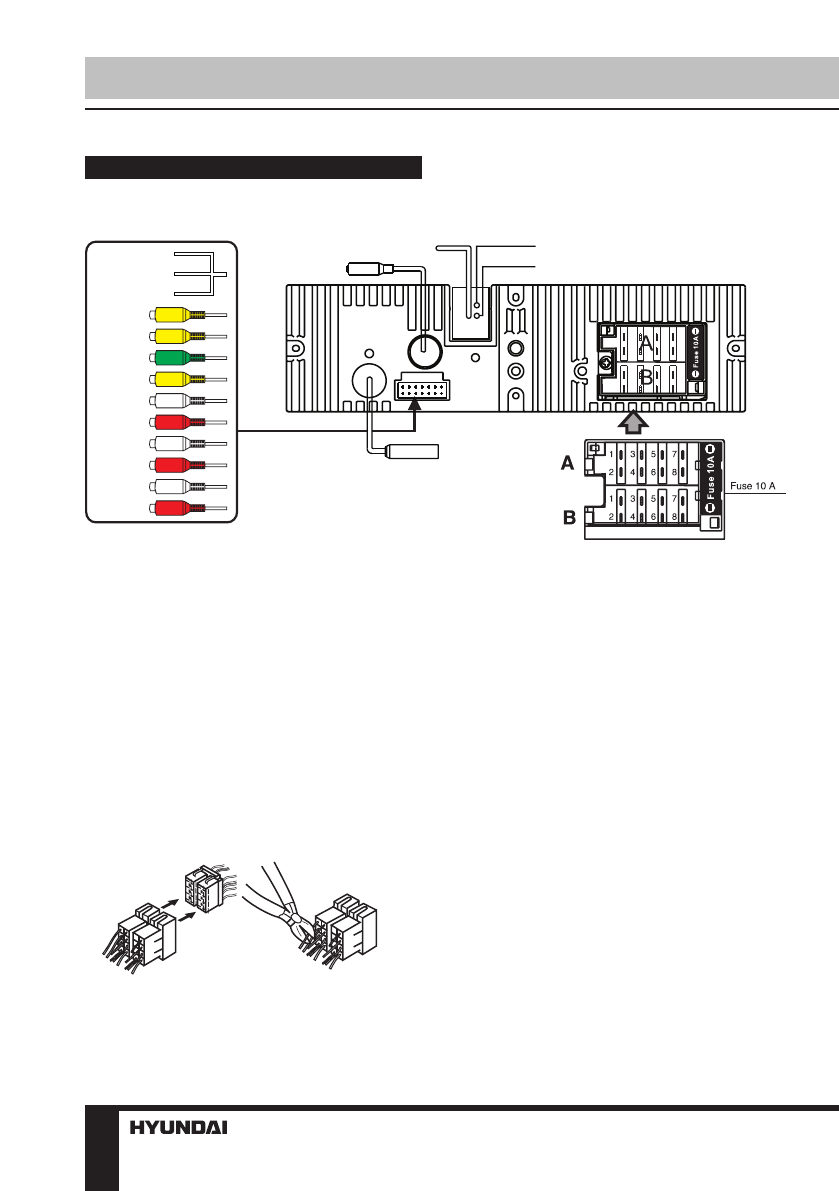

Connection diagram

VIDEO OUT

BACK CAM

SUB OUT

AUX IN

(

L

)

AUX IN

(

R

)

RCA OUT

(

F L

)

RCA OUT

(

R L

)

RCA OUT

(

F R

)

RCA OUT

(

R R

)

AUX VIDEO

Radio Antenna

TV Antenna

SWC 1(BROWN)

SWC 2A(WHITE)
SWC 2B(GREY)

Connector B

1. -

2. -

3. -

4. Battery 12V (+)/Yellow

5. Antenna power/Blue-White

6. Panel light/Orange-White

7. ACC+/Red

8. Ground/Black

Connector A

1. Rear right speaker(+)/Purple

2.

3. Front right speaker(+)/Grey

4.

5. Front left speaker(+)/White

6.

7.

8.

Rear right speaker(-)/Purple-Black

Front right speaker(-)/Grey-Black

Front left speaker(-)/White-Black

Rear left speaker(+)/Green

Rear left speaker(-)/Green-Black

HDMI

Reverse(purple-white)

Parking (green)

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
