5

Installation/Connection

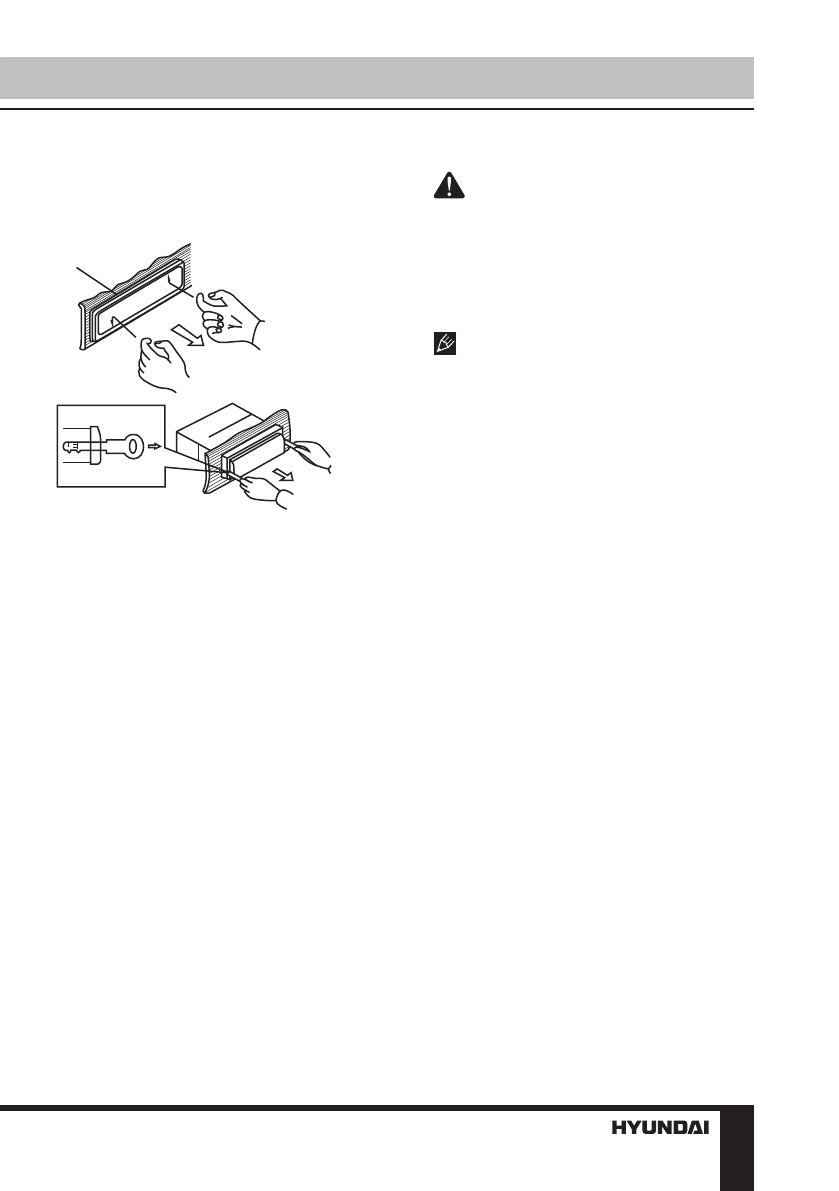

Dismantling the unit

a – Trim frame
b – Frame uninstall direction
c – Release key insertion

в

б

а

1.

Switch off the unit and detach the front panel.

2. Insert your fingers into the groove in the

front side of the trim frame (apply some effort to
detach the frame). Pull the frame to detach it.

3. Insert the supplied release keys into the

both sides of the unit body to click, as shown
in the picture. To extract the unit from the
dashboard, pull the release keys or the unit body
to pull it out. Before detaching the unit, ensure it
is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit

body and push it to fix it in place. This should
be done before installing the front panel;
otherwise you are not able to install the trim
frame. When the trim frame being installed,
the side with the groove should face down and
fixed first.

Detachable control panel

Insert the right lockers on the receiver into

the right grooves of the panel, and then press
on the left part of the panel until a click. Ensure
the panel is fixed properly.

To detach the front panel, press RELEASE

button. Detach the right part of the panel from

the locker.

 The control panel can be easily

damaged by shocks. After removing it, place
it in a protective case and be careful not to
drop it or subject it to strong shocks. The rear
connector that connects the main unit and the
control panel is an extremely important part. Be
careful not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.

  If the control panel is dirty, wipe off the

dirt with soft, dry cloth only. And use a cotton
swab soaked in isopropyl alcohol to clean the
socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in

the included protective case when not in used
and carried away when you leave the vehicle
to deter theft.

Switch off the power of the unit. Detach the

front panel, then put it to the protective case
and take it with you.
